Polishing cloths, self-adhesive voor perfecte metallografische preparatie

Contacteer ons Offerte-aanvraag

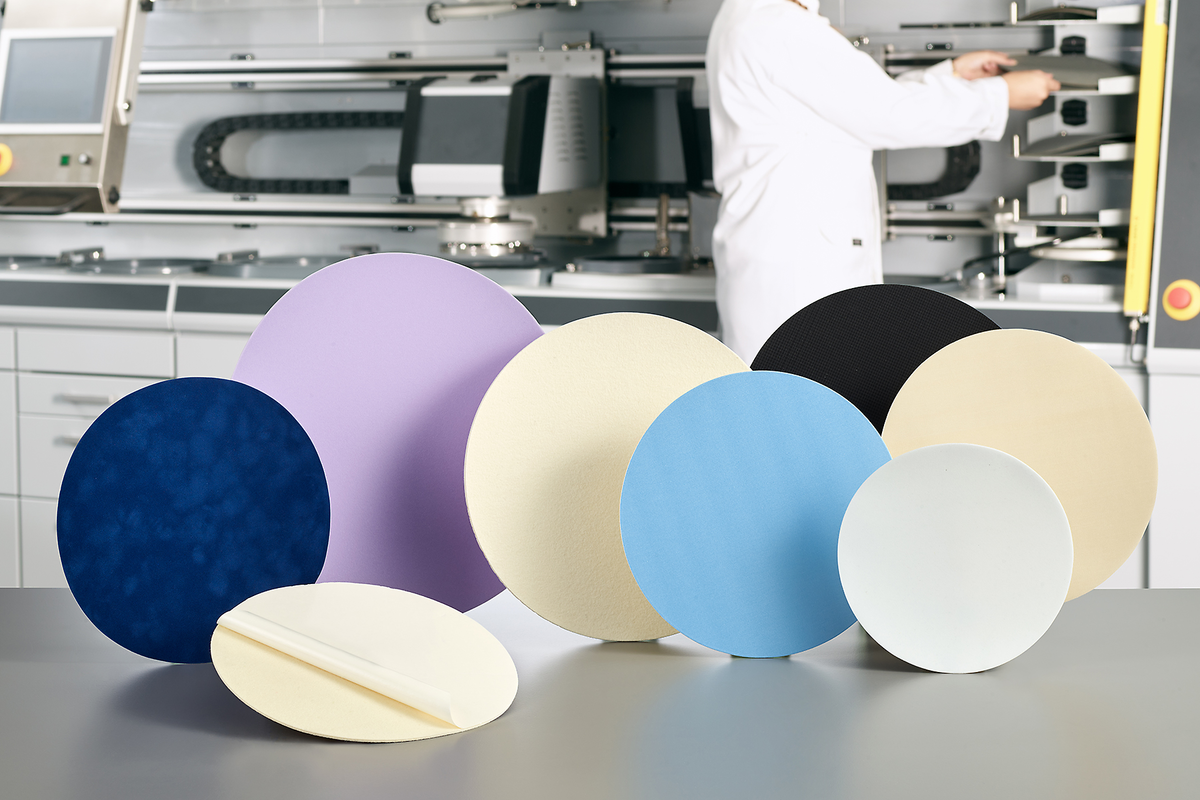

QPREP polishing cloths offer the right cloth material for all materials and analysis purposes.

Productvoordelen

Ideal for polishing in combination with the media carrier for the fully automatic Qpol 250 BOT as well as with the X-Tap system
Optimized adhesive backing ensures uniform fixing over the entire surface on the fixation system and realized no slipping or detachment of the polishing cloth
available diameters: 200 / 250 / 300 / 350 mm

Aanbevolen toepassingen

For use with X-Tap system
For use with media carrier plate (Qpol 250 BOT)

Alpha - Polishing cloth

Suitable for pre-polishing
Very hard, perforated chemical fiber cloth
For ceramics, hard metal, steel, grey cast iron, aluminum
High lifetime and stock removal
For use with diamond grain size: 15 / 9 µm
Fixation system: X-Tap

Bestelgegevens

Beta - Polishing cloth

Suitable for pre-polishing
Hard synthetic cloth
Materials with high hardness, steel, grey cast iron, hard metal, ceramics
For use with diamond grain size: 15 / 9 / 6 µm
Fixation system: X-Tap

Bestelgegevens

DELTA- Polishing cloth

Suitable for pre- & intermediate polishing
Medium hard silk cloth
C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
For use with diamond grain size: 9 / 6 / 3 µm
Fixation system: X-Tap

Bestelgegevens

Gamma - Polishing cloth

Suitable for pre- & intermediate polishing
Medium hard silk cloth
C-steels, precious metal, coatings, plastics [CFK, GFK]
For use with diamond grain size: 9 / 6 / 3 µm
Fixation system: X-Tap

Bestelgegevens

PHI - Polishing cloth

Suitable for pre-, intermediate-, and end polishing
Medium hard chemical fiber cloth
For iron, non – ferrous metals, minerals, ceramics, composite materials
For use with diamond grain size: 9 / 6 / 3 / 1 µm
Fixation system: X-Tap

Bestelgegevens

SIGMA - Polishing cloth

Suitable for intermediate and end polishing
Soft wool cloth
For all materials
For use with diamond grain size: 6 / 3 / 1 µm
Fixation system: X-Tap

Bestelgegevens

Eta - Polishing cloth

Suitable for end polishing
Short flocked, medium hard synthetic cloth
For all materials of medium and high hardness
For use with diamond grain size: 3 / 1 µm
Fixation system: X-Tap

Bestelgegevens

Iota - Polishing cloth

Suitable for end polishing as well as fine polishing with fine polishing suspension
Long flocked, soft synthetic cloth
For all materials, especially hard materials
For use with diamond grain size: 3 / 1 µm
Suitable for oxide suspensions
Fixation system: X-Tap

Bestelgegevens

Zeta - Polishing cloth

Suitable for end polishing as well as fine polishing with fine polishing suspension
Short flocked, soft synthetic cloth
For all materials
For use with diamond grain size: 3 / 1 µm
Suitable for oxide suspensions as well as alumina
Fixation system: X-Tap

Bestelgegevens

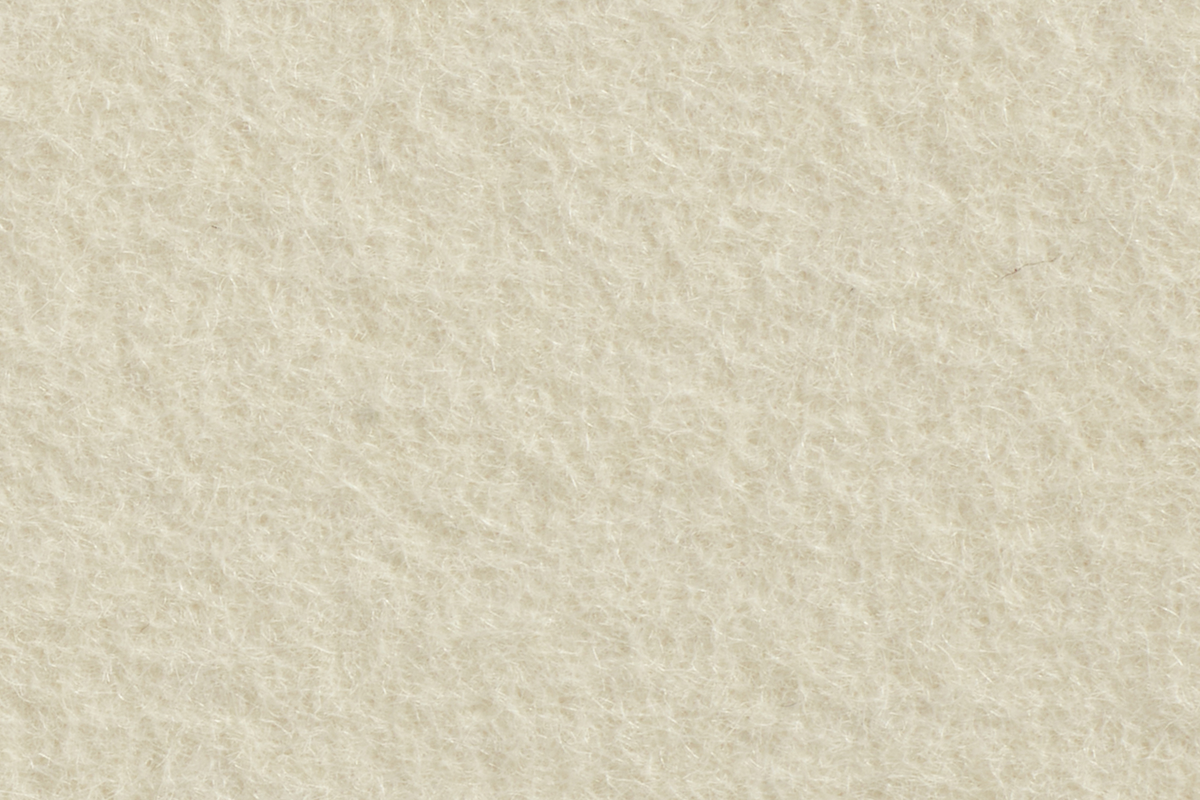

Kappa - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Soft polishing felt
For all materials
Suitable for oxide suspensions
Fixation system: X-Tap

Bestelgegevens

Omega - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Soft synthetic cloth (chemical resistant)
For all materials
Suitable for oxide suspensions
Fixation system: X-Tap

Bestelgegevens

Lambda - Polishing cloth

Suitable for fine polishing with fine polishing suspension
Brushed, structured synthetic cloth (chemical resistant)
For all materials
Suitable for oxide suspensions as well as alumina
Fixation system: X-Tap

Bestelgegevens

Perfect polishing - Instruments by QATM

Polishing is more reliable, safer and more efficient when performed with the right equipment: Knowledge, exercising care and the right choice of consumables and equipment are crucial.

Discover our polisher

Kennis-databank

Wilt u meer weten over de verschillende procedures, bezoek dan onze uitgebreide Knowledge Base.

Our Knowledge Base article about polishing includes:

Metallographic polishing in 3 steps
Metallographic diamond polishing
Metallographic oxide polishing
Tips and tricks for metallographic grinding and polishing

Kennis-databank

.

QATM Producten & Contact

QATM offers a wide range of innovative machines for metallographic sample preparation. Accompanying QATM accessories and consumables are thoroughly tested and selected for perfect interaction with our machines. Contact us for a consultation, quote or to talk to one of our dedicated application specialists!

The Basics of Metallography - Producten overzicht

Metallographic Machines

Verbruiksartikelen

Voorbereidingsmethodes

Contacteer ons!

_{Onder voorbehoud van technische wijzigingen en eventuele fouten}
