Premium doorslijpschijven voor perfecte metallografische preparatie

Significant properties for cut-off wheels are wear (i.e., abrasion resistance), long lifetime and cutting performance. Characteristics of the wheel composition are the abrasive used (aluminum oxide, silicon carbide, diamond, cubic boron nitride (CBN)) and the bond type (metal, resin or rubber). The goal of any cut is to separate the material with minimal deformation and temperature effect. For a clean cut, the abrasive particles and bond type of the cut-off wheel should be matched to the material being cut.

QPREP Premium cut-off wheels offer the optimal solution for a wide range of applications.

• Achieve a fine cutting surface
• Wide range of cut-off wheels for cutting all materials
• The best cutting function fitting to the material
• Low deformation and temperature during the cutting process
• Very good cutting performance with long lifetime

The color coding of the premium cut-off wheels enables quick, visual assignment and identification of the several types.

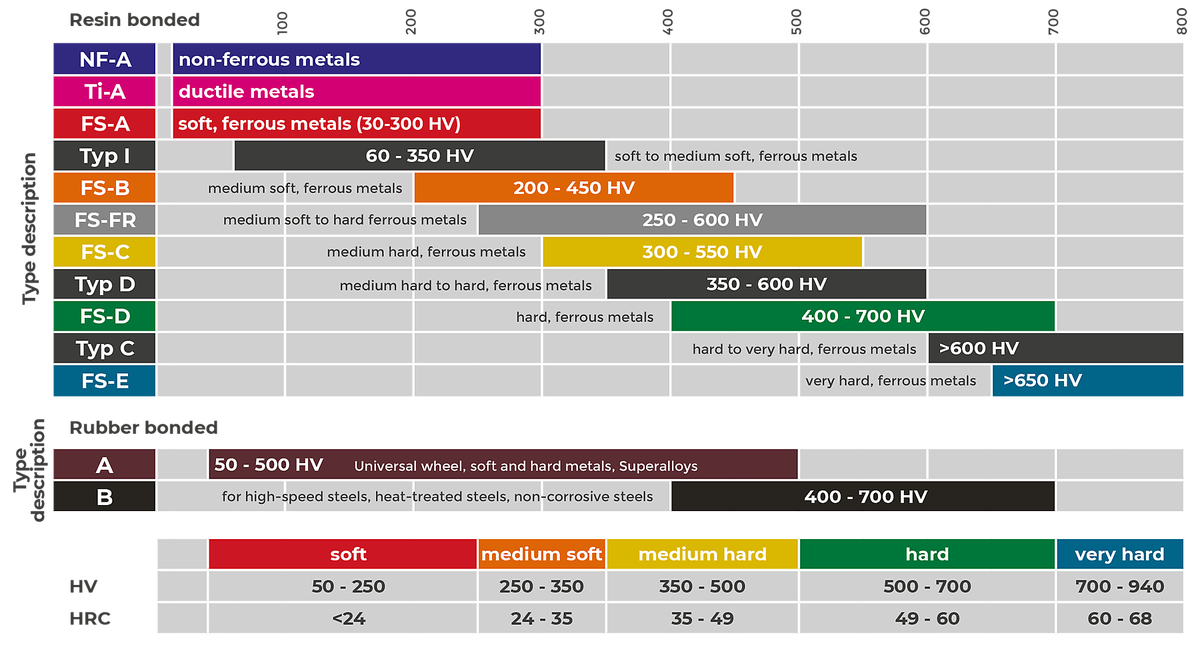

Cut-off wheel selection according to material hardness

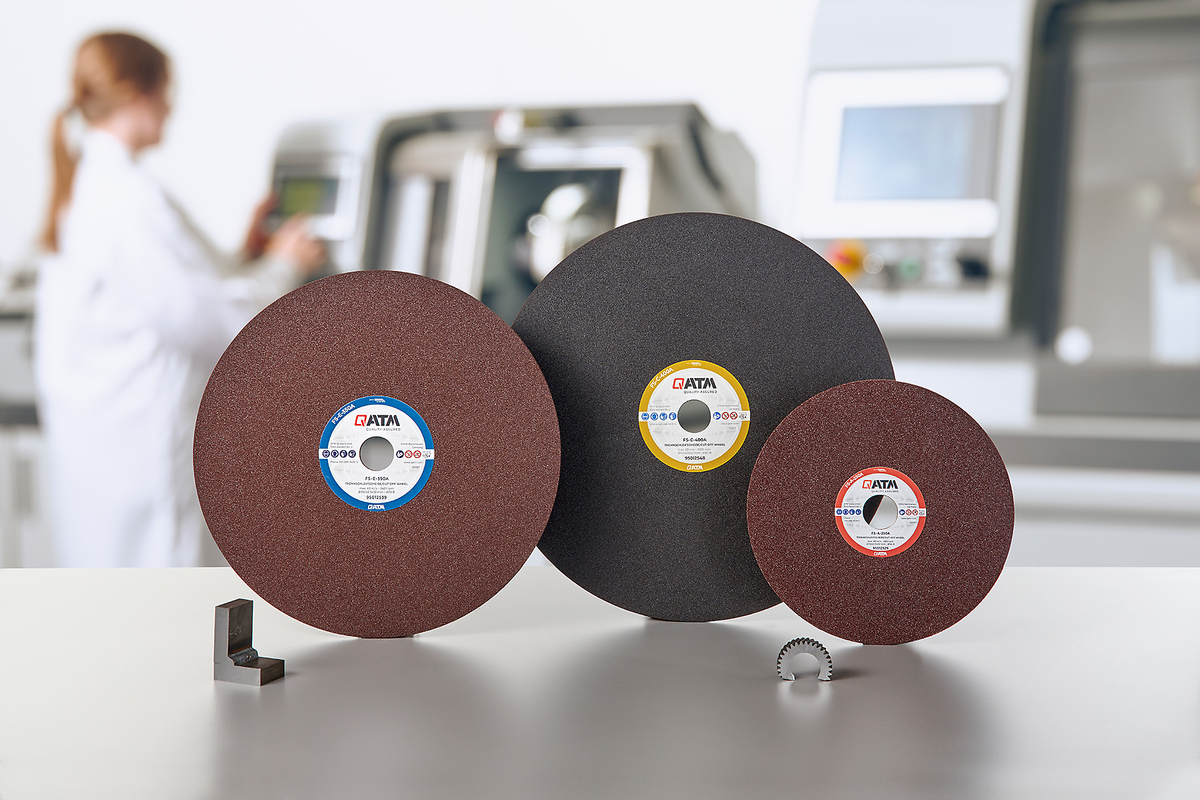

Premium aluminiumoxide doorslijpschijf Bond: resin

QPREP Premium Aluminum oxide cut-off wheels cover a wide range of materials from 30 HV to >650 HV.

Productvoordelen

• Wide range of application for various materials with different hardness’s
• Long lifetime as well as low wear of the cut-off wheel
• Premium abrasive particles enable the finest cutting surfaces, which shortens the following grinding steps
• The synthetic resin bond allows dull abrasive particles to break out evenly during the cutting process

Aanbevolen toepassingen

• Cutting of all materials
• Cutting of polymers with the hard-bonded cut-off wheel FS-A
• FS-FR low-wear cut-off wheel in the 250 to 600 HV range, especially suitable for manual cutting
• Cutting of very hard steels with the soft-bonded cut-off wheel FS-E

Premium aluminiumoxide doorslijpschijf Bond: rubber

QPREP Premium Aluminum oxide cut-off wheels with rubber bonds cover a wide range of materials from 50 HV to 700 HV and are suitable for soft and hard metals, superalloys (Type A) or high-speed steels, heat-treated steels and non-corrosive steels (Type B)

Aanbevolen toepassingen

• Type A: 50- 500 HV
• Type B: 400- 700 HV

Premium CBN doorslijpschijf Bond: bronze

QPREP Premium CBN cut-off wheels made of cubic boron nitride provide a fine cutting surface for nickel and cobaltbased alloys. The high hardness as well as the high ductility of the CBN particles improve the cutting ability of the cut-off wheel with significantly less wear. The CBN abrasives in these discs maintain cutting performance over a longer period, which improves the cutting ability of the cut-off wheels.

Productvoordelen

• The good thermal conductivity of CBN abrasives can dissipate heat generated during cutting much more effectively
• Long lifetime as well as low wear of the cut-off wheel
• The dressing function ensures that the CBN particles always maintain the highest cutting performance

Aanbevolen toepassingen

• For the cutting of composite materials
• For cutting very hard steels

Kennis-databank

Wilt u meer weten over de verschillende procedures, bezoek dan onze uitgebreide Knowledge Base.

Ons Knowledge Base artikel over doorslijpen bevat:

• Typische methoden om materialen te prepareren
• De verschillende metallografische sectietechnieken
• Hoe een geschikte doorslijpschijf te kiezen
