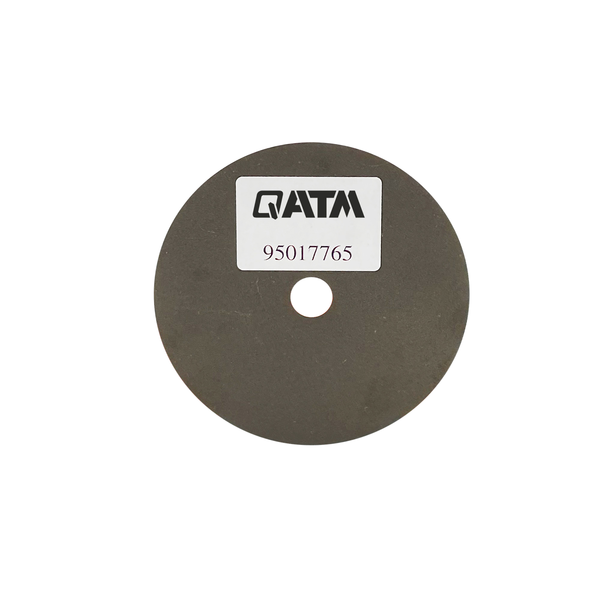

Silicon carbide precision cut-off wheels

• for non-ferrous metals

Ø

Thickness

Arbor Size

Bond

95017765

100 mm

0.5 mm

12.7 mm

Resin

5 pcs

Cutting

Precision cut-off wheels

Silicon carbide

100 mm

0.5 mm

Resin

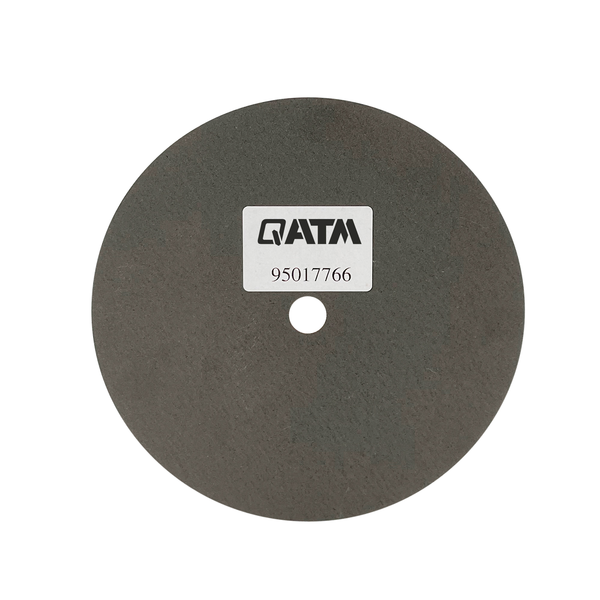

95017766

150 mm

0.8 mm

12.7 mm

Resin

5 pcs

Cutting

Precision cut-off wheels

Silicon carbide

150 mm

0.8 mm

Resin

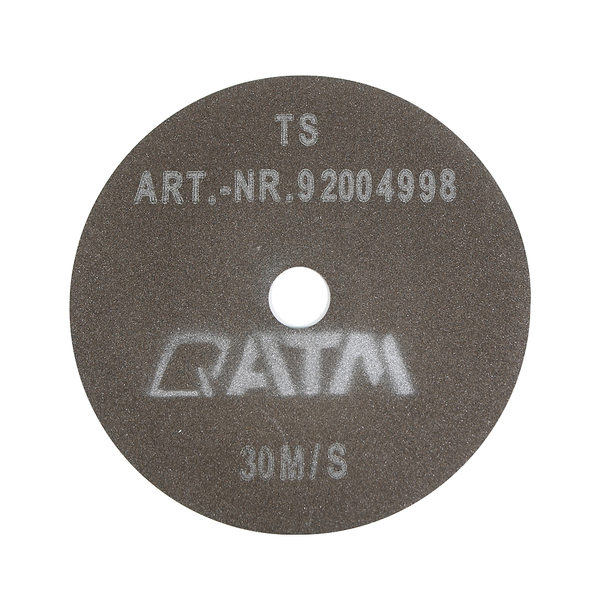

92004998

150 mm

1 mm

12.7 mm

Resin

5 pcs

92004155

200 mm

1.5 mm

12.7 mm

Resin

5 pcs

* 1 reduction ring for each order

Reduction ring

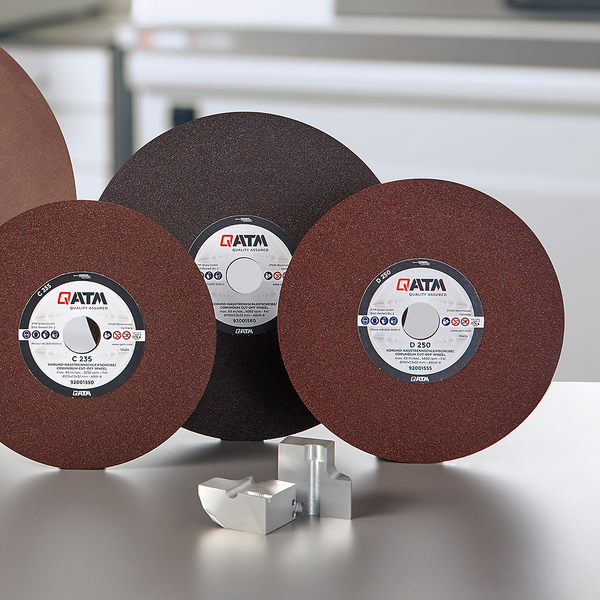

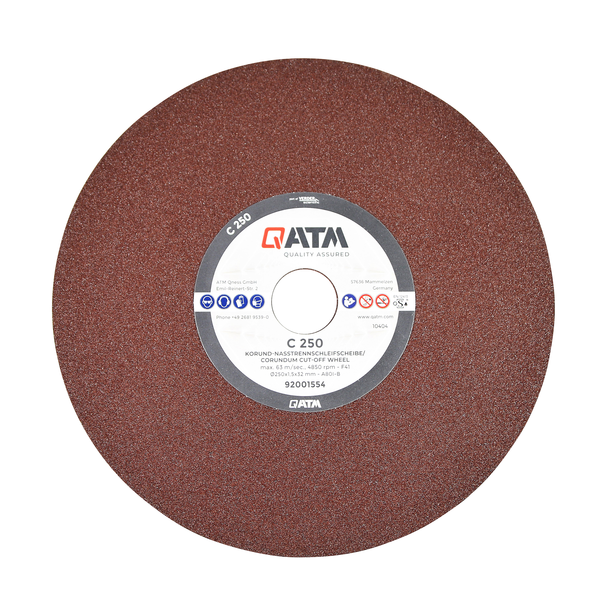

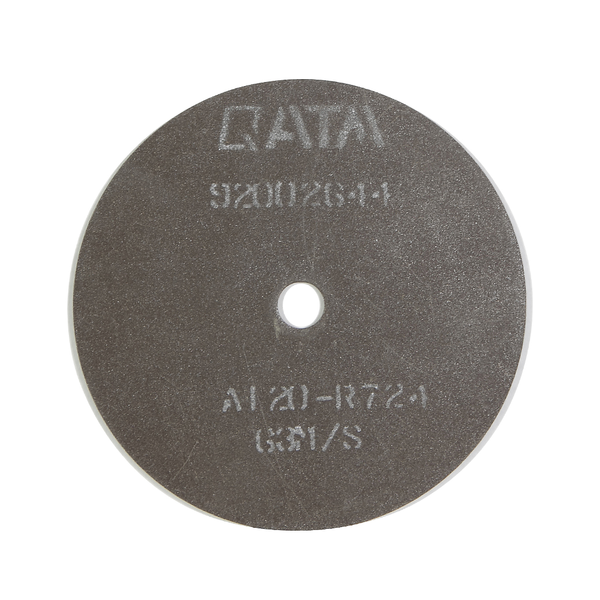

Aluminum oxide precision cut-off wheels

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Ø

Thickness

Arbor Size

Bond

Grain

92002643

100 mm

0.25 mm

12.7 mm

Rubber

Fine grid

5 pcs

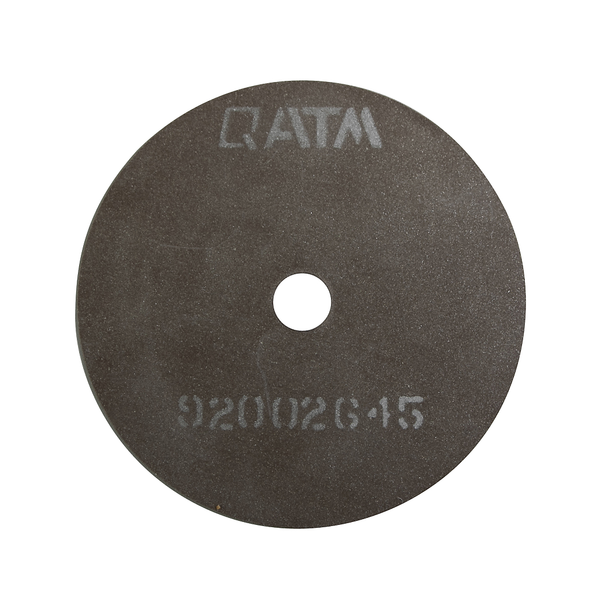

92002645

100 mm

0.4 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002644

125 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

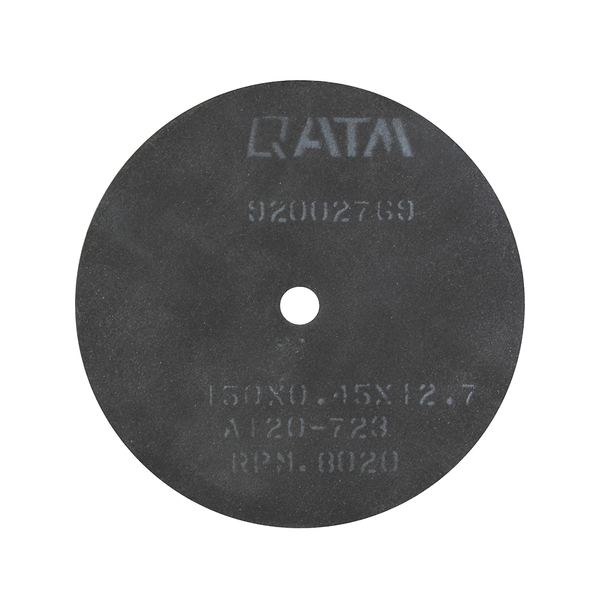

92002769

150 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

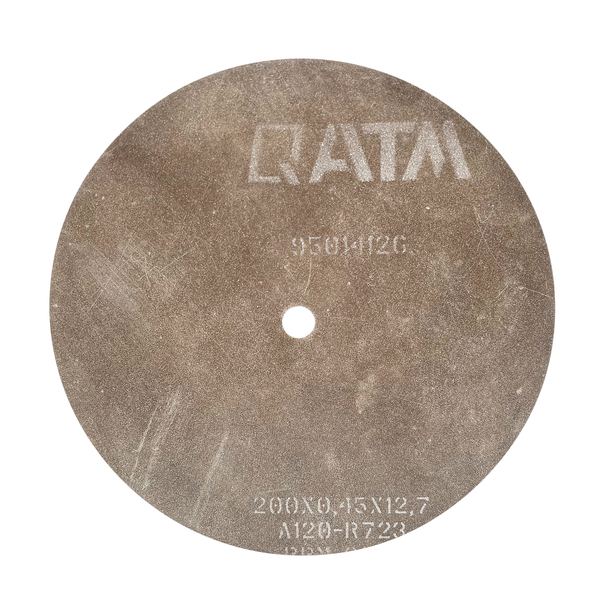

95014126

200 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Ø

Thickness

Arbor Size

Bond

Grain

92002646

125 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002770

150 mm

0.6 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002647

200 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92004159

150 mm

1 mm

12.7 mm

Resin

Coarse grid

5 pcs

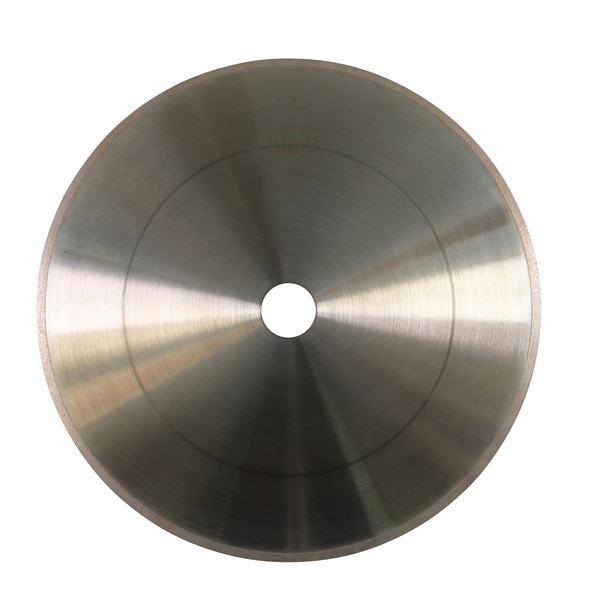

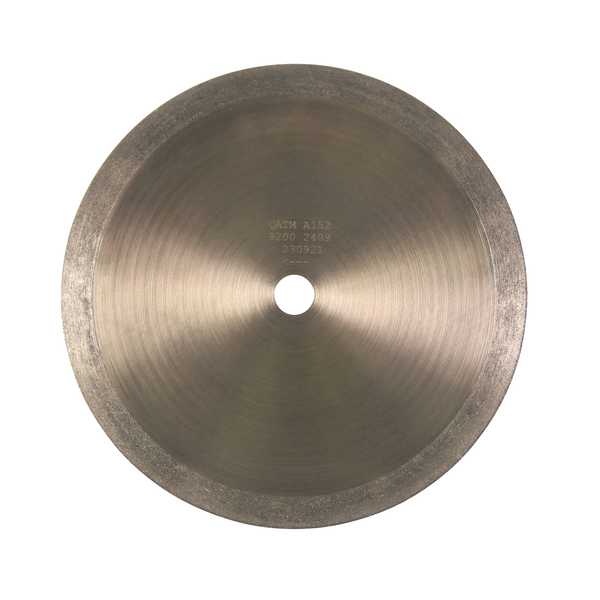

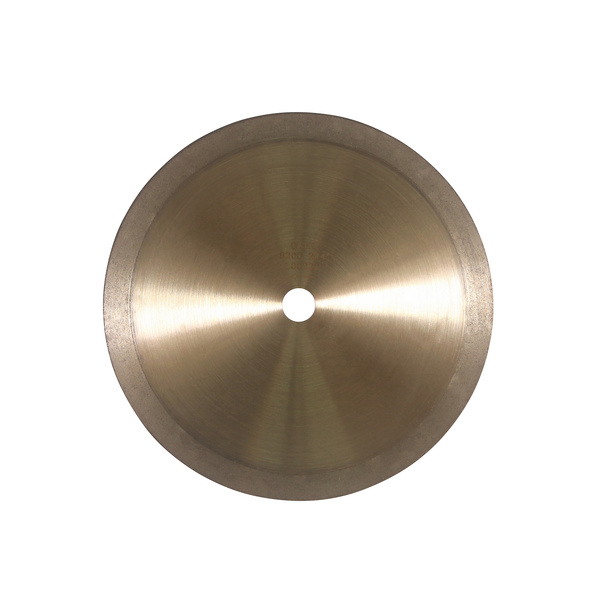

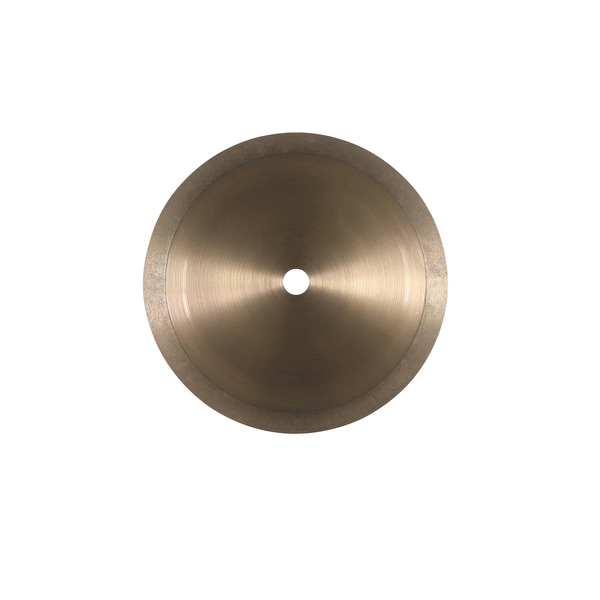

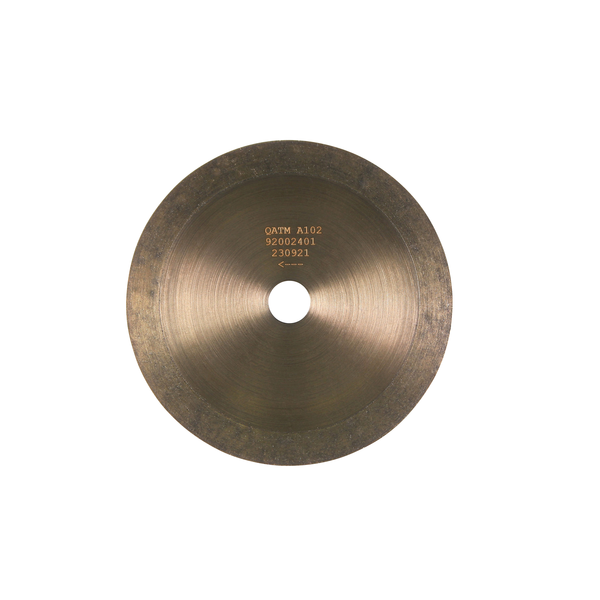

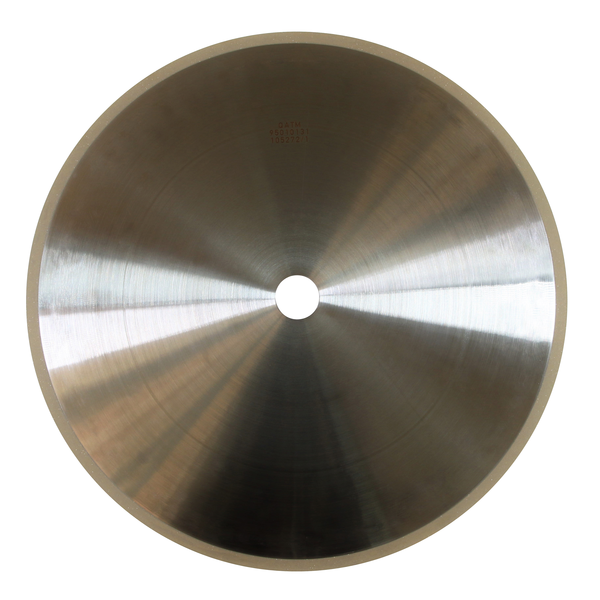

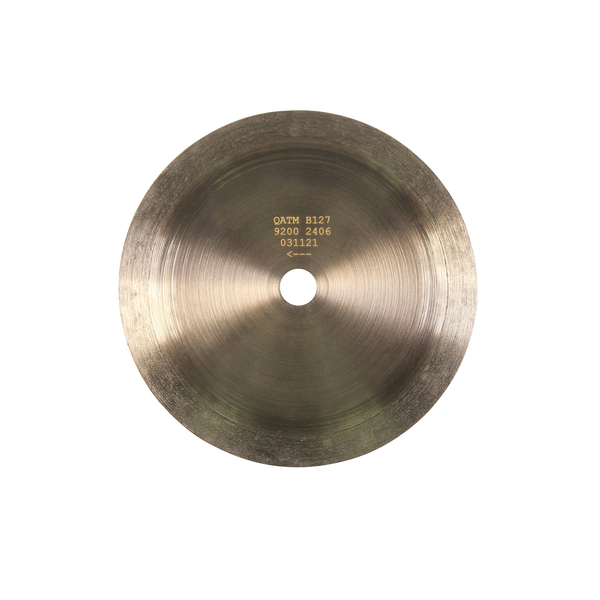

Diamond precision cut-off wheels
Bond: Bronze

• for universal application and carbides

Ø

Thickness

Arbor Size

Bond

Grain

92002397

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002401

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

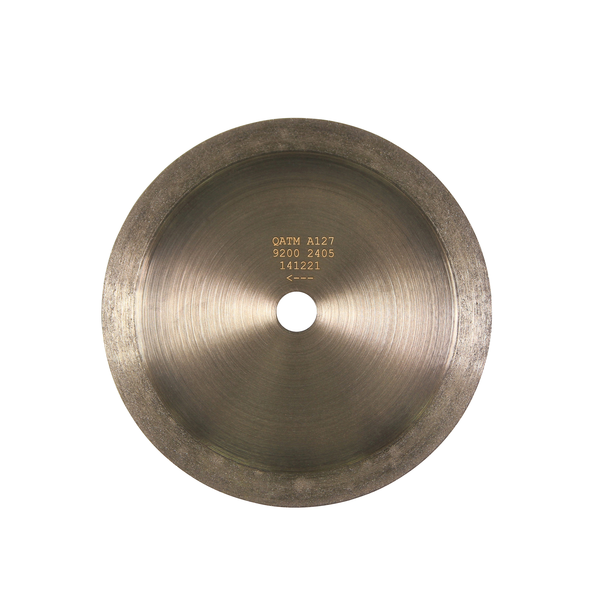

92002405

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92002409

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

95016591

175 mm

0.65 mm

12.7 mm

Bronze

D213

1 pc

95004814

200 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

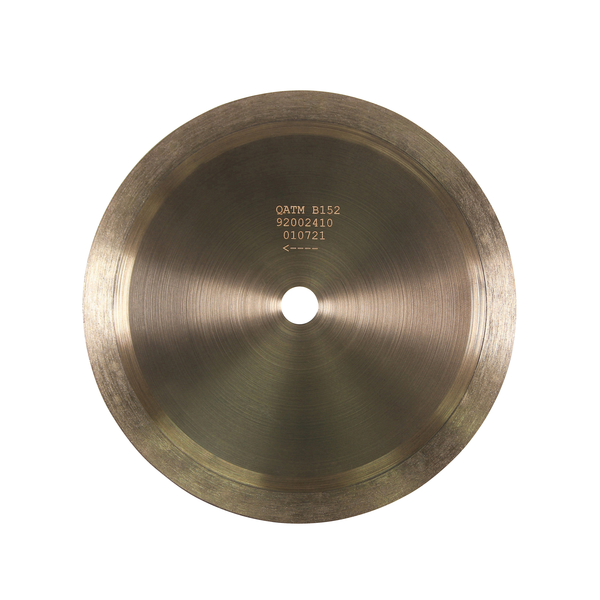

• for glass, minerals as well as brittle and hard ceramic materials

Ø

Thickness

Arbor Size

Bond

Grain

92002398

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

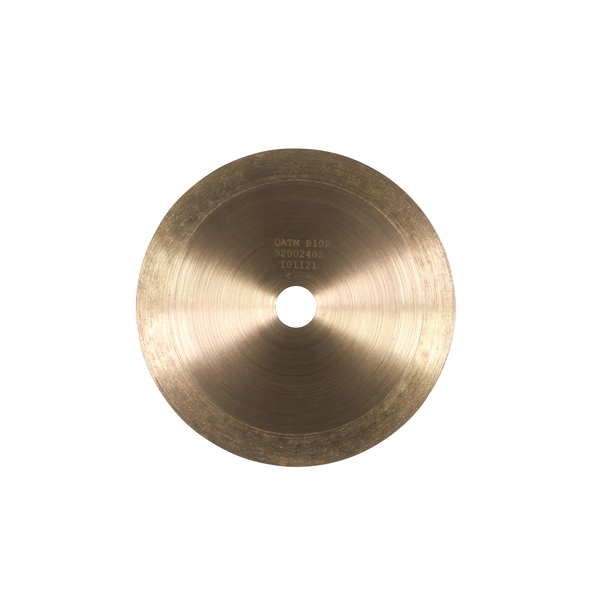

92002402

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002406

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92002410

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

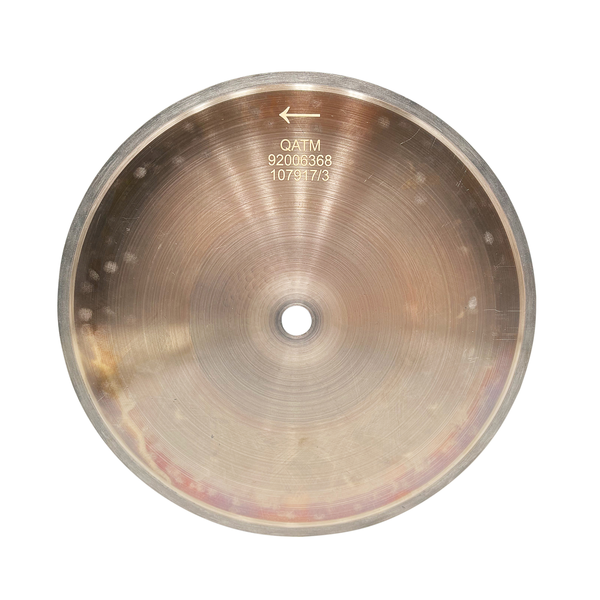

92006368

200 mm

0.6 mm

12.7 mm

Bronze

D213

1 pc

• for hard metals and hard ceramic materials

Ø

Thickness

Arbor Size

Bond

Grain

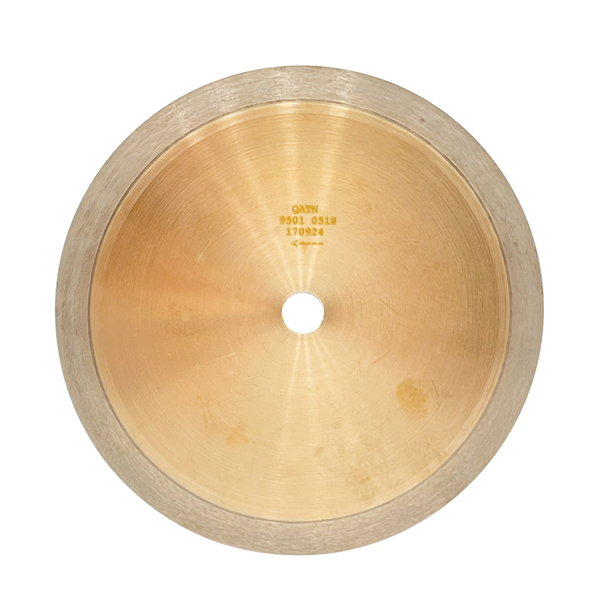

95010518

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

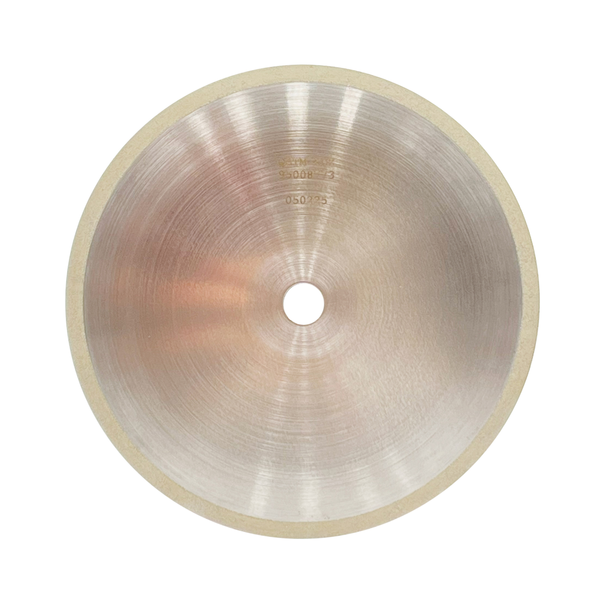

95008773

150 mm

0.5 mm

12.7 mm

Resin

D213

1 pc

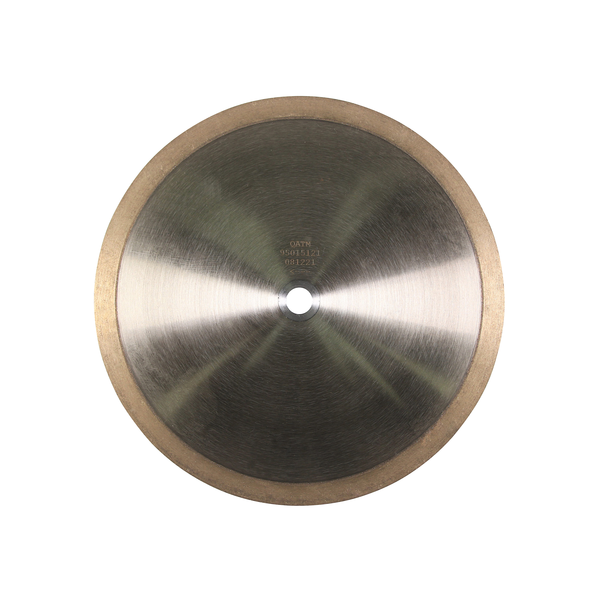

95015121

200 mm

1.0 mm

12.7 mm

Bronze

D151

1 pc

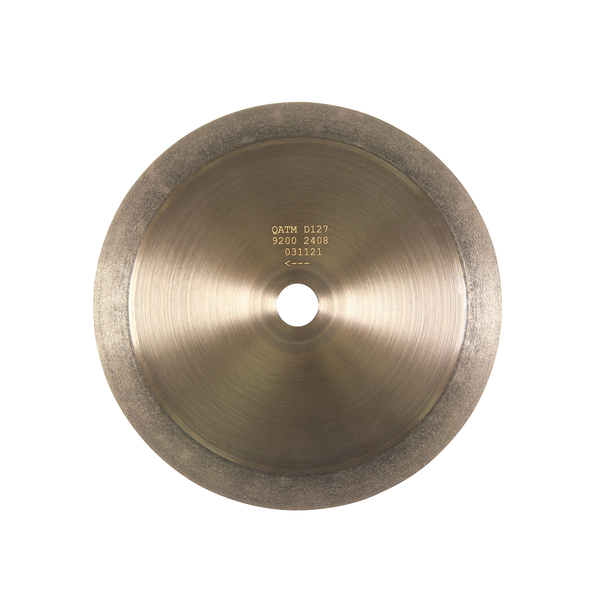

• for assembled printed circuit boards and filigree component geometries

Ø

Thickness

Arbor Size

Bond

Grain

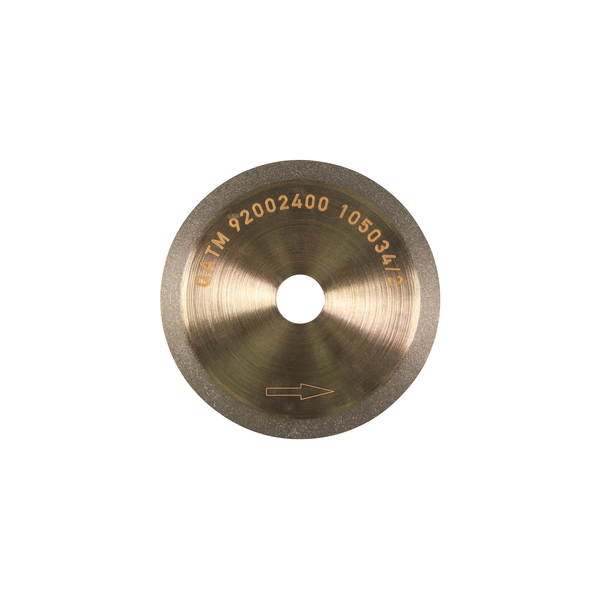

92002400

75 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

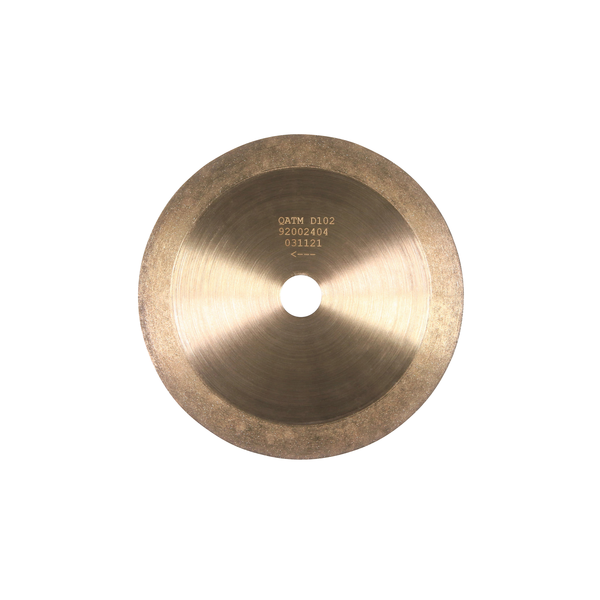

92002404

100 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

92002408

125 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

92002412

150 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

• for mounted samples, composites, CFRP, GFRP and plastics

Ø

Thickness

Arbor Size

Bond

Grain

95012928

200 mm

1.0 mm

12.7 mm

Galvanic

D64

1 pc

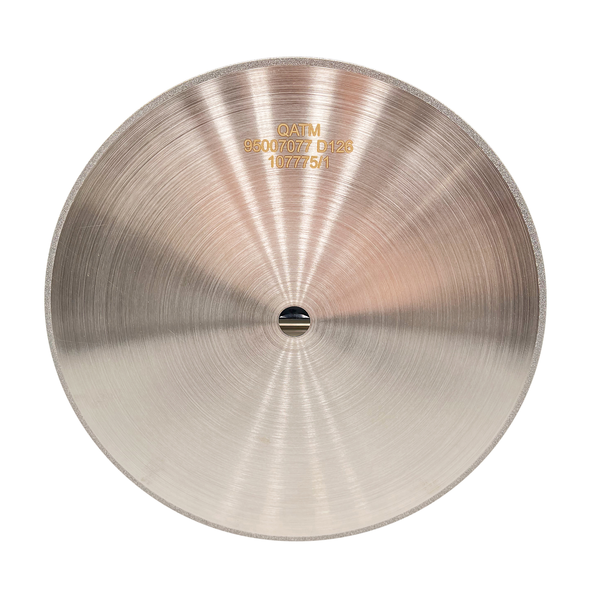

95007077

200 mm

1.2 mm

12.7 mm

Galvanic

D126

1 pc

CBN precision cut-off wheels
Bond: Bronze

• for composites and rigid materials

Ø

Thickness

Arbor Size

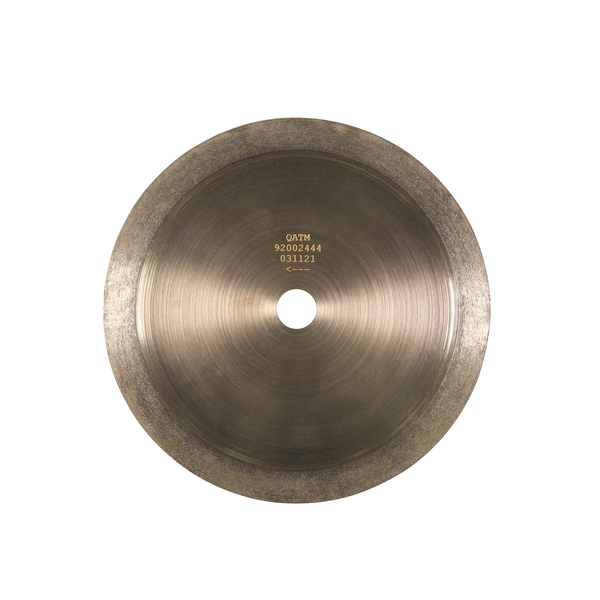

92002444

125 mm

0.5 mm

12.7 mm

1 pc

92002445

150 mm

0.65 mm

12.7 mm

1 pc

92002446

175 mm

0.9 mm

12.7 mm

1 pc

92006419

200 mm

0.5 mm

12.7 mm

1 pc

other diameters on request

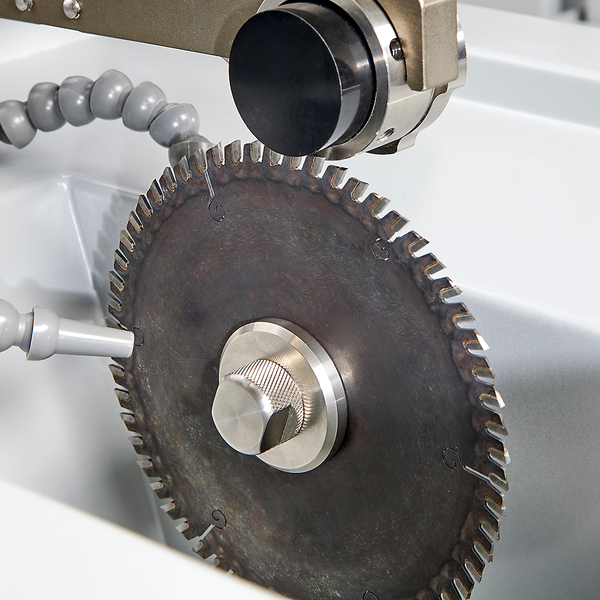

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Ø

Thickness

Arbor Size

95009083

150 mm

1.4 mm

12.7 mm

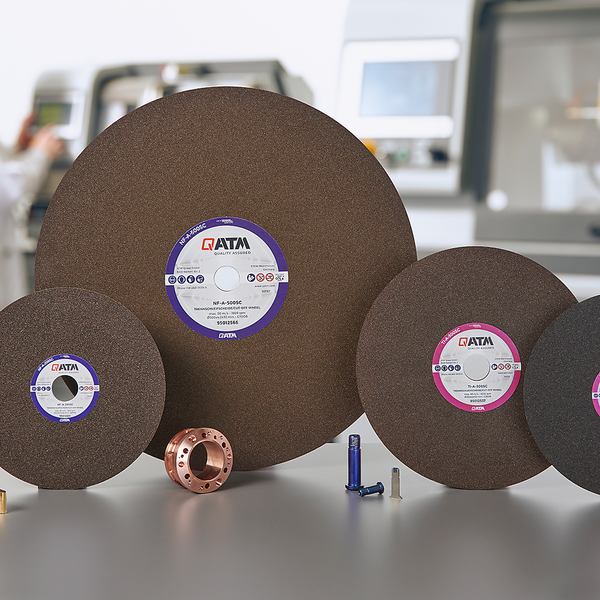

Premium silicon carbide cut-off wheels
Bond: Resin

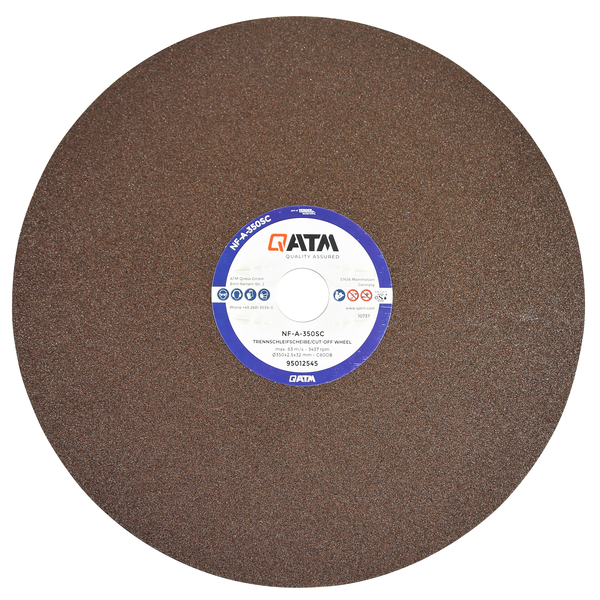

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Ø

Thickness

Arbor Size

Bond

95012531

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012538

300 mm

2.0 mm

32 mm

Resin

10 pcs

95012545

350 mm

2.5 mm

32 mm

Resin

10 pcs

95012552

400 mm

3.0 mm

32 mm

Resin

10 pcs

95012566

500 mm

4.0 mm

32 mm

Resin

5 pcs

95012573

600 mm

4.5 mm

32 mm

Resin

5 pcs

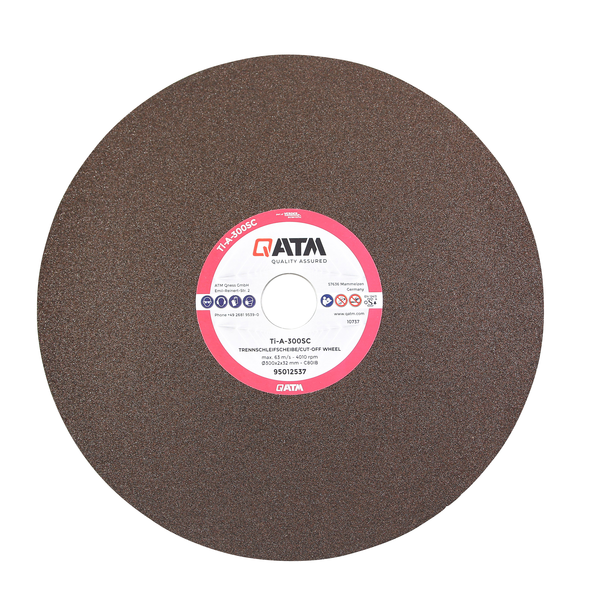

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Ø

Thickness

Arbor Size

Bond

92002417

230 mm

1.5 mm

32 mm

Resin

10 pcs

95012530

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012537

300 mm

2.0 mm

32 mm

Resin

10 pcs

92002427

350 mm

2.5 mm

32 mm

Resin

10 pcs

92002428

400 mm

3.0 mm

32 mm

Resin

10 pcs

for cut-off wheels with Ø 230 mm and 400 mm for titanium and titanium alloys, see type F aluminum oxide cut-off wheels

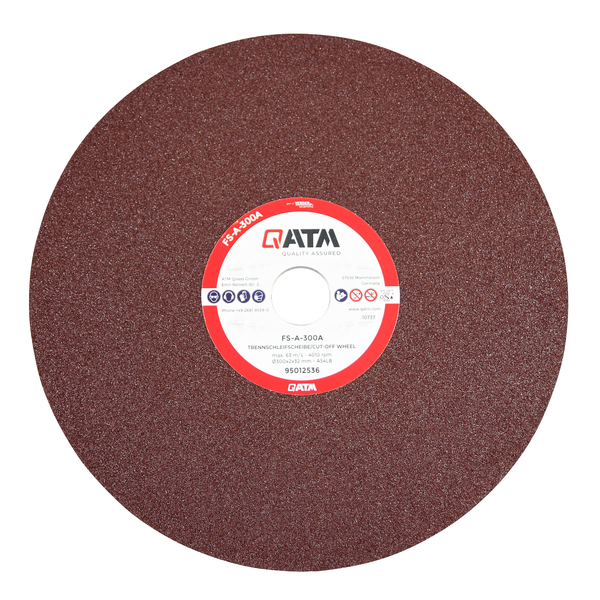

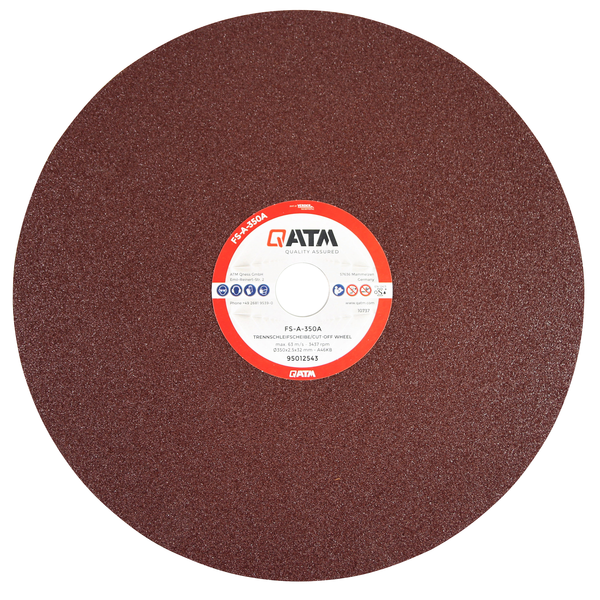

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Ø

Thickness

Arbor Size

Bond

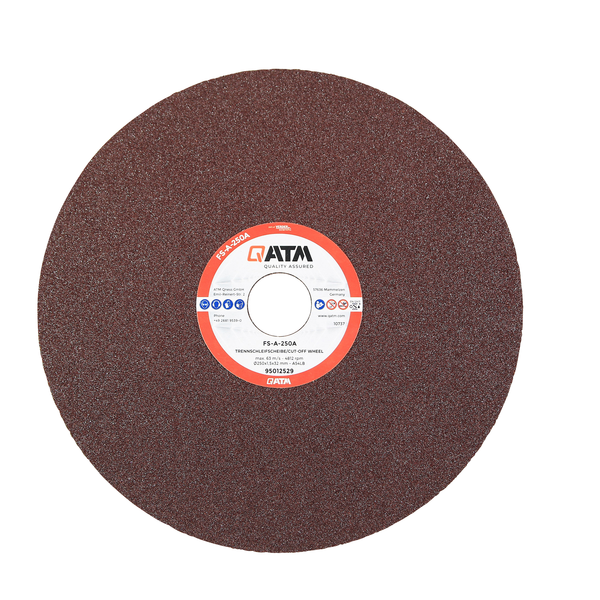

95012529

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012536

300 mm

2.0 mm

32 mm

Resin

10 pcs

95012543

350 mm

2.5 mm

32 mm

Resin

10 pcs

95012550

400 mm

3.0 mm

32 mm

Resin

10 pcs

95012564

500 mm

4.0 mm

32 mm

Resin

5 pcs

95012571

600 mm

4.5 mm

32 mm

Resin

5 pcs

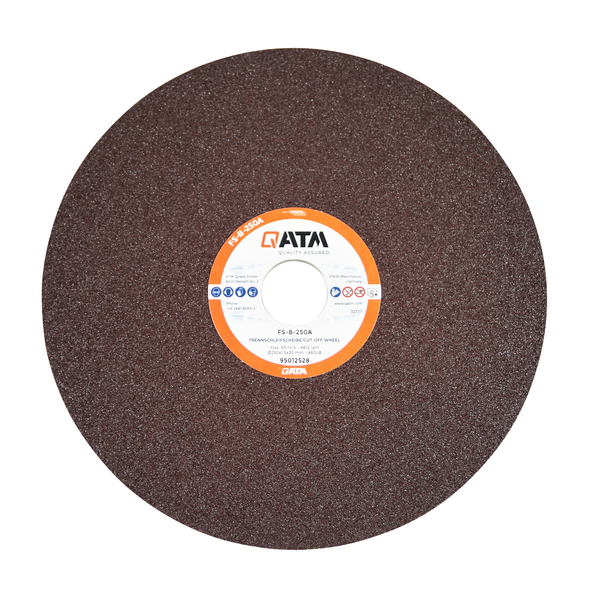

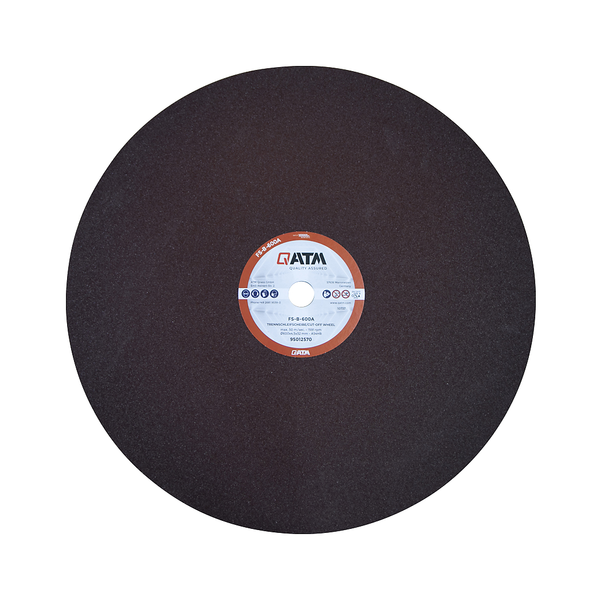

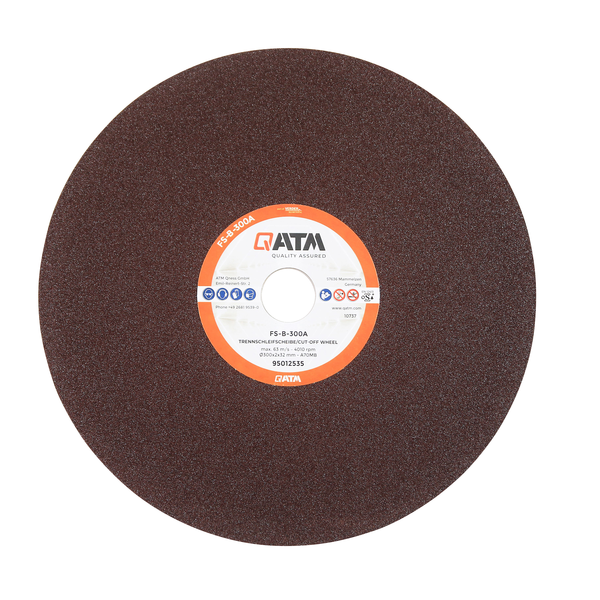

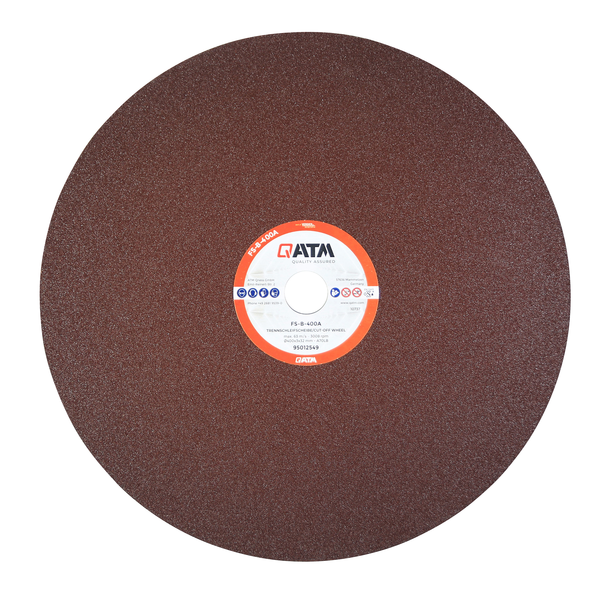

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Ø

Thickness

Arbor Size

Bond

95012528

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012535

300 mm

2.0 mm

32 mm

Resin

10 pcs

95012542

350 mm

2.5 mm

32 mm

Resin

10 pcs

95012549

400 mm

3.0 mm

32 mm

Resin

10 pcs

95012563

500 mm

4.0 mm

32 mm

Resin

5 pcs

95012570

600 mm

4.5 mm

32 mm

Resin

5 pcs

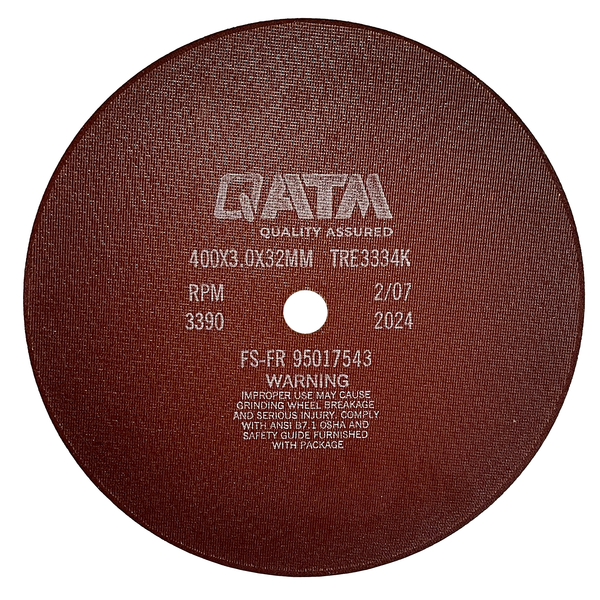

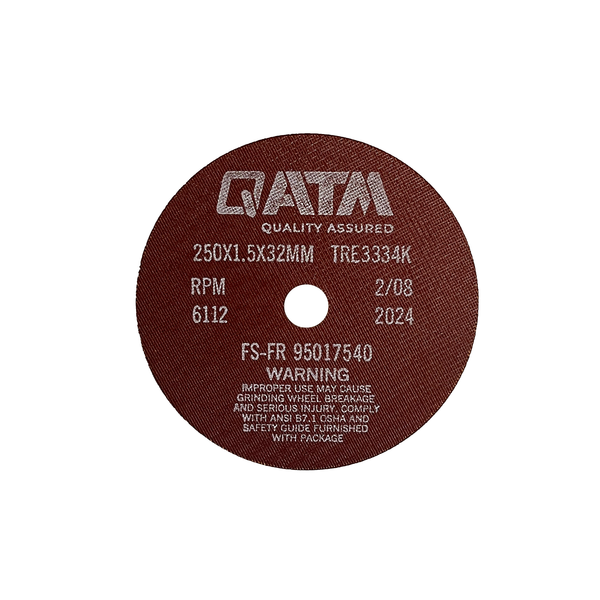

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Ø

Thickness

Arbor Size

Bond

95017540

250 mm

1.5 mm

32 mm

Resin

10 pcs

95017541

300 mm

2.0 mm

32 mm

Resin

10 pcs

95017542

350 mm

2.5 mm

32 mm

Resin

10 pcs

95017543

400 mm

3.0 mm

32 mm

Resin

10 pcs

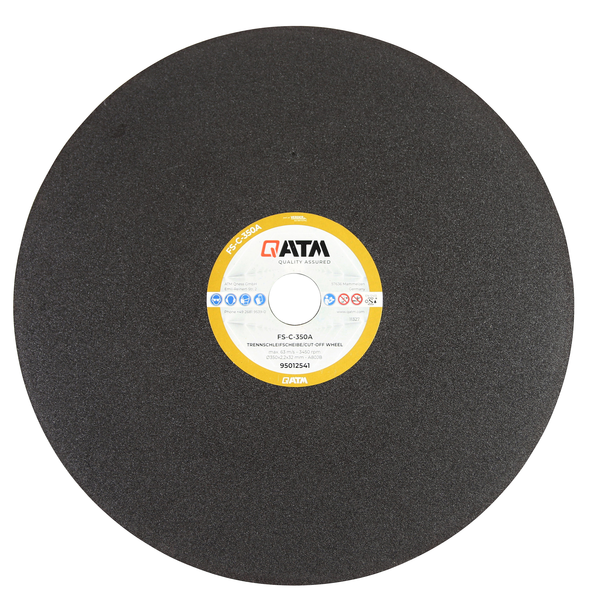

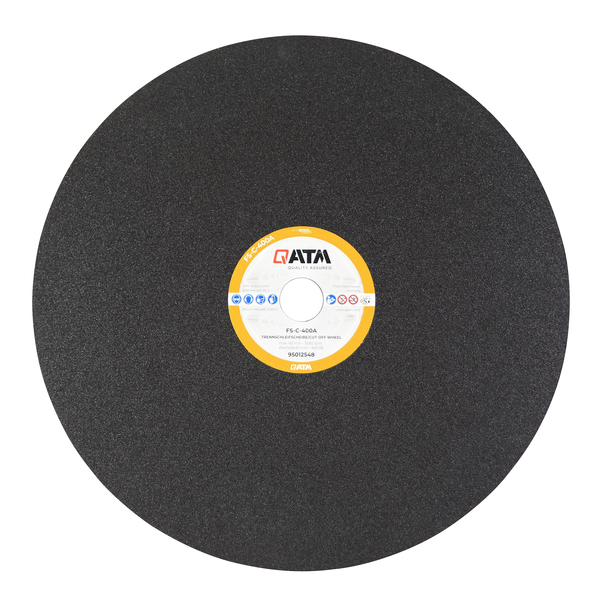

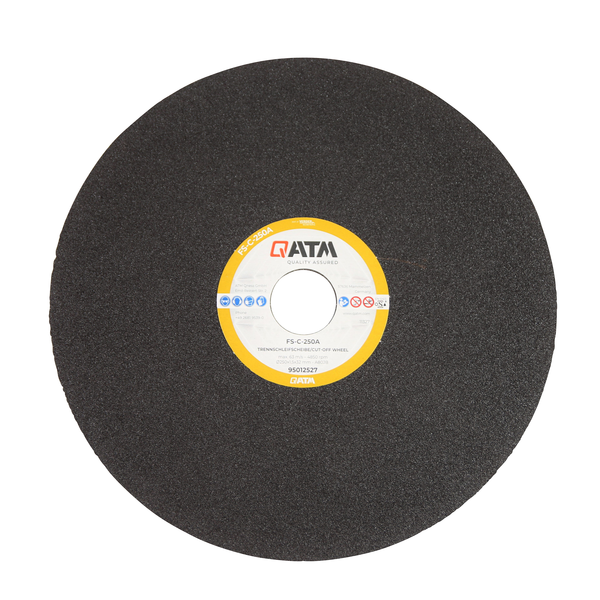

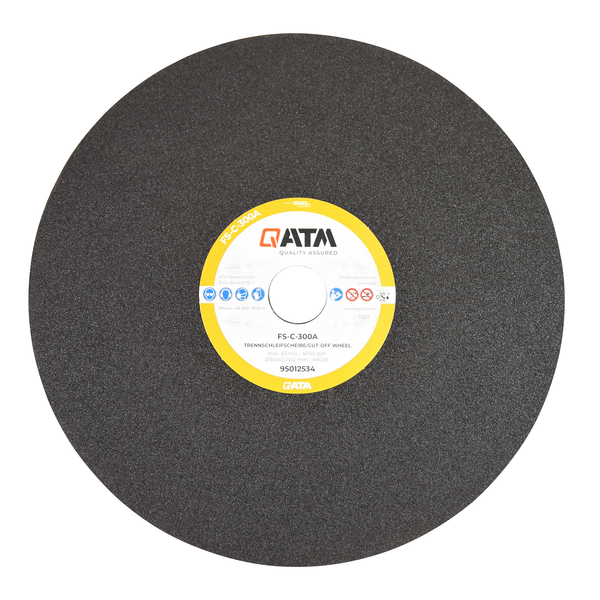

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Ø

Thickness

Arbor Size

Bond

95012527

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012534

300 mm

2.2 mm

32 mm

Resin

10 pcs

95012541

350 mm

2.2 mm

32 mm

Resin

10 pcs

95012548

400 mm

3.0 mm

32 mm

Resin

10 pcs

95012562

500 mm

4.0 mm

32 mm

Resin

5 pcs

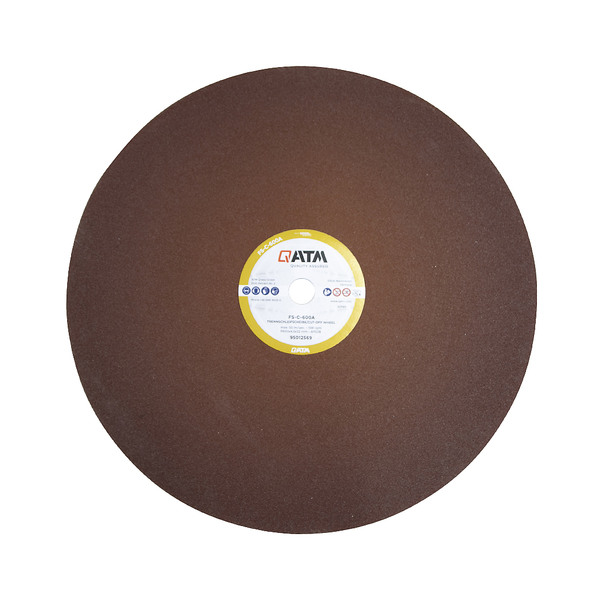

95012569

600 mm

4.5 mm

32 mm

Resin

5 pcs

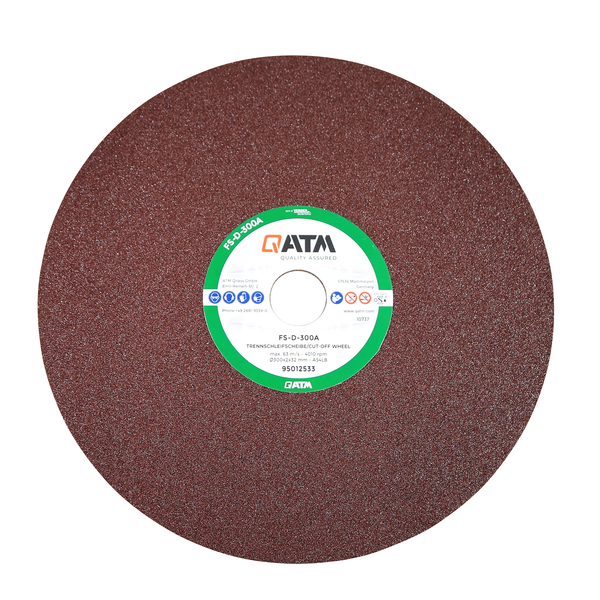

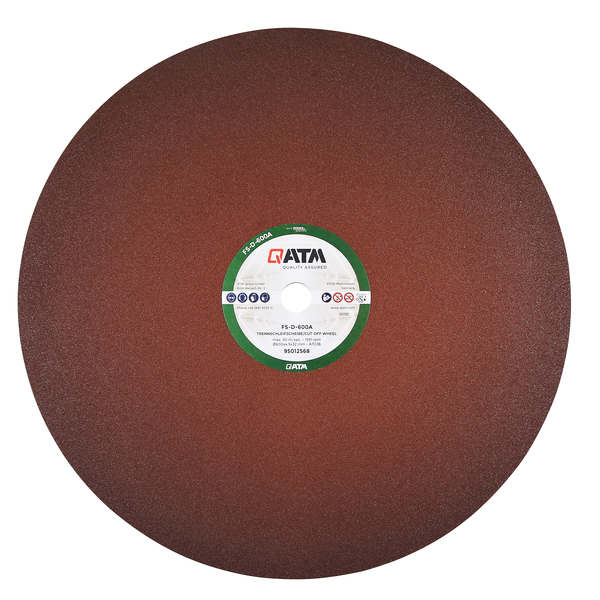

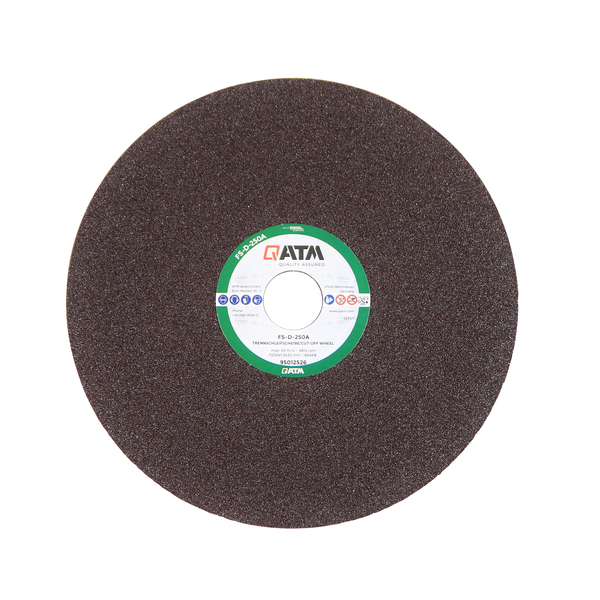

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Ø

Thickness

Arbor Size

Bond

95012526

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012533

300 mm

2.0 mm

32 mm

Resin

10 pcs

95012540

350 mm

2.5 mm

32 mm

Resin

10 pcs

95012547

400 mm

3.0 mm

32 mm

Resin

10 pcs

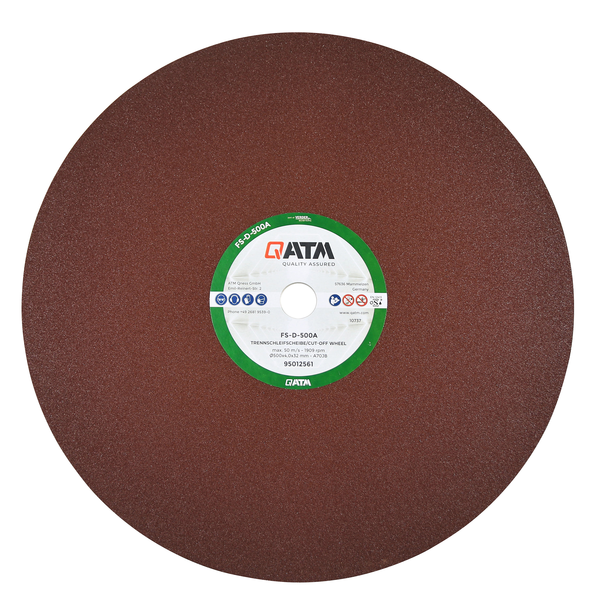

95012561

500 mm

4.0 mm

32 mm

Resin

5 pcs

95012568

600 mm

4.5 mm

32 mm

Resin

5 pcs

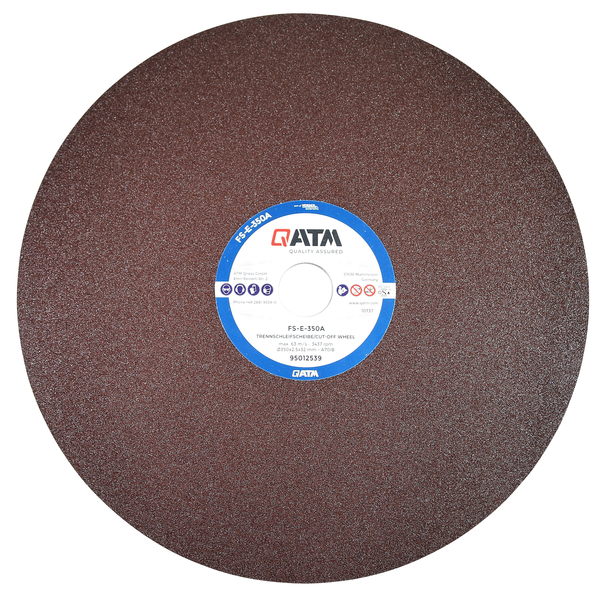

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Ø

Thickness

Arbor Size

Bond

95012525

250 mm

1.5 mm

32 mm

Resin

10 pcs

95012532

300 mm

2.0 mm

32 mm

Resin

10 pcs

95012539

350 mm

2.2 mm

32 mm

Resin

10 pcs

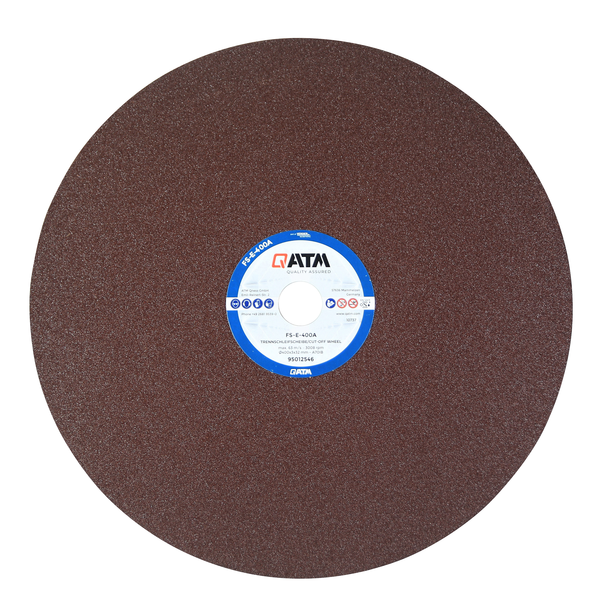

95012546

400 mm

3.0 mm

32 mm

Resin

10 pcs

95012560

500 mm

4.0 mm

32 mm

Resin

5 pcs

95012567

600 mm

4.5 mm

40 mm

Resin

5 pcs

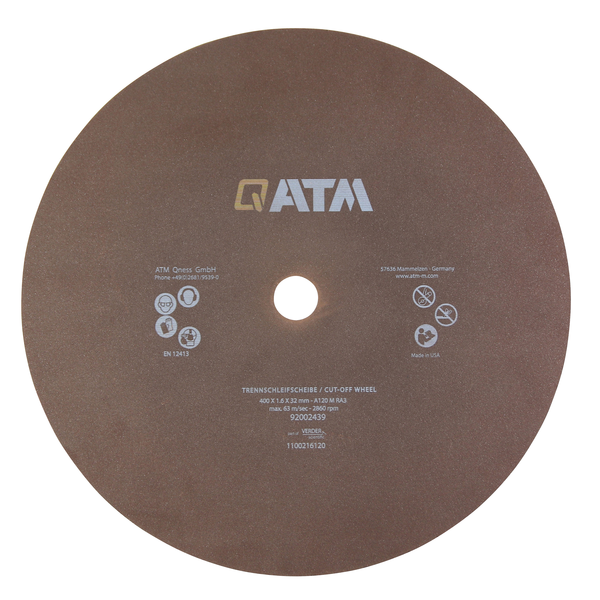

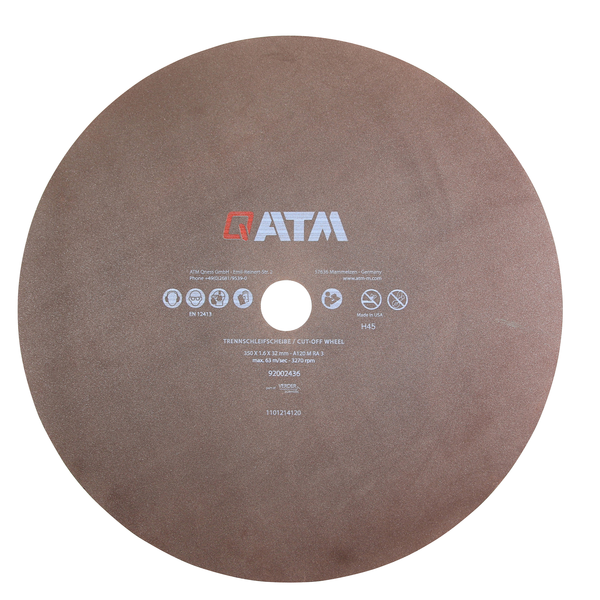

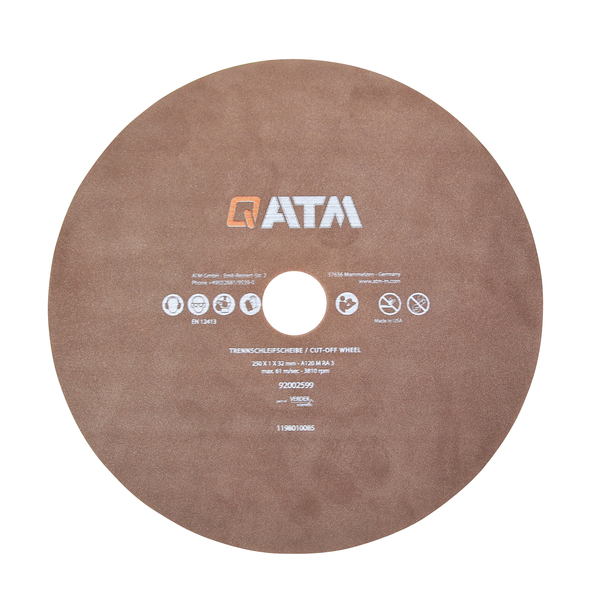

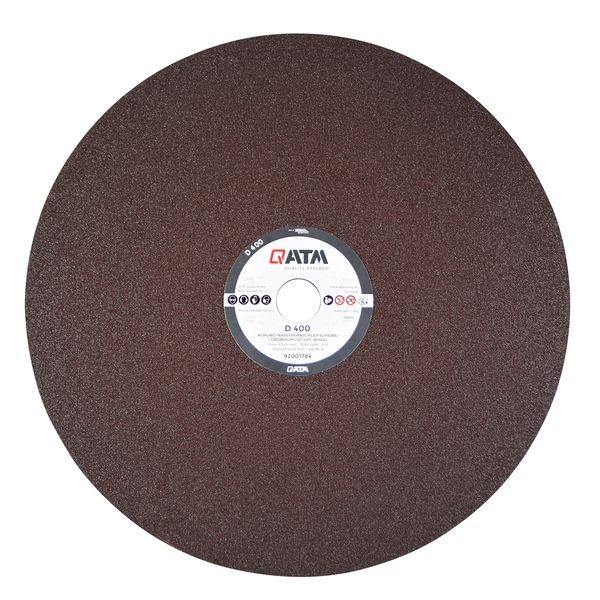

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Ø

Thickness

Arbor Size

Bond

92002413

229 mm

0.8 mm

32 mm

Rubber

10 pcs

92002599

254 mm

1.0 mm

32 mm

Rubber

10 pcs

92002441

305 mm

1.0 mm

32 mm

Rubber

10 pcs

92002436

356 mm

1.6 mm

32 mm

Rubber

10 pcs

92002439

400 mm

1.6 mm

32 mm

Rubber

10 pcs

92008537

500 mm

2.4 mm

32 mm

Rubber

10 pcs

92004007

600 mm

4.3 mm

40 mm

Rubber

10 pcs

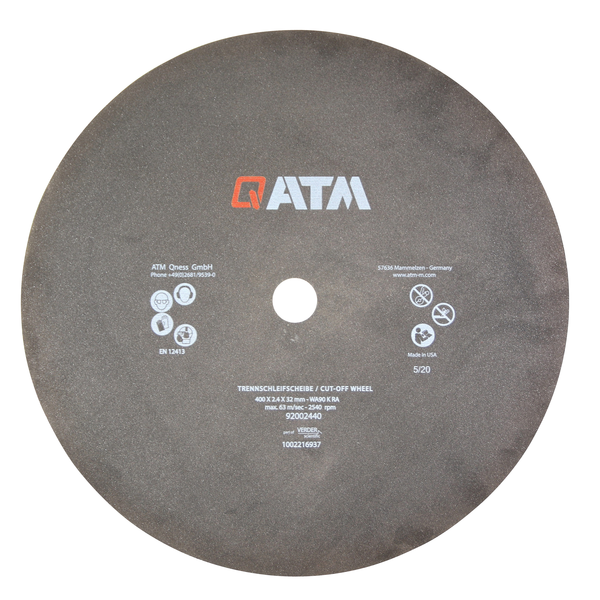

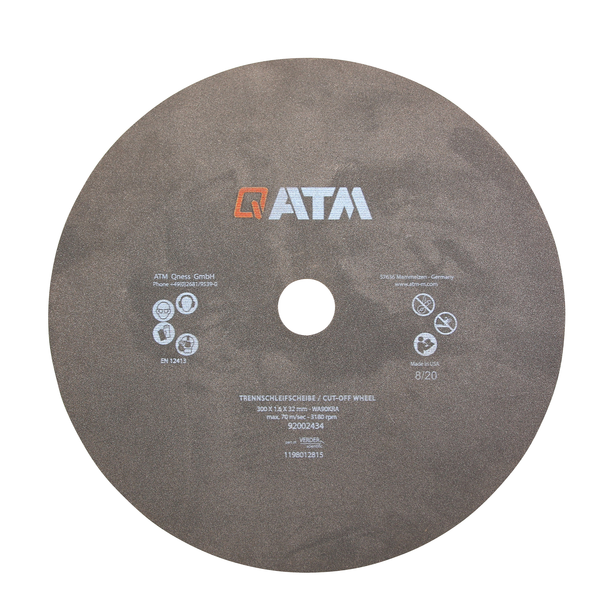

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Ø

Thickness

Arbor Size

Bond

92002414

229 mm

1.6 mm

32 mm

Rubber

10 pcs

92002600

254 mm

1.6 mm

32 mm

Rubber

10 pcs

92002434

305 mm

1.6 mm

32 mm

Rubber

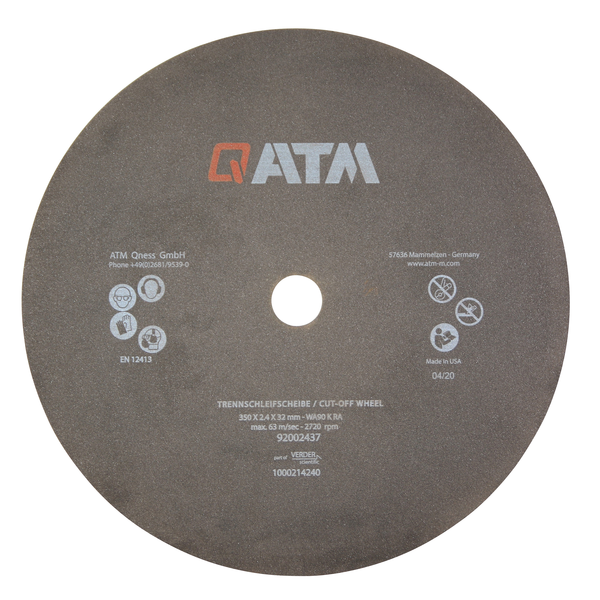

10 pcs

92002437

356 mm

2.4 mm

32 mm

Rubber

10 pcs

92002440

400 mm

2.4 mm

32 mm

Rubber

10 pcs

92008874

500 mm

3.0 mm

32 mm

Rubber

10 pcs

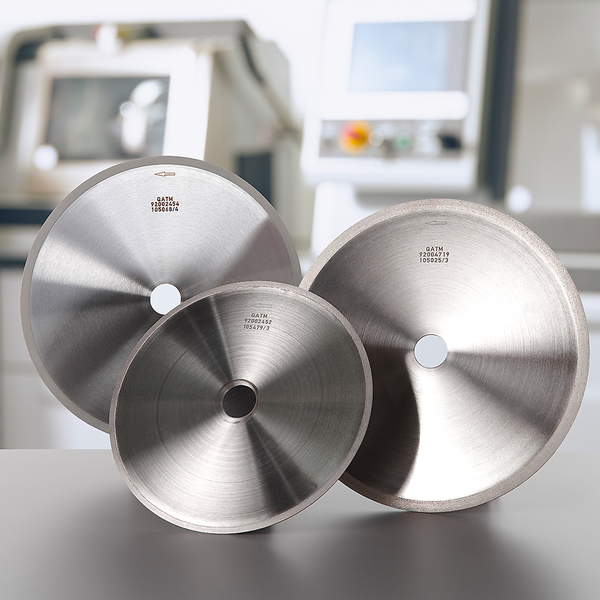

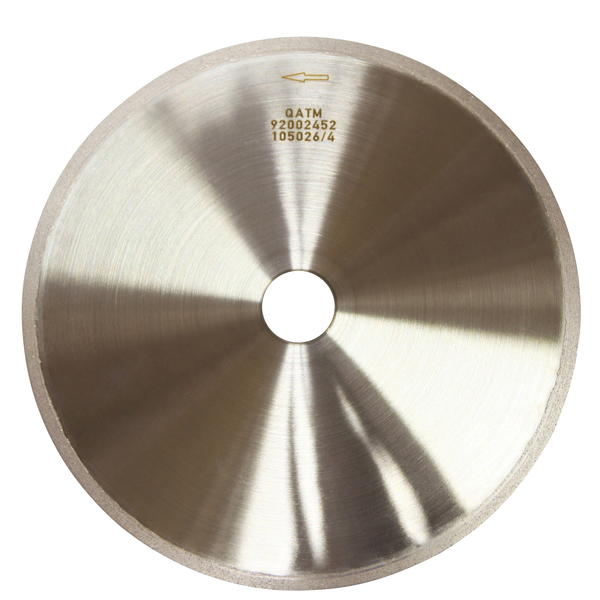

Premium diamond cut-off wheels
Bond: Bronze

• for ceramic materials

Ø

Thickness

Arbor Size

Bond

Grain

92002452

250 mm

1.2 mm

32 mm

Bronze

D181

1 pc

92002453

300 mm

1.6 mm

32 mm

Bronze

D181

1 pc

95003433

350 mm

1.6 mm

32 mm

Bronze

D181

1 pc

92008751

400 mm

2.4 mm

32 mm

Bronze

D181/213

1 pc

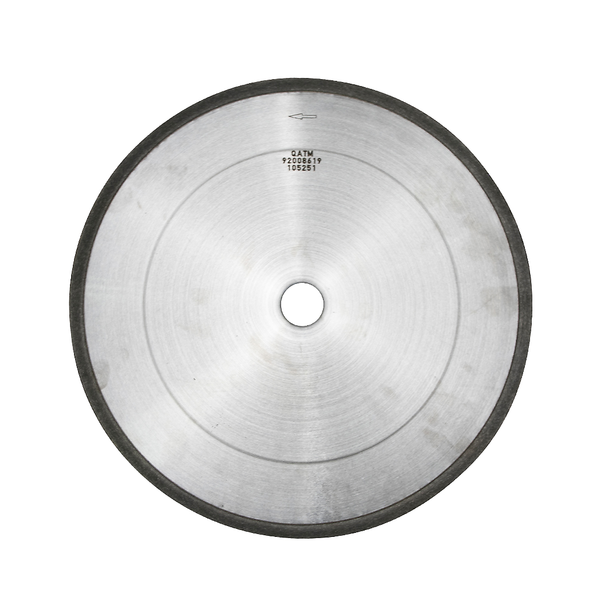

• for composite materials (hard/soft combinations)

Ø

Thickness

Arbor Size

Bond

Grain

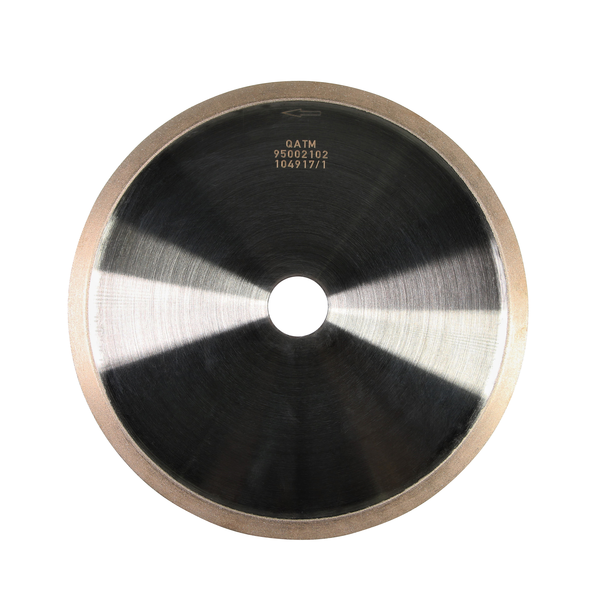

95002102

250 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92004719

300 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92008619

350 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

95006793

400 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

other diameters on request

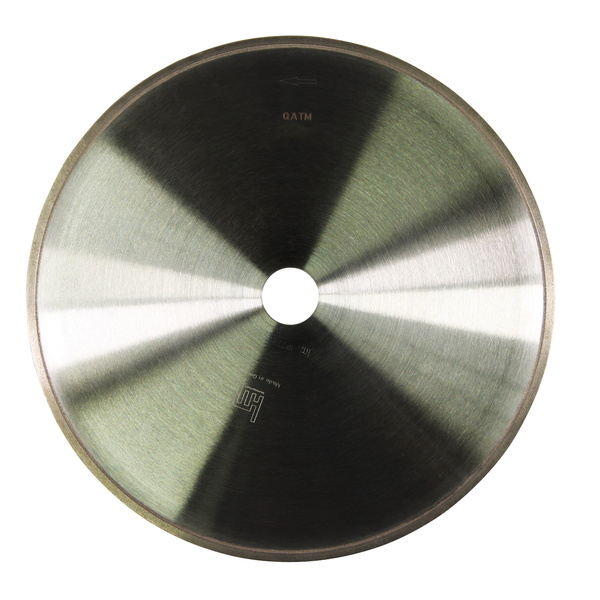

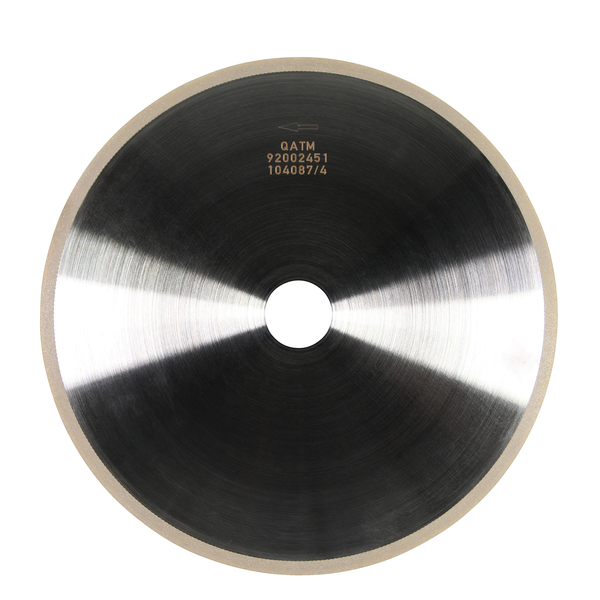

Premium diamond cut-off wheels
Bond: Resin

• for hard metals, for materials with high hardness (>700 HV)

Ø

Thickness

Arbor Size

Bond

Grain

92002451

250 mm

1.2 mm

32 mm

Resin

D126/151

1 pc

92002454

300 mm

1.6 mm

32 mm

Resin

D126

1 pc

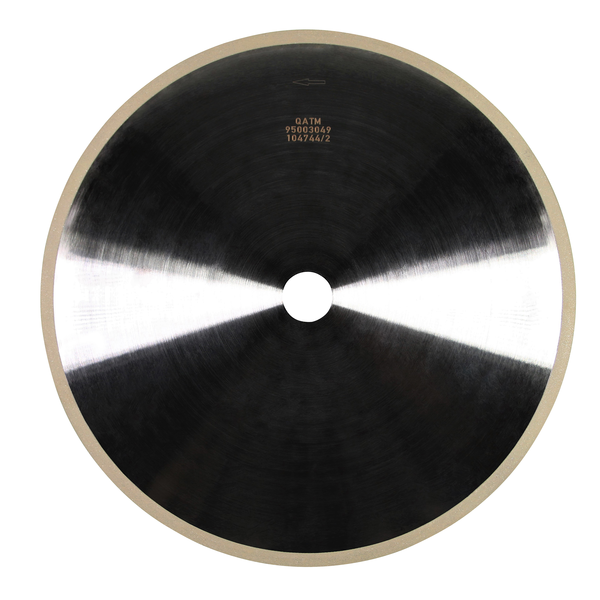

95003049

350 mm

1.6 mm

32 mm

Resin

D126

1 pc

95010131

400 mm

1.6 mm

32 mm

Resin

D126

1 pc

other diameters on request

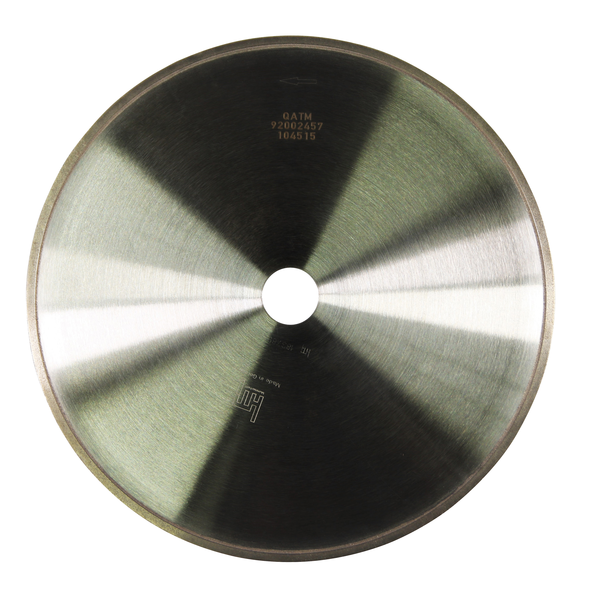

Premium CBN cut-off wheels
Bond: Bronze

• for Nickel and Cobald based alloys

Ø

Thickness

Arbor Size

Bond

92002456

250 mm

1.6 mm

32 mm

Bronze

1 pc

92002457

300 mm

1.6 mm

32 mm

Bronze

1 pc

95005025

350 mm

1.6 mm

32 mm

Bronze

1 pc

92004473

400 mm

1.6 mm

32 mm

Bronze

1 pc

Aluminum oxide cut-off wheels
Bond: Resin

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Ø

Thickness

Arbor Size

Bond

92001554

250 mm

1.5 mm

32 mm

Resin

10 pcs

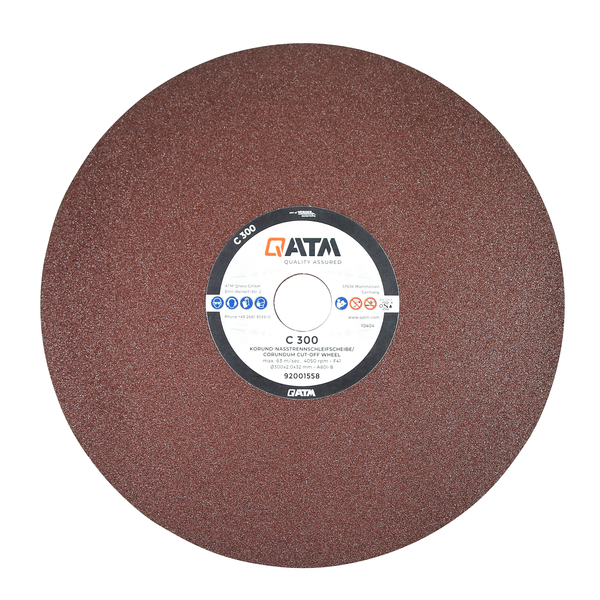

92001558

300 mm

2 mm

32 mm

Resin

10 pcs

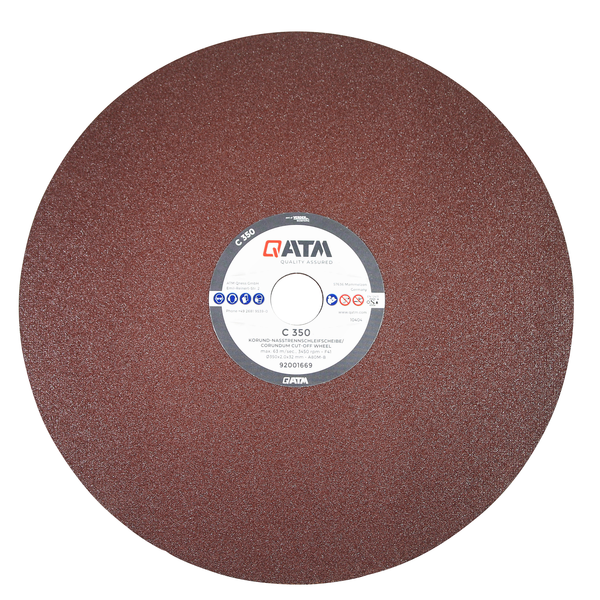

92001669

350 mm

2 mm

32 mm

Resin

10 pcs

92001783

400 mm

3 mm

32 mm

Resin

10 pcs

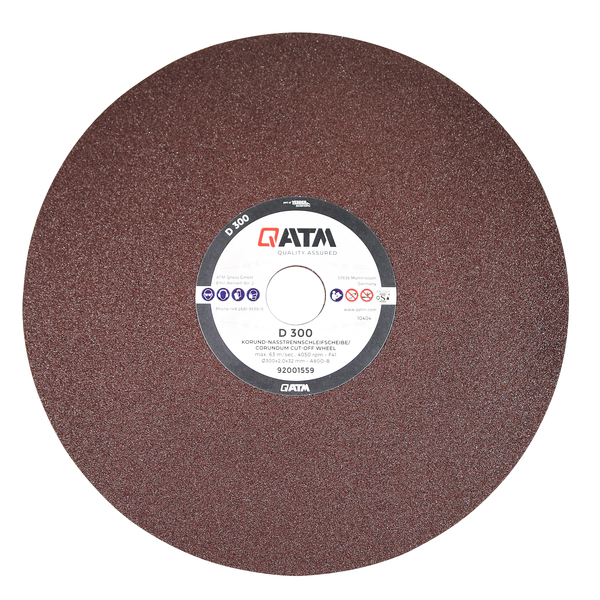

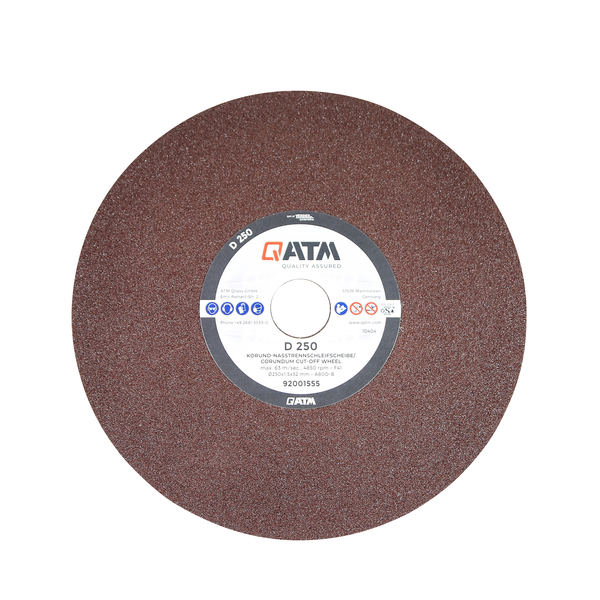

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Ø

Thickness

Arbor Size

Bond

92001555

250 mm

1.5 mm

32 mm

Resin

10 pcs

92001559

300 mm

2 mm

32 mm

Resin

10 pcs

92001670

350 mm

2 mm

32 mm

Resin

10 pcs

92001784

400 mm

3 mm

32 mm

Resin

10 pcs

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

Ø

Thickness

Arbor Size

Bond

92006066

250 mm

1.6 mm

32 mm

Resin

10 pcs

92005863

300 mm

2 mm

32 mm

Resin

10 pcs

92005862

350 mm

2.5 mm

32 mm

Resin

10 pcs

92008504

400 mm

3 mm

32 mm

Resin

10 pcs

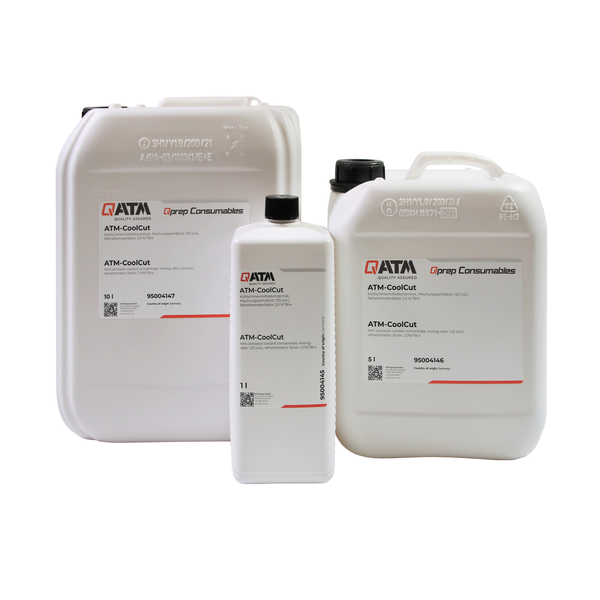

ATM-CoolCut, environment- and user-friendly

Mixing ratio 1:25 (4%) – 1:17 (6%) / refractometer: 2.0%/°Bx

• for steel, cast iron, light and non-ferrous metal, glass and ceramics, composites
• free of oil, boron, nitride and formaldehyde
• optimized anti-corrosion protection and cutting properties

95004145

ATM-CoolCut, concentrate

1 l

95004146

ATM-CoolCut, concentrate

5 l

95004147

ATM-CoolCut, concentrate

10 l

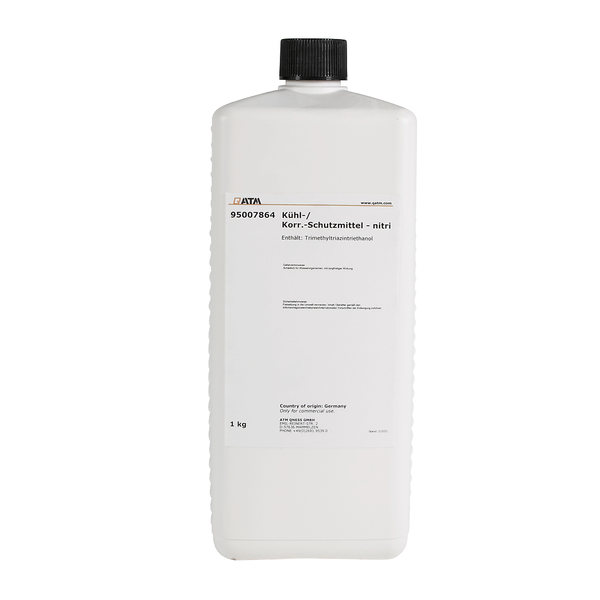

Anti corrosion coolant for polymers and composites

Mixing ratio: 1:66 (1.5%) - 1:33 (3%) / refractometer: 2.4%/°Bx

• optimized for polymers and composites
• free of nitride and oil
• also suitable for steels, non-ferrous metals, ceramics and glasses

95007864

Concentrate

1 l

Anti corrosion coolant, standard

Mixing ratio 1:35 / refractometer: 1.4%/°Bx

• for steel, cast iron, non-ferrous metal

95014280

Concentrate

1 l

95014281

Concentrate

5 l

95014282

Concentrate

10 l

Cooling agent additives

ATM-CoolAdd CU

95008731

ATM-CoolAdd CU, additive for Cu/non-ferrous metal processing (0.05-0.2% dosage in ATM-CoolCut)
• reduces heavy metal ions concentration, protects surfaces, promotes filterability
• supports machine functionality	1 l

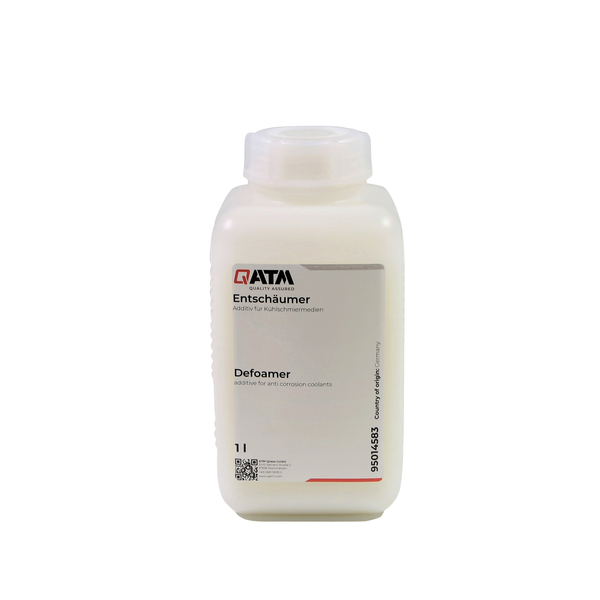

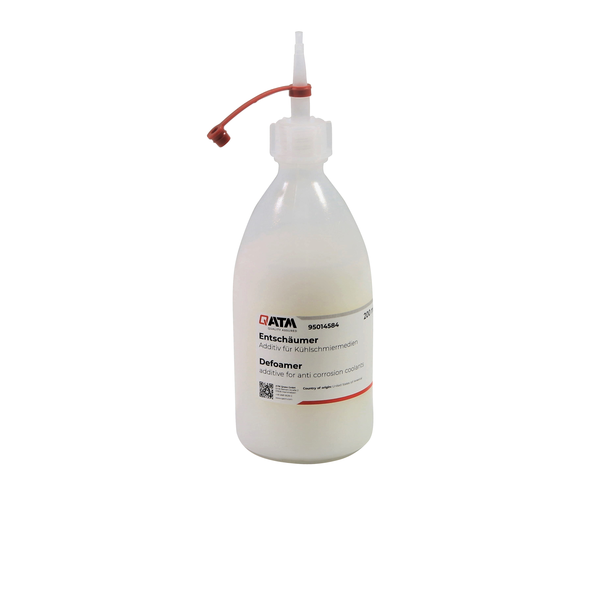

Defoaming agent

95014584 Defoaming agent, additive for water-based coolants
Mixing concentration in aqueous coolant approx. 0.005 - 0.05%

95014583 Defoaming agent, additive for water-based coolants
Mixing concentration in aqueous coolant approx. 0.005 - 0.05%

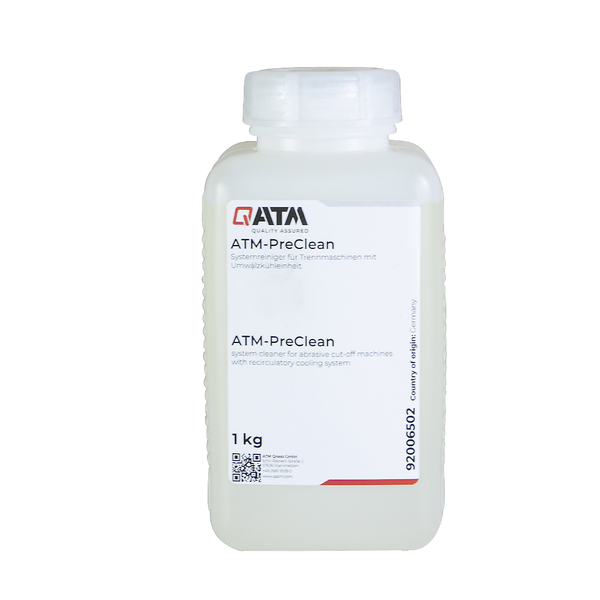

ATM-PreClean

92006502 ATM-PreClean, cleaning concentrate/system cleaner for circulating cooling units and cutting machines

Accessories for maintenance and care of coolants

Maintenance and testing set

95007866

Maintenance and testing set for anti-corrosion coolant (case with handheld refractometer, plastic cup for extraction of sample, test strips, thermometer)

1 pc

Accessories for maintenance and testing set

92005616

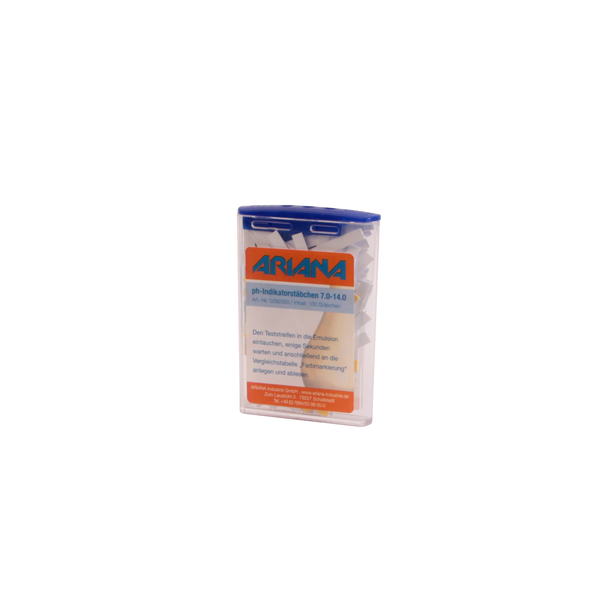

pH test strips

100 pcs

92005613

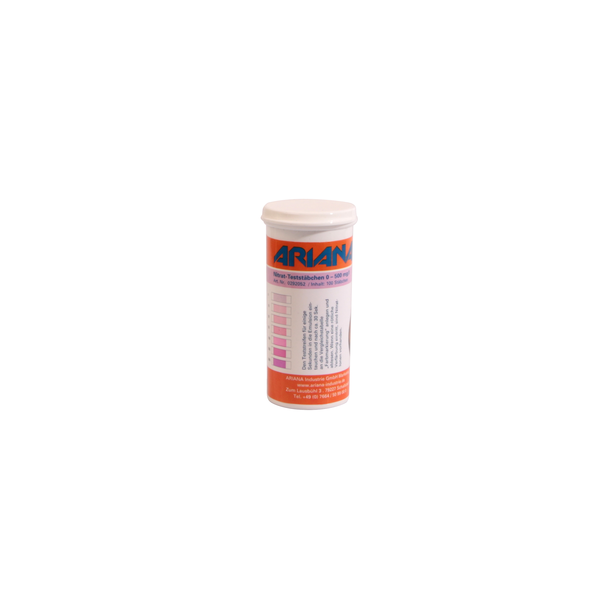

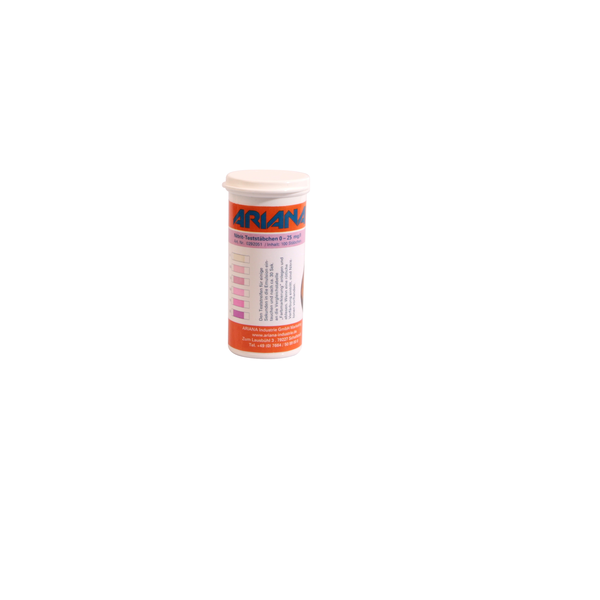

Nitrate test strips

100 pcs

92005614

Nitrite test strips

100 pcs

95007865

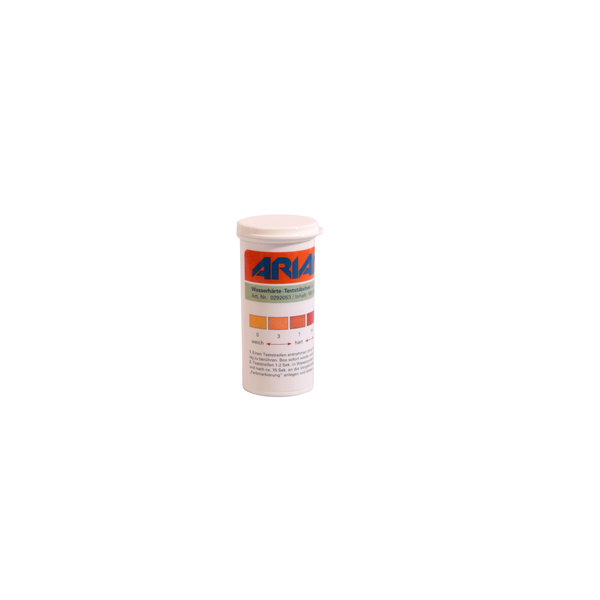

Water hardness test strips

100 pcs

Accessories for maintenance and care of cut-off machines

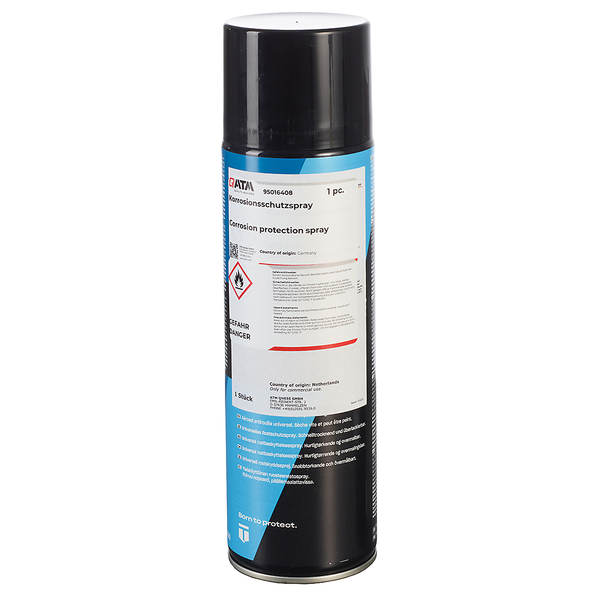

Corrosion protection- and care spray

95016408

Corrosion protection- and care spray, fully synthetical, silicon-free corrosion protection oil, for metal surfaces (e.g. clamping vices)

400 ml

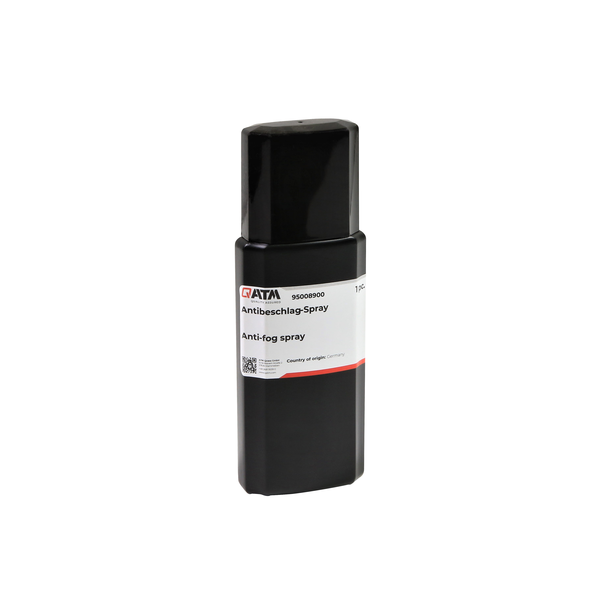

Anti-fog spray

95008900

Anti-fog spray (prevents steaming up the viewing window by splash water)

100 ml

Accessories for cut-off wheels

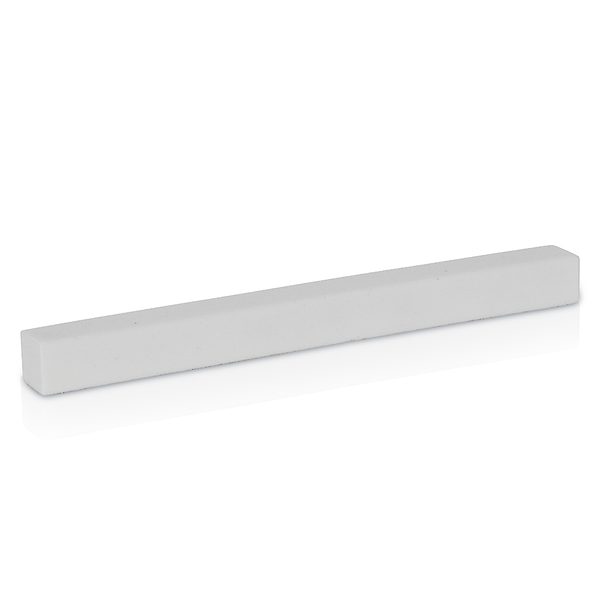

Dressing stone

92002460

Dressing stone for diamond cut-off wheels, CBN cut-off wheels and cup wheels

1 pc

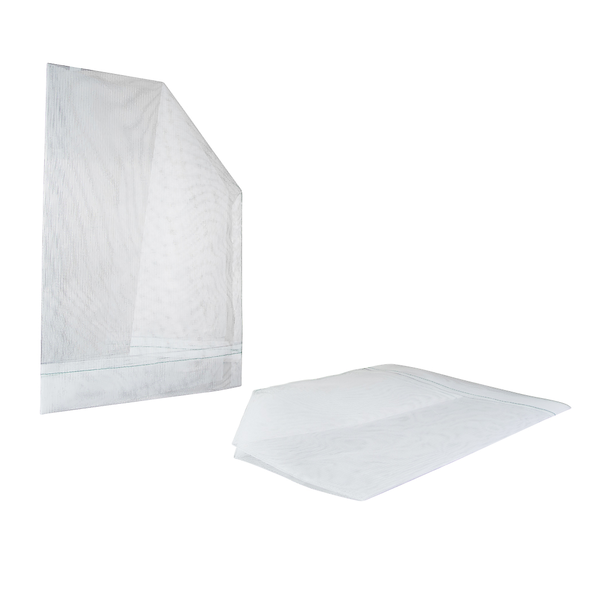

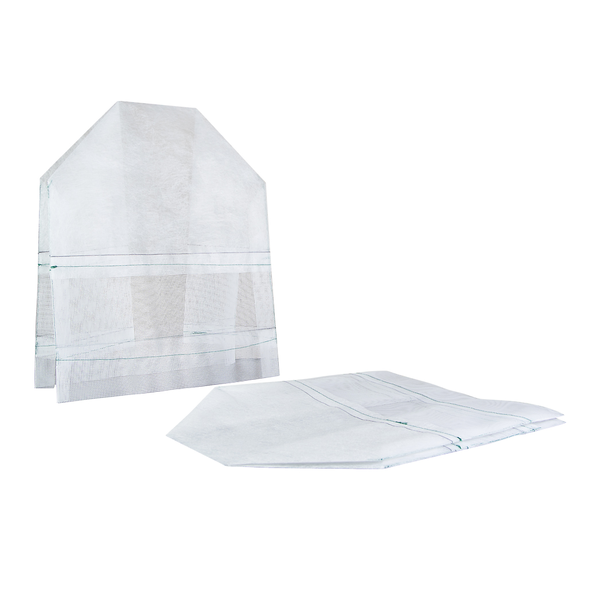

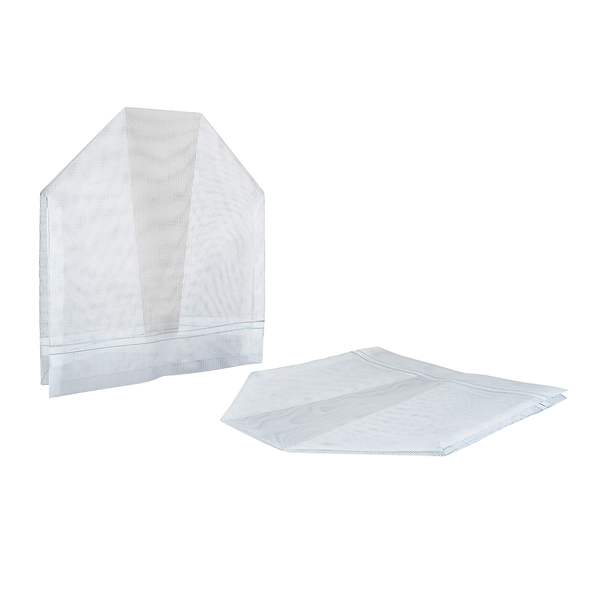

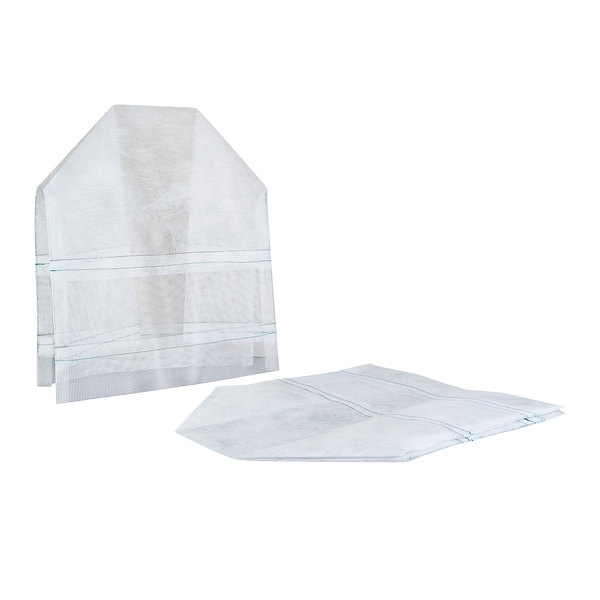

Filter inserts

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 /
Qcut 500 A (Brillant 275) / Brillant 280

Dimensions

Mesh size

95017301

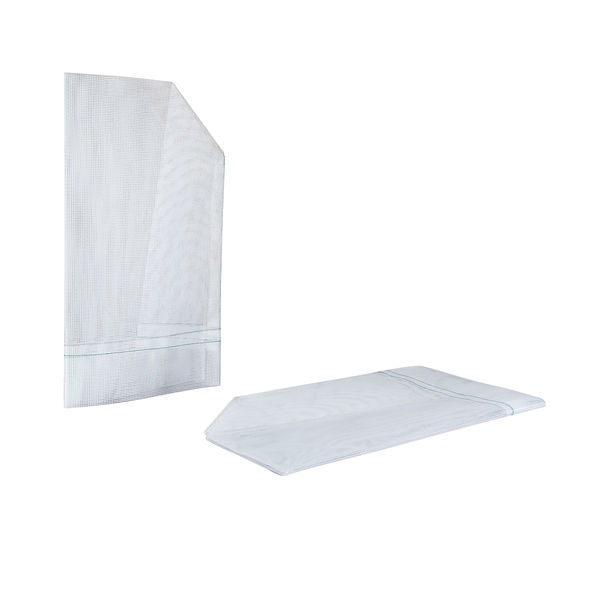

Filter cloth and fleece

490 x 290 x 190 mm

60 µm

5 pcs

95017302

Filter cloth and fleece

490 x 290 x 190 mm

100 µm

5 pcs

95017303

Filter cloth and fleece

490 x 290 x 190 mm

800 µm

5 pcs

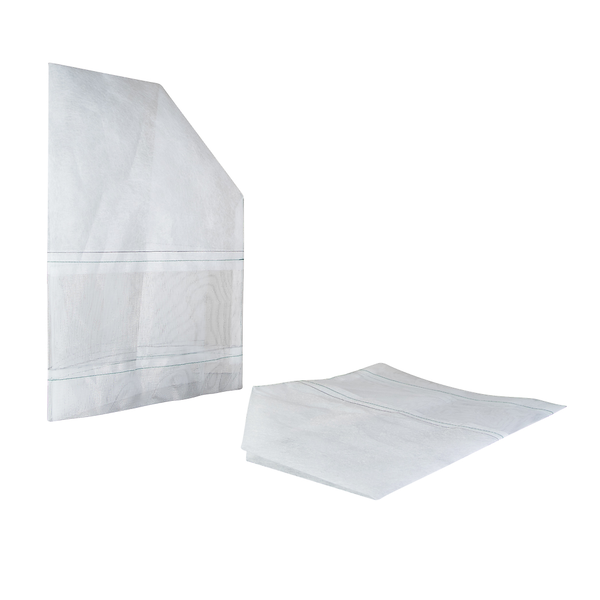

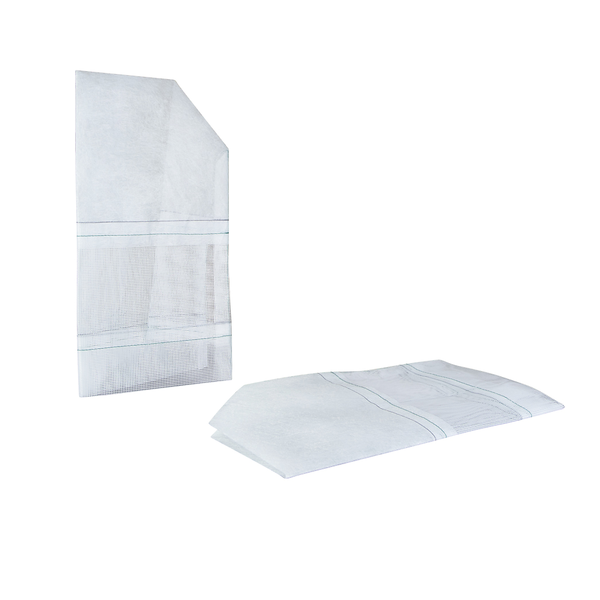

for recirculation cooling system 45 Ltr.
(until year of construction 2012)

Dimensions

Mesh size

95017304

Filter cloth and fleece

290 x 150 x 190 mm

60 µm

(until year of construction 2012)

5 pcs

95017305

Filter cloth and fleece

290 x 150 x 190 mm

100 µm

(until year of construction 2012)

5 pcs

95017306

Filter cloth and fleece

290 x 150 x 190 mm

800 µm

(until year of construction 2012)

5 pcs

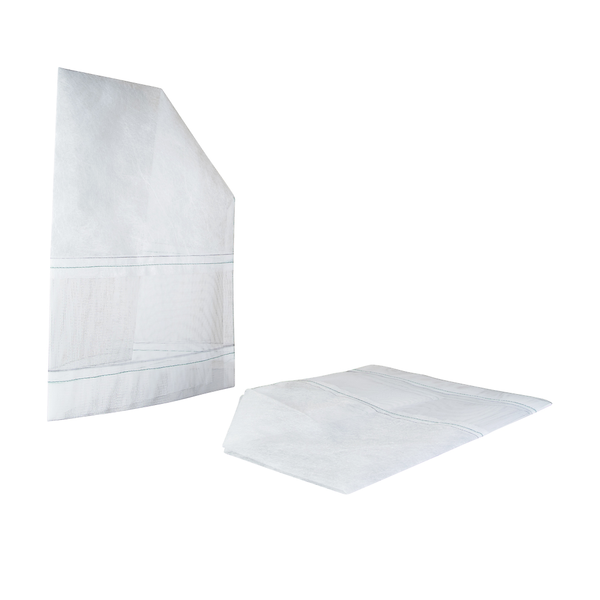

for recirculation cooling system 45 Ltr.
(from year of construction 2013)

Dimensions

Mesh size

95017307

Filter cloth and fleece

250 x 200 x 155 mm

60 µm

(as of year of construction 2013)

5 pcs

95017308

Filter cloth and fleece

250 x 200 x 155 mm

100 µm

(as of year of construction 2013)

5 pcs

95017309

Filter cloth and fleece

250 x 200 x 155 mm

800 µm

(as of year of construction 2013)

5 pcs

Filter Basket

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

Dimensions (WxHxD)

Z5800008

Filter Basket

140 x 80 x 200 mm

1 pc

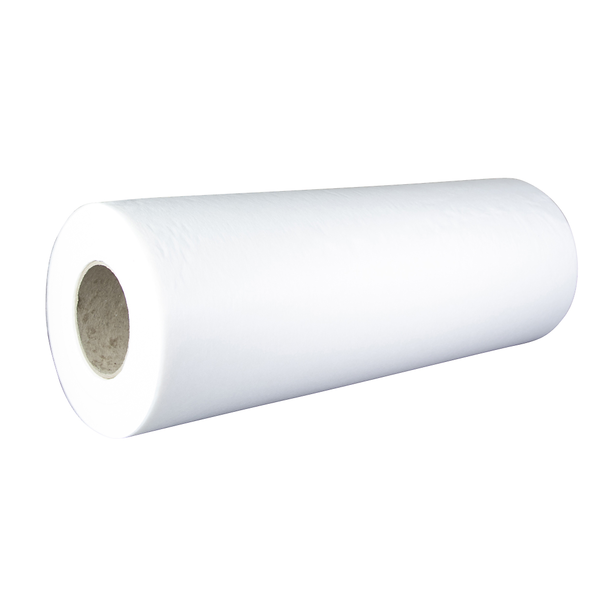

Filter fleece for belt filter systems

for belt filter system BFA 285

Length x Width

92008780

Filter fleece roll, coarse, 150 µm

100 m x 710 mm

1 pc

for belt filter system BFA 100/130

Length x Width

95001696

Filter fleece roll, coarse, 150 µm

100 m x 420 mm

1 pc

other sizes on request

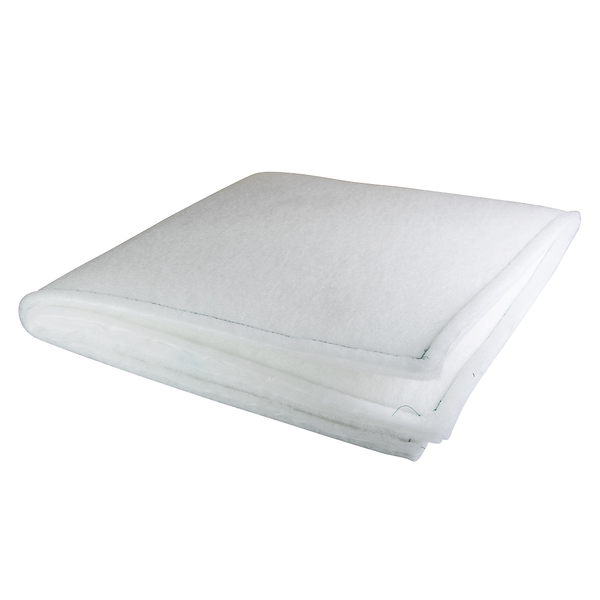

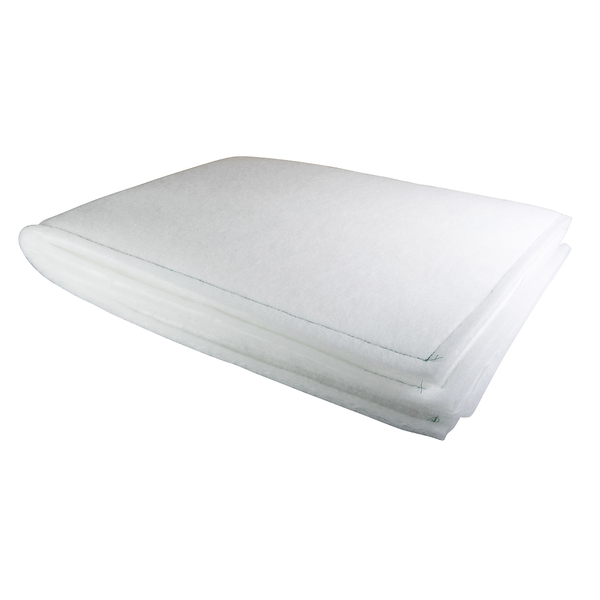

Filter fleece mat for recirculation
cooling systems

for Qcut 800 A (Brillant 2000)

Length x Width

95016233

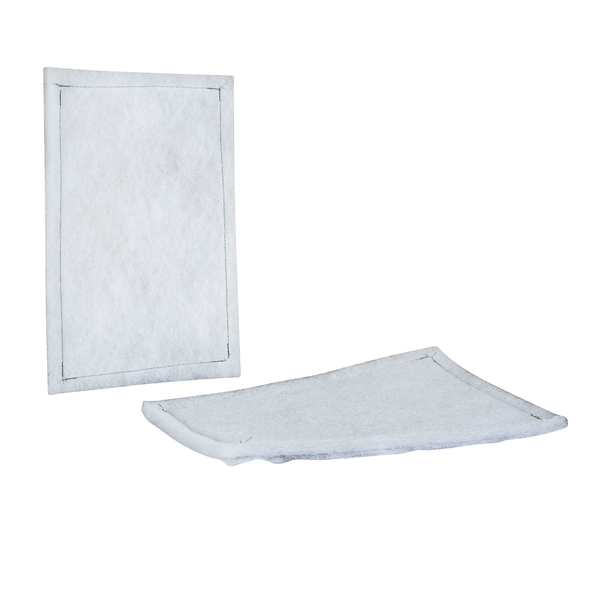

Filter fleece mat

940 x 720 mm

5 pcs

for Qcut 600 A (Brillant 285)

Length x Width

95016231

Filter fleece mat

724 x 720 mm

5 pcs

for recirculation cooling system 15 Ltr.

Length x Width

95017314

Filter fleece mat

235 x 148 mm

5 pcs

Verbruiksmaterialen voor perfecte metallografische preparatie

Vraag een vrijblijvende offerte aan!

Algemene Aanvraag

Silicon carbide precision cut-off wheels

• for non-ferrous metals

Reduction ring

Aluminum oxide precision cut-off wheels

Fine-grained• for universal application of materials of higher hardness• precise cuts and high surface quality• optimal for delicate samples and sensitive materials

Coarse-grained• for universal use with lower hardness materials• ideal for rough geometries and mounted sample material• fast and efficient cuts

Diamond precision cut-off wheelsBond: Bronze

• for universal application and carbides

• for glass, minerals as well as brittle and hard ceramic materials

• for hard metals and hard ceramic materials

• for assembled printed circuit boards and filigree component geometries

• for mounted samples, composites, CFRP, GFRP and plastics

CBN precision cut-off wheelsBond: Bronze

• for composites and rigid materials

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Premium silicon carbide cut-off wheelsBond: Resin

Type NF-A, Purple• for non-ferrous metals (30-300HV)

Type Ti-A, Pink • for titanium and alloys, refractory metals (30-300 HV)

Type FS-A, Red• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type FS-B, Orange • for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-FR, fabric reinforced• for medium soft to hard steels (250-600 HV)• > 30% wear reduction• ideal for manual cutting

Type FS-C, Yellow• for medium hard steel (300-550HV), case hardened, nitrided steels

Type FS-D, Green • for hard steels (400-700HV), annealed, carburised steels

Type FS-E, Blue • for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black • for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Premium diamond cut-off wheelsBond: Bronze

• for ceramic materials

• for composite materials (hard/soft combinations)

Premium diamond cut-off wheelsBond: Resin

• for hard metals, for materials with high hardness (>700 HV)

Premium CBN cut-off wheelsBond: Bronze

• for Nickel and Cobald based alloys

Aluminum oxide cut-off wheelsBond: Resin

Type C• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type D• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type I • ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

ATM-CoolCut, environment- and user-friendly

Anti corrosion coolant for polymers and composites

Anti corrosion coolant, standard

Cooling agent additives

ATM-CoolAdd CU

Defoaming agent

ATM-PreClean

Accessories for maintenance and care of coolants

Maintenance and testing set

Accessories for maintenance and testing set

Accessories for maintenance and care of cut-off machines

Corrosion protection- and care spray

Anti-fog spray

Accessories for cut-off wheels

Dressing stone

Filter inserts

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 / Qcut 500 A (Brillant 275) / Brillant 280

for recirculation cooling system 45 Ltr. (until year of construction 2012)

for recirculation cooling system 45 Ltr. (from year of construction 2013)

Filter Basket

hanging basket made of stainless steel for the collection of the chip abrasion• can be hooked into 45 liter recirculating cooling unit

Filter fleece for belt filter systems

for belt filter system BFA 285

for belt filter system BFA 100/130

Filter fleece mat for recirculation cooling systems

for Qcut 800 A (Brillant 2000)

for Qcut 600 A (Brillant 285)

for recirculation cooling system 15 Ltr.

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Diamond precision cut-off wheels
Bond: Bronze

CBN precision cut-off wheels
Bond: Bronze

Premium silicon carbide cut-off wheels
Bond: Resin

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Premium diamond cut-off wheels
Bond: Bronze

Premium diamond cut-off wheels
Bond: Resin

Premium CBN cut-off wheels
Bond: Bronze

Aluminum oxide cut-off wheels
Bond: Resin

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 /
Qcut 500 A (Brillant 275) / Brillant 280

for recirculation cooling system 45 Ltr.
(until year of construction 2012)

for recirculation cooling system 45 Ltr.
(from year of construction 2013)

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

Filter fleece mat for recirculation
cooling systems
