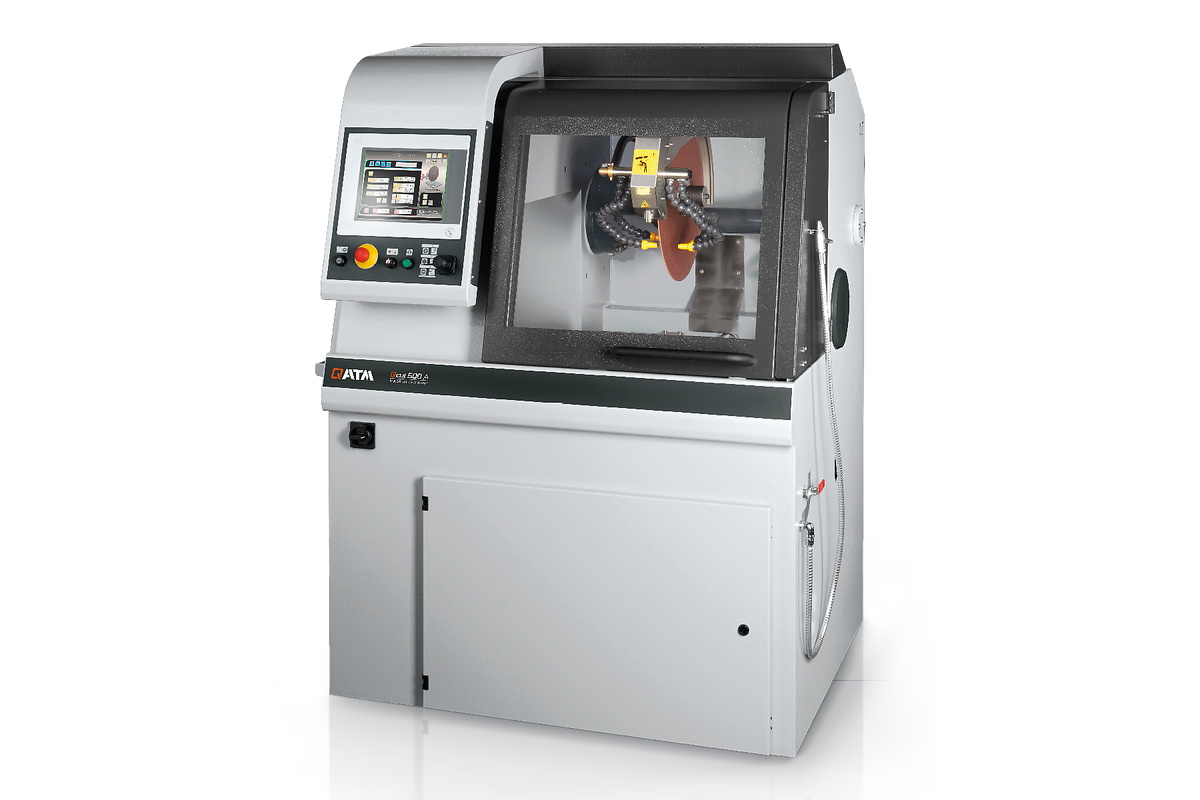

The universal wet cut-off machine Qcut 500 A meets the highest of demands on space available and possibilities for cutting with its innovative concept for design, construction and operation. The automatic horizontal table (X-axis) and cutting wheel movement (Y-axis) can reach up to 80 mm/ sec. through highly dynamic axis drives in rapidrun.

  • Parallel setting of the wheel guard during vertical cutting increases cutting capacity
  • Large front and hinged door with safety lock for access to the machine table
  • Longitudinal and cross T-slots on the machine table
  • Recirculating cooling and automatic central lubrication integrated into the robust aluminum body

Control

A wide range of cutting procedures is at your disposal for the very best cutting results. Through the combination of this unlimited range of positions, series cuts or differing cut sequences can be made into reality - all made possible by such a large variety of positions. The cutting process is rightly supported by controlled cut-off wheel revolutions. Control of the cutting speed and a soft start control serve additionally for an economical cutting feed. Manual control commands in the X-/Z-/Y-axes are also possible using an industrial joystick.

Types of cut

Travel and cutting wheel offer a wide-ranging repertoire of types of cut through different combinations. In addition to the linear diagonal cut, the layer and segment-cuts are recommended for gentle cuts. The layer-cut is well-suited for cutting taller and longer objects as well as solid material. The segment-cut is especially suitable for large objects and hard materials.

Operation

Touch-Screen display for the QATM-Software control is easy to read thanks to smart phone technology and even easier to operate. Compact program sequences are easy to compile and therefore enable automated, password-secured program sequences. Update and back-up possible via USB.

Cut optimization

In addition to the type of cut, variable pulse-cut feed can also be selected. Rhythmic pulsed feed ensures regular cooling and removal of cutting debris from the sample.

Remote maintenance

Using your existing broadband Internet connection, QATM provides an online fault diagnosis and operator support.

Laser alignment aid

With line laser you can display the scheduled cut on the sample. This helps to define the exact cutting position.

Productvoordelen

  • Automatische horizontale beweging (X-as) - let op variatie van apparatuur
  • Verticale beweging (Y-As)
  • Automatische beweging van snijwiel (Z-as) - let op variatie van de apparatuur
  • Hoog dynamische aandrijving tot 80 mm/sec.
  • Multi-position process MPP

  • Digitale belastingscontrole
  • Variabele puls-cut toevoer
  • Variabele snelheid
  • Flens met keramische bescherming
  • Snijkamer belichting met LED flex light
  • Manuele regeling van alle assen met joystick
  • Touch-screen display met QATM-software controle
  • Optisch navigatiemenu voor het opstellen van precieze programmareeksen met positie stappen en snijmodi
  • Opslag van onbeperkt aantal programma's met paswoord; update en backup via USB
  • service/support is beschikbaar via controller (ISDN-verbinding met router ter plaatse vereist)

  • Schuifdeur met groot raam gemaakt van krasvrij veiligheidsglas
  • Gepoedercoate, solide aluminium behuizing
  • Zijopeningen links en rechts voor doorlopende delen
  • Alle onze klemsystemen zijn universeel te gebruiken met de Brillant
Recirculation cooling unit

Recirculation cooling unit

  • integrated, mobile
  • multi-chamber filtration

Belt filter system 285

  • Tank: 285 ltr.
  • Filtering capacity: 100 ltr./min (referring emulsion)
  • Pump: 100 ltr./min
Recirculation cooling unit

Centrifugal Seperator

  • removes coolant mist
  • purifies the air and increases visibility
  • exhaust power 425 m3/h or 500 m3/h depending on power supply

Perfect cutting - Consumables by Qprep

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

Snel, krachtig, flexibel - Klemsystemen van Qtools

Onze innovatieve klemsystemen worden gebruikt om werkstukken veilig en nauwkeurig vast te klemmen om exact door te slijpen of te polijsten. Er is een uitgebreid pakket aan verschillende klemsystemen beschikbaar, die ontworpen werden voor specifieke toepassingen en werkstuk-afmetingen.

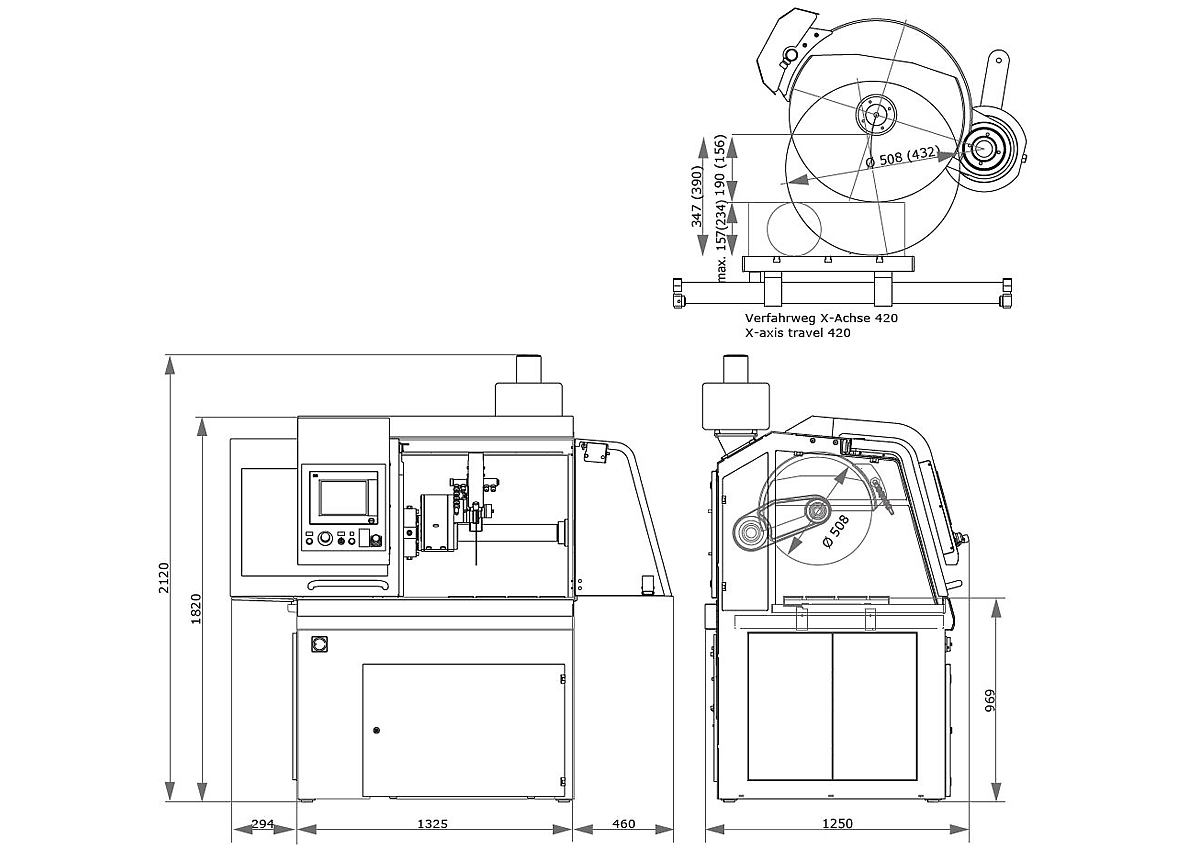

Kenmerken

Doorslijpschijfup to ø 508 mm/20"
Max. cutting capacityø 190 mm
Afmeting flens voor slijpschijfø 32/40 mm
X-as automatisch420 mm
Y-as automatisch280 mm
Z-axis automatic (option)200 mm
Precisie Z-as0.1 mm
Table with Z-axis WxD550 x 500 mm, stainless
Table without Z-axis WxD700 x 500 mm, stainless
T-slot12 mm
Snelheidvariable 1000-2800 /1000-2400 rpm
Aansluitvermogen30 kVA
Vermogen aanfrijving (hoofdaandrijving)15 kW, S1 operation
B x H x D1300 x 1820 x 1250 mm
Gewicht~ 1000 kg (depends on equipment)

Onder voorbehoud van technische wijzigingen en eventuele fouten
