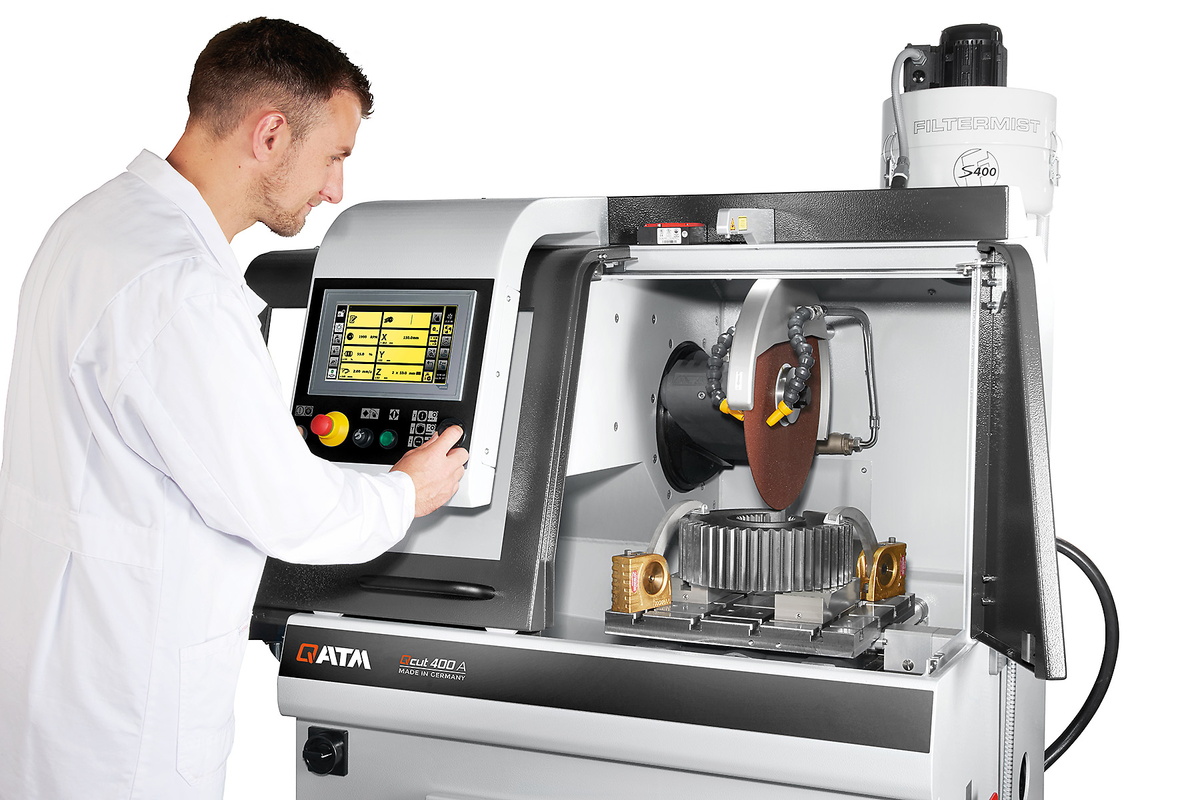

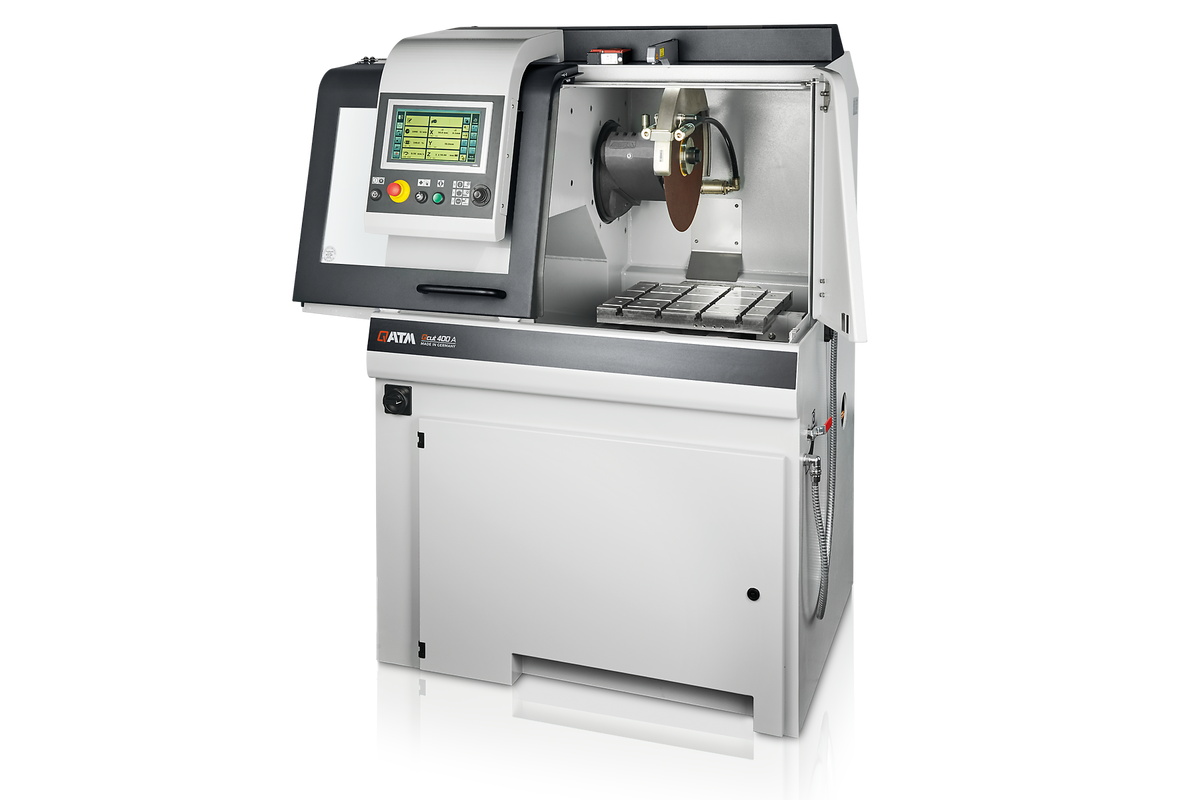

The universal wet-abrasive cut-off machine Qcut 400 A with automatic travel and cut-off allows precise, soft touch cutting with 2 axes in arbitrary directions (Y/X axis) and can be equipped with an automatic or manual Z-axis for parallel serial-cuts (option). The newly developed intuitive user software with graphical LCD interface makes the automatic process sequence easy and clear.
The Z-axis is integrated in the table. This allows keeping the cutting height at the same level. The automatic cross feed with serial cutting function produces precise parallel cuts.
Integrated safety protection only allows the automatic doors to be opened when the cutting wheel has stopped rotating.
With the optional line laser the cutting line can be projected on the sample. This helps to define the exact cutting position.
The optional Rotation Tool features a vertical rotary feed parallel to the wheel with angle input controlled via software.
With the electronic control, all cutting parameters can be saved and loaded again. Maintenance tasks can also be stored in a customer-specific manner. During the automatic cutting process, all parameters such as feed speed, cutting force etc. can be modified.
By pressing the start button, the main motor and the feed are activated. The integrated cut detection ensures a constant cutting behavior, even when the cutting disk wears during sectioning. The feed speed is automatically decreased when an overload occurs during the cutting process.
Especially when the material is thick and difficult to cut, the adjustable automatic pulsed-cut offers advantages such as gentle cutting and optimal cooling of the intersection area.
The feed speed automatically decreases when the cutting force reaches a pre-defined limit. This protects the machine, sample and clamping tools from overloading.
Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Onze innovatieve klemsystemen worden gebruikt om werkstukken veilig en nauwkeurig vast te klemmen om exact door te slijpen of te polijsten. Er is een uitgebreid pakket aan verschillende klemsystemen beschikbaar, die ontworpen werden voor specifieke toepassingen en werkstuk-afmetingen.
| Doorslijpschijf | tot ø 406 mm/16" |
| Max. cutting capacity | ø 150 mm |
| X-as automatisch | 345 mm |
| Y-as automatisch | 200 mm |
| Z-as handmatig of automatisch (optie) | 150 mm |
| Precisie Z-as | 0.1 mm |
| T-slot | 12 mm |
| Snelheid | variable |
| Aansluitvermogen | 17 kVA |
| Vermogen aanfrijving (hoofdaandrijving) | 7 kW, S1 |

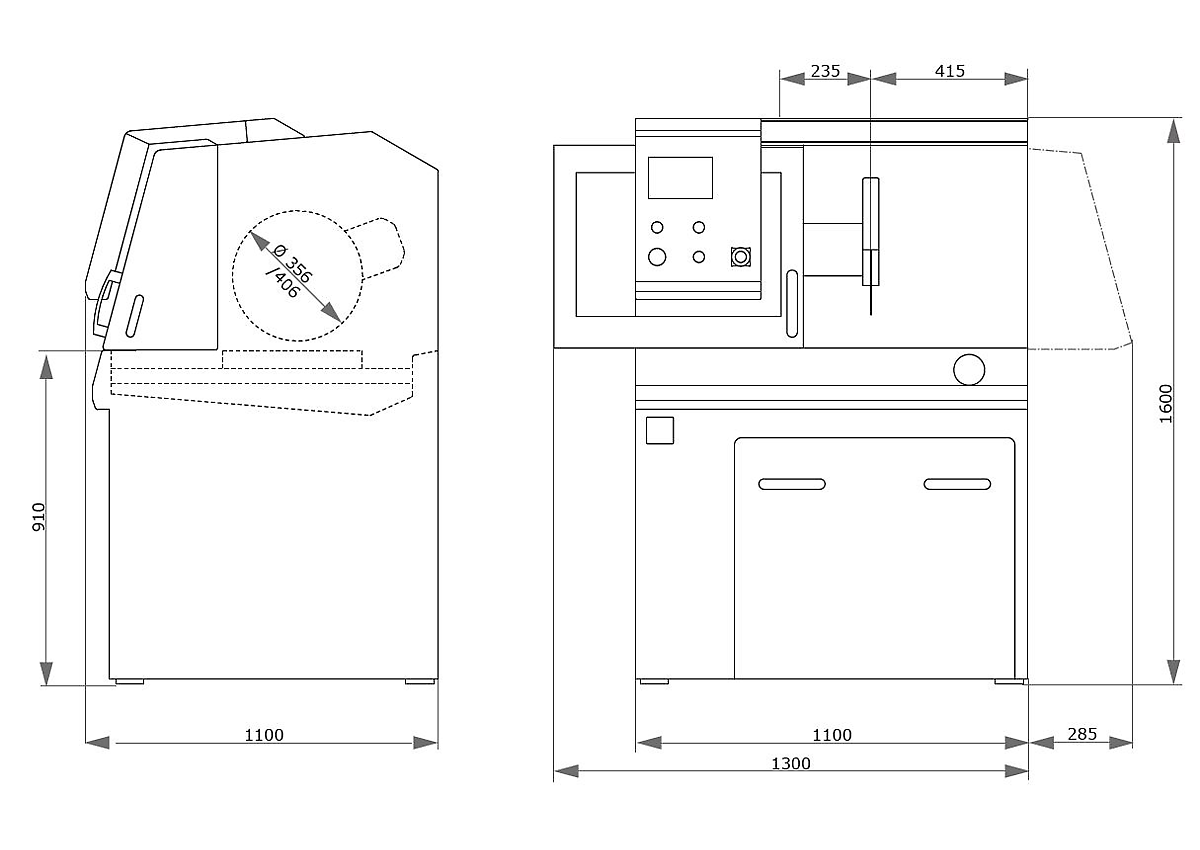

| B x H x D | 1100 x 1610 x 930 mm |
| Gewicht (afhankelijk van apparatuur) | ~ 480 kg |
Onder voorbehoud van technische wijzigingen en eventuele fouten
