Qtool 60 Series Quick clamping tools

Highlights

  • For medium-sized components Ø 60 mm | W = 100mm
  • Eccentric clamp for fast and powerful clamping
  • Adjustable rear stop (50mm) for optimal position during cutting
  • Diverse jaw program
  • Optionally expandable with cross stop

Qtool 60

Clamping range Jaw width Jaw height Clamping force
Qtool 60 0 - 100 mm 70 mm 32 mm ca. 2000 N

Compatibility Qtool 60 Series

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230
Direct mounting via
T-slot nut / spacing

8 mm / 60 mm

12 mm / 75 mm

12 mm / 100 mm

12 mm / 75 mm

12 mm / 75 mm
via Easy plate
S/M

S/M

M

S/M

S/M

Through extensive testing, we are able to provide the right clamping solution for every application.

Clamping jaws for Qtool 60

With the wide range of clamping jaws, the Qtools can be individually customized to the components to be cut:

Round components

  • Can be clamped precisely and securely using the prismatic jaws or the bevelled jaw
  • The geometry of the jaws creates a defined 3-point contact between the workpiece and the clamping device
  • This prevents the components from slipping
  • Round components can also be clamped vertically using the cross prism and cutted above the clamping device

Large components

  • The high jaws offer a larger clamping surface for geometrically large components

Clamping the cut-off side of the component

  • The cut-off side of the component can also be clamped using the slotted jaws
  • This greatly reduces burr formation during cutting and avoids subsequent grinding of the burr before mounting in a mounting press

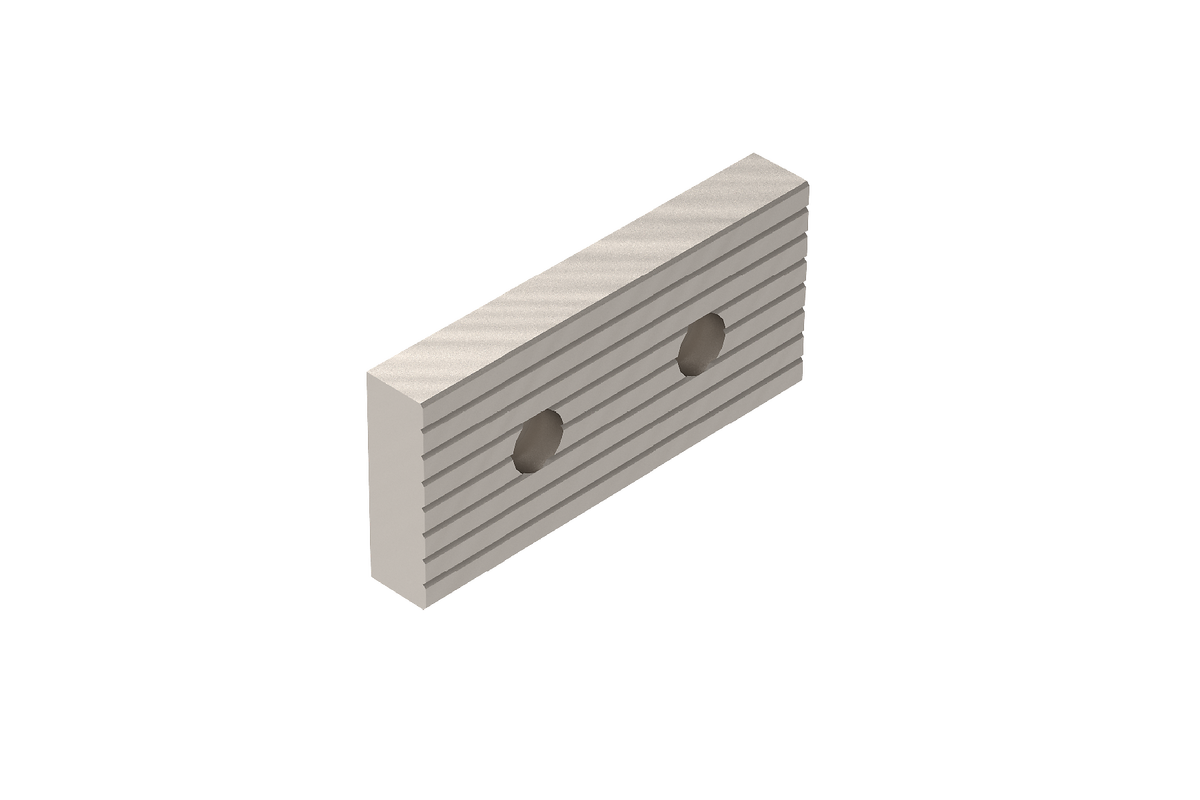

Clamping Jaw, Standard (with Qtool included)

  • Standard jaws
  • Jaw height: 32 mm
  • Jaw width: 70 mm
  • Scope of delivery: 1 jaw (spare jaw)

Clamping jaw, bevelled

  • Jaw height: 32 mm
  • Jaw width: 70 mm
  • 5° bevelled clamping surface
  • Clamping jaw for pressing down round material
  • For round components up to Ø 60 mm
  • Scope of delivery: 1 jaw (as counter jaw we recommend the clamping jaw standard (included in the scope of delivery Qtool)

Clamping jaw, high

  • Jaw height: 60 mm
  • Jaw width: 70 mm
  • For large components
  • Scope of delivery: 2 Jaws

Clamping jaw, high slotted

  • Jaw height: 60 mm
  • Jaw width: 100 mm
  • Sample remains clamped even after cutting
  • Scope of delivery: 2 Jaws

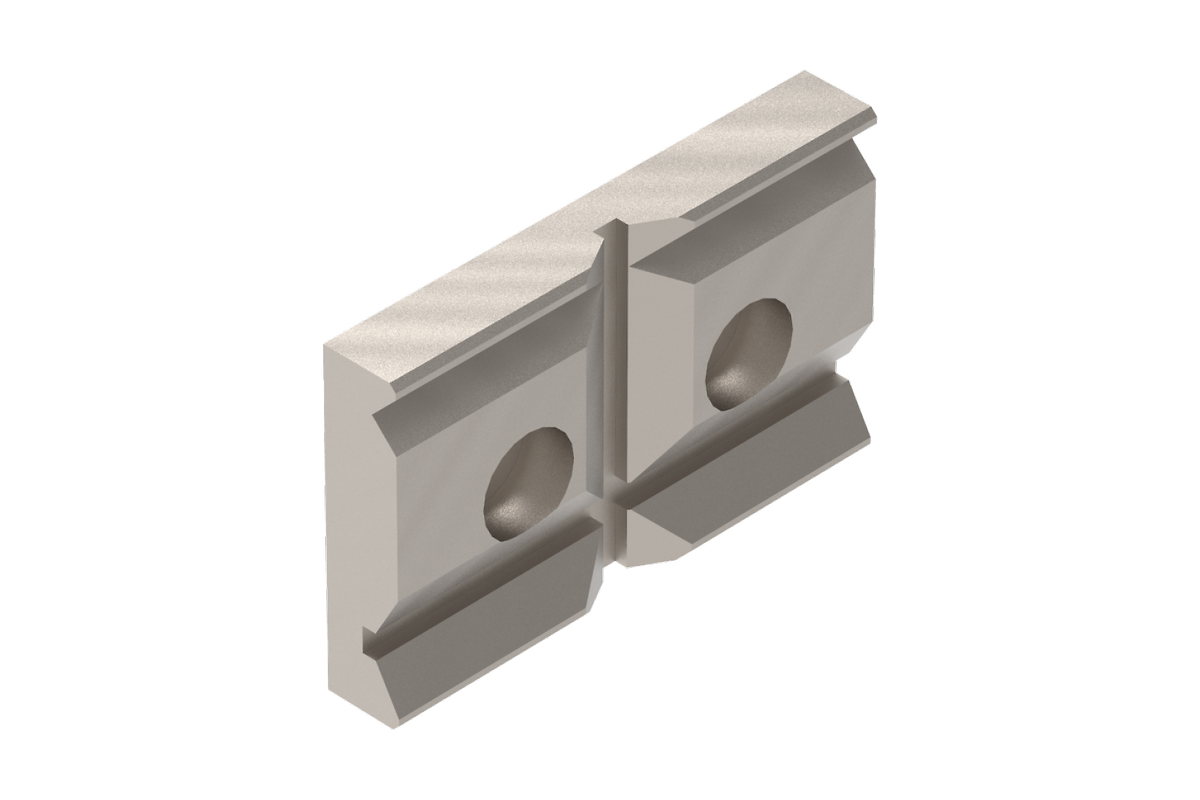

Clamping jaw, cross prism

  • Jaw height: 32 mm
  • Jaw width: 70 mm
  • Horizontal and vertical prism for clamping round components (3-point support)
  • Horizontal prism max, Ø 18 mm
  • Vertical prism max. Ø 32 mm
  • Scope of delivery: 1 jaw (as a counter jaw we recommend the clamping jaw standard (included in the scope of delivery Qtool)

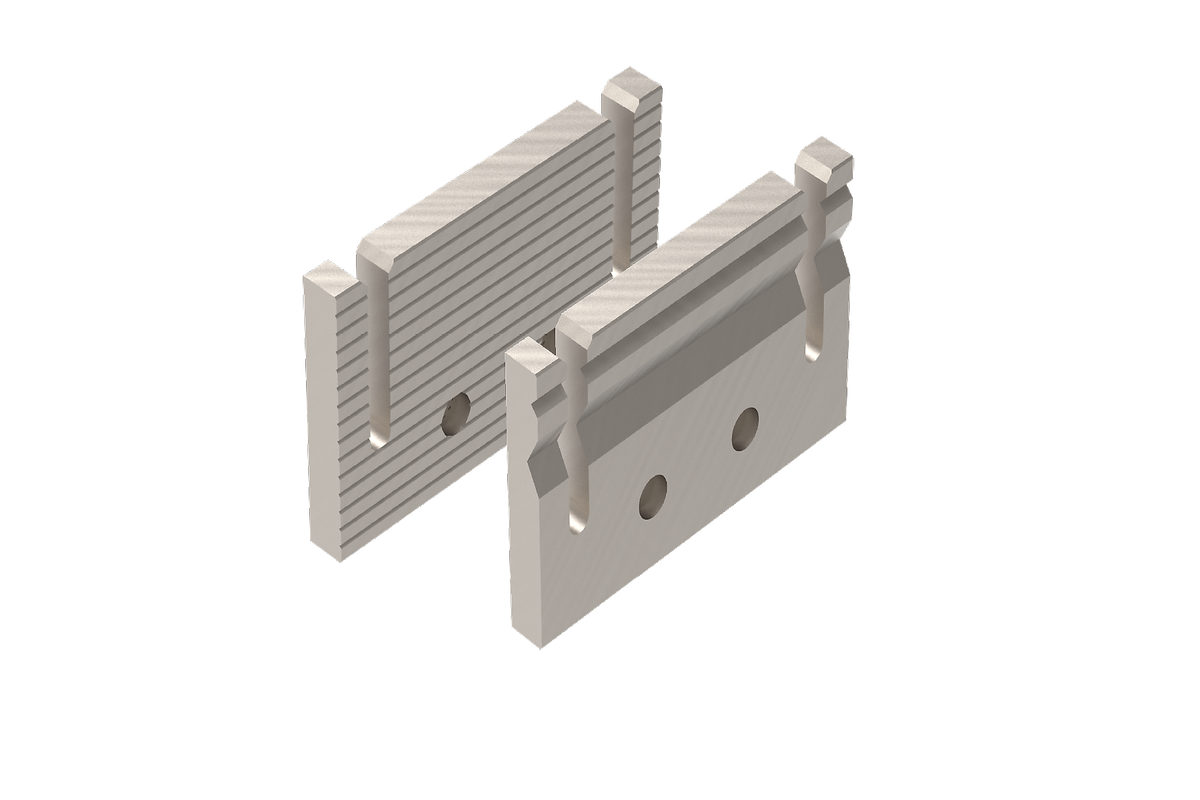

Clamping jaw, high, slotted, with prism

  • Jaw height: 60 mm
  • Jaw width: 100 mm
  • Horizontal prism max. Ø 17 mm - for clamping round components (3 point support)
  • Sample remains clamped even after cutting
  • Scope of delivery: 2 jaws (1 slotted jaw smooth, 1 slotted jaw with prism)

Workpiece stop

For repetitive cuts of components with the same geometry, the component can be reproducibly positioned in the same way using the workpiece stop.

  • Jaw mountable on Qtool 60, 80, 80 VARIO left or right
  • Stop range up to 120 mm

Precision clamping devices Toebehoren

Easy clamping plate S

Easy clamping plate S with rotating function

Easy clamping plate S with rotating function

Easy Adaption Qtool 40-60

Easy clamping plate M

Easy Adaption Qtool 40-60

Easy Adaption Qtool 40-60

Multi-Tower

Multi-Tower

Swivel unit Qtool 40-60

Swivel unit Qtool 40-60

Swivel unit Qtool 40-60

Swivel unit Qtool 60-80
