Qtool 40 Series Quick clamping tools

Highlights

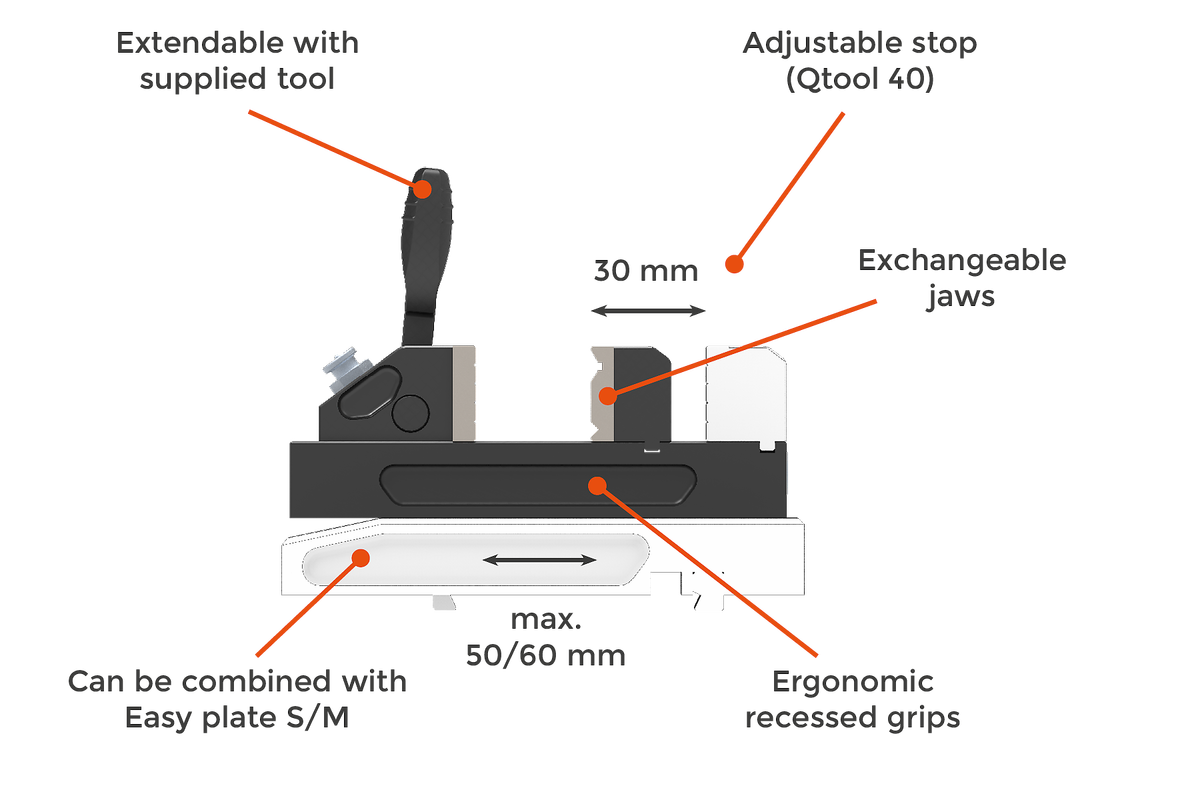

  • For small components: Ø 40 mm | W = 60 mm
  • Screw clamp (Qtool 40 S) with star handle to manually dose the clamping force
  • Eccentric clamp (Qtool 40) for fast and powerful clamping
  • Rear stop adjustable for optimal position during cutting
  • Diverse clamping jaw program

Qtool 40

Qtool 40 S

Qtool 40 S

Clamping range Jaw width Jaw height Clamping force
Qtool 40 0 - 60 mm 50 mm 25 mm ca. 1000 N
Qtool 40 S 0 - 50 mm 50 mm 25 mm variable

Compatibility Qtool 40 series

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230
Direct mounting via
T-slot nut / spacing

8 mm / 60 mm
- - - -
via Easy plate
S/M

S/M

S/M

S/M

S/M

Through extensive testing, we are able to provide the right clamping solution for every application.

Clamping jaws for Qtool 40 series

With the wide range of clamping jaws, the Qtools can be individually customized to the components to be cut:

Round components

  • Can be clamped precisely and securely using the prismatic jaws or the bevelled jaw
  • The geometry of the jaws creates a defined 3-point contact between the workpiece and the clamping device
  • This prevents the components from slipping
  • Round components can also be clamped vertically using the cross prism and cutted above the clamping device

Large components

  • The high jaws offer a larger clamping surface for geometrically large components

Clamping the cut-off side of the component

  • The cut-off side of the component can also be clamped using the slotted jaws
  • This greatly reduces burr formation during cutting and avoids subsequent grinding of the burr before mounting in a mounting press

Clamping Jaw, Standard (with Qtool included)

  • Standard jaws Qtool 40
  • Jaw height: 25 mm
  • Jaw width: 40 mm
  • Universal jaw
  • Scope of delivery: 1 jaw (spare jaw)

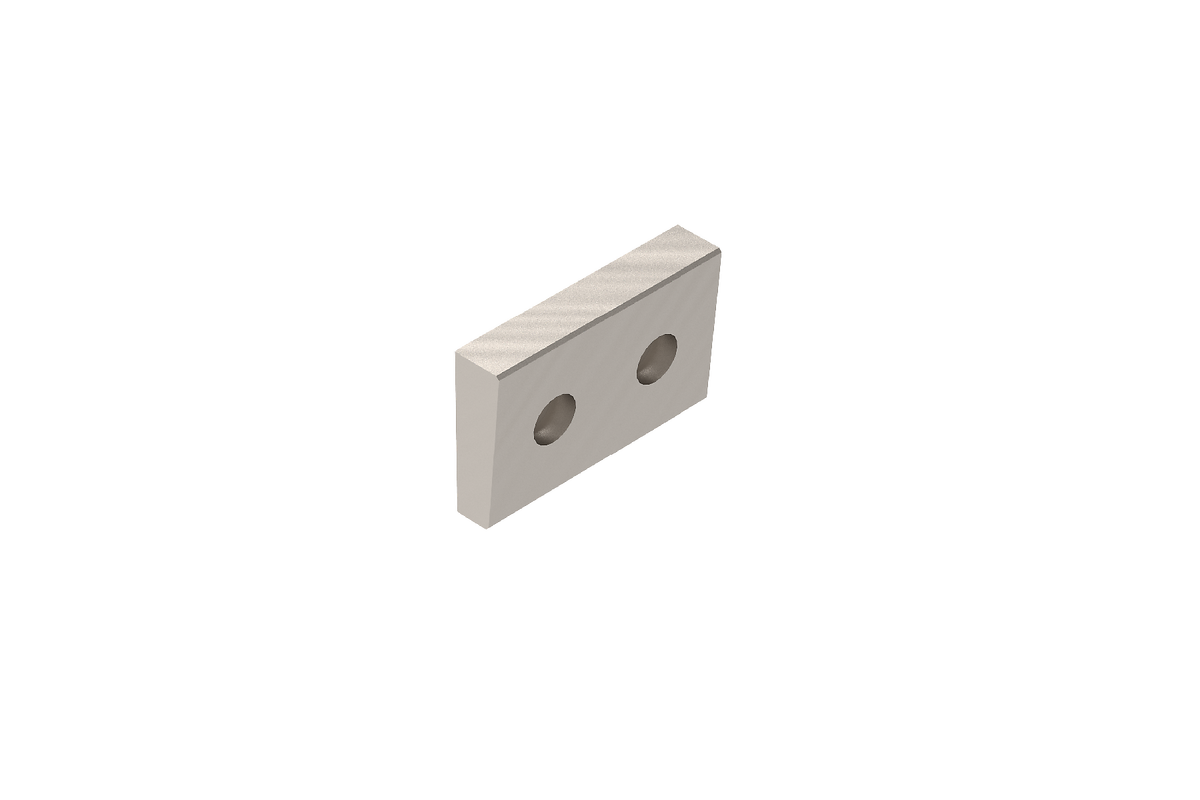

Clamping jaw, bevelled

  • Jaw height: 25 mm
  • Jaw width: 40 mm
  • 5° bevelled clamping surface
  • Clamping jaw for pressing down round material
  • For round components up to Ø 50 mm
  • Scope of delivery: 1 jaw (as counter jaw we recommend the clamping jaw standard (included in the scope of delivery Qtool)

Clamping jaw, high

  • Jaw height: 45 mm
  • Jaw width: 50 mm
  • Universal jaw for large components
  • Scope of delivery: 2 Jaws

Clamping jaw, high slotted

  • Jaw height: 45 mm
  • Jaw width: 80 mm
  • Separated component remains clamped even after cutting
  • Scope of delivery: 2 Jaws

Clamping jaw, cross prism

  • Jaw height: 25 mm
  • Jaw width: 40 mm
  • Horizontal and vertical prism for clamping round components (3-point support)
  • Horizontal prism max, Ø
  • Vertical prism max. Ø 17 mm
  • Scope of delivery: 1 jaw (as a counter jaw we recommend the clamping jaw standard (included in the scope of delivery Qtool)

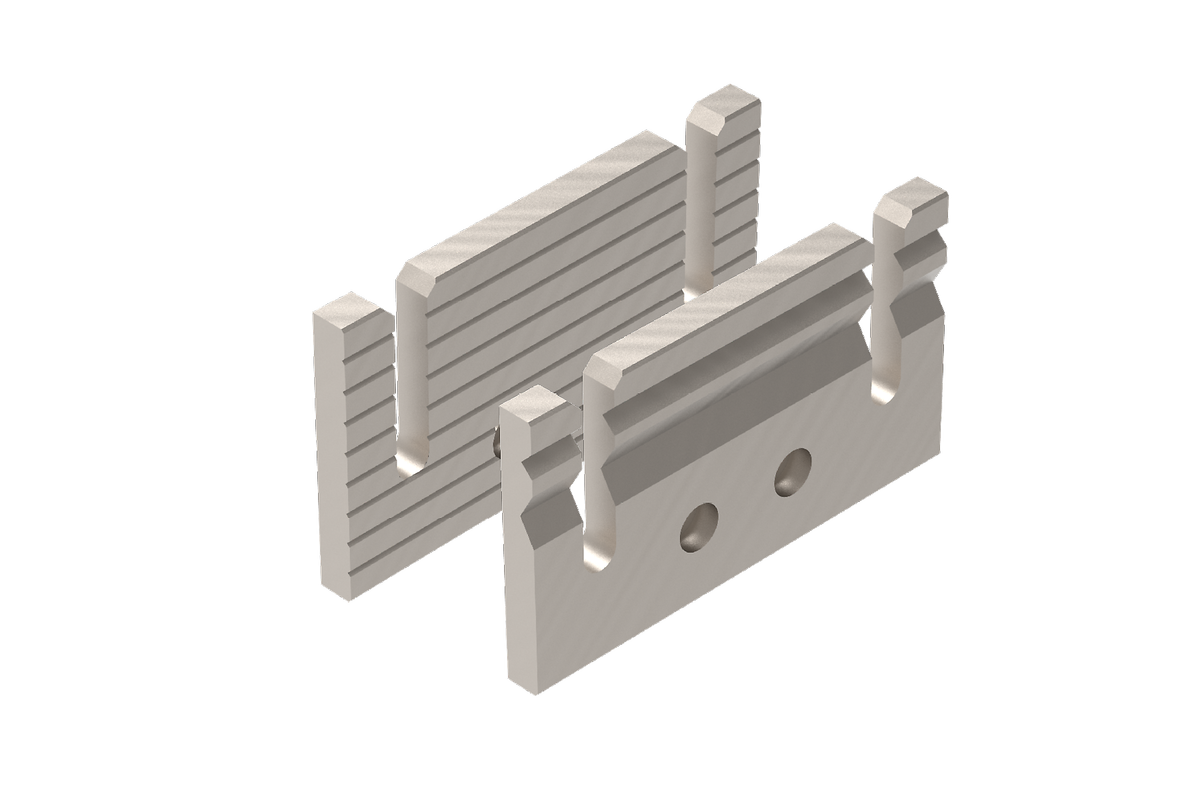

Clamping jaw, high, slotted, with prism

  • Jaw height: 45 mm
  • Jaw width: 80 mm
  • Horizontal prism max. Ø 17 mm - for clamping round components (3 point support)
  • Sample remains clamped even after cutting
  • Scope of delivery: 2 jaws (1 slotted jaw high standard, 1 slotted jaw with prism)

Precision clamping devices Toebehoren

Easy clamping plate S

Easy clamping plate S with rotating function

Easy clamping plate S with rotating function

Easy Adaption Qtool 40-60

Easy Adaption Qtool 40-60

Multi-Tower

Multi-Tower

Swivel unit Qtool 40-60

Swivel unit Qtool 40-60

Perfect cutting – Instruments by QATM

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

Do you already know which clamping unit you need? Then request a quote here!

Kennis-databank

Wilt u meer weten over de verschillende procedures, bezoek dan onze uitgebreide Knowledge Base.

Ons Knowledge Base artikel over doorslijpen bevat:

  • Typische methoden om materialen te prepareren
  • De verschillende metallografische sectietechnieken
  • Hoe een geschikte doorslijpschijf te kiezen

Sampling for metallographic analysis

Onder voorbehoud van technische wijzigingen en eventuele fouten
