Precision clamping devices

Suitable for regular and irregularly shaped samples. They can be used universally in the QATM adaptations (rotating device, Easy Adaption horizontal and vertical as well as the clamping arm).

Can be installed directly on:

  • Easy adaption vertical
  • Easy adaption horizontal
  • Rotation device type RD1 and RD2

Toebehoren

  • Easy clamping plate S with rotating function
  • Easy clamping plate S

Through extensive testing, we are able to provide the right clamping solution for every application.

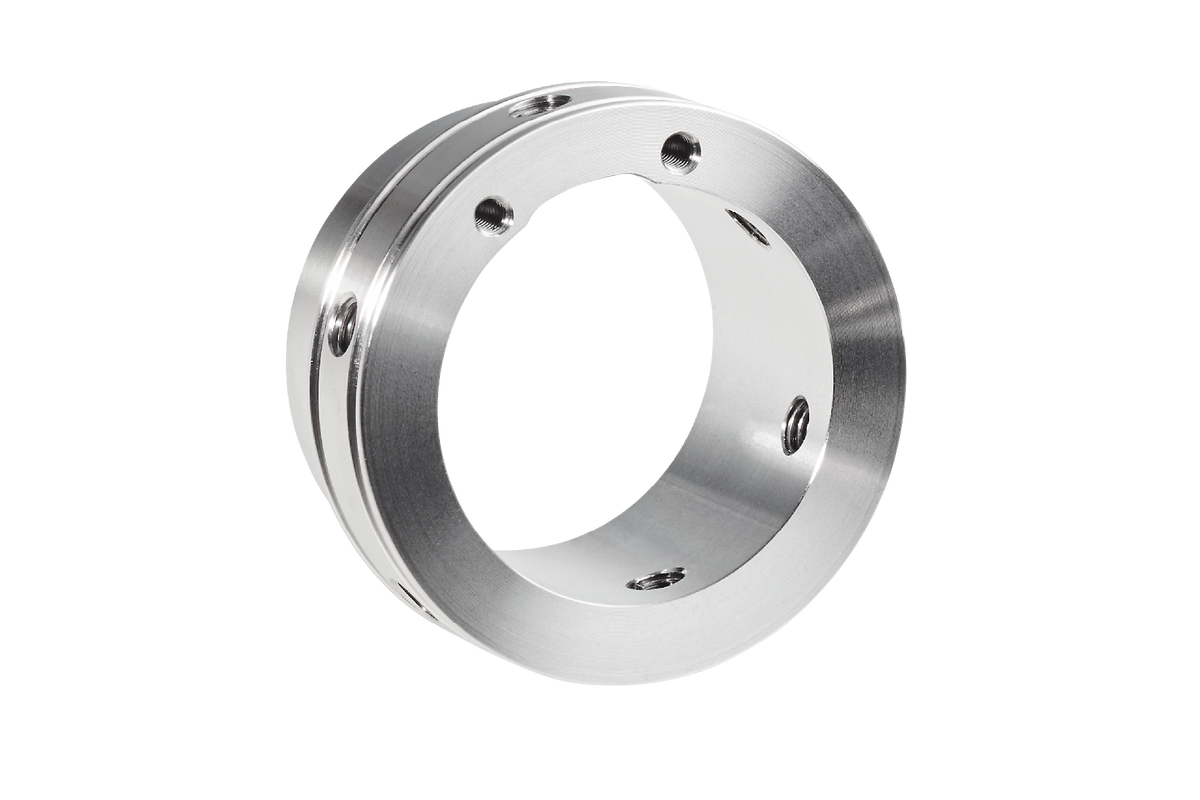

Sample Holder Standard (open)

Productvoordelen

  • For round or irregular samples
  • 3-point tension
  • Up to 6 fixing screws
  • Open for long, large round samples up to Ø 40 mm
  • Adapter Ø 50 mm

Sample holder standard (closed)

Productvoordelen

  • For round or irregular samples
  • 3-point tension
  • Up to 6 mounting screws
  • with fixed stop - depth 15 mm
  • for short, large round samples up to Ø 40 mm
  • Adapter Ø 50 mm

Sample Holder Flex

Productvoordelen

  • For round or irregular samples
  • 3-point tension
  • Up to 6 fixing screws
  • For installation into grinding and polishing machines
  • For specimens up to Ø 40 mm - depth 21 mm
  • Adapter Ø 50 mm

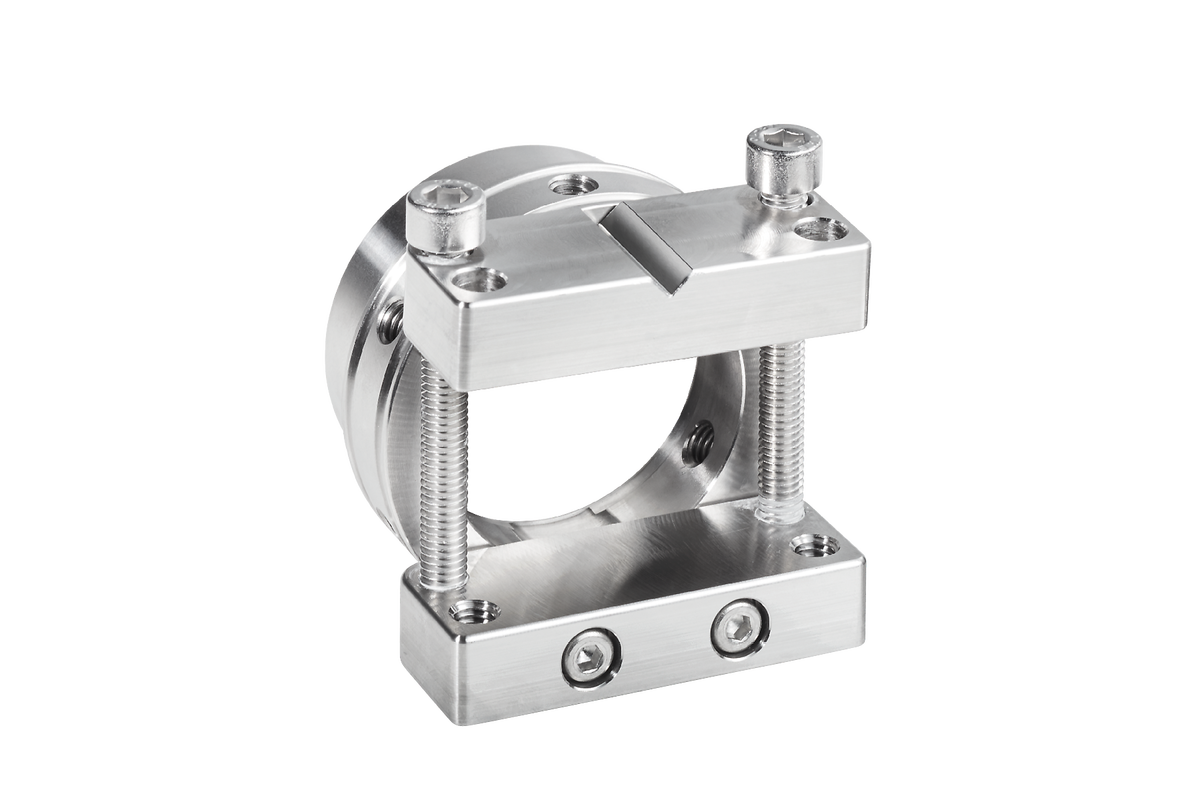

Sample Holder Parallel clamping vice (open)

Productvoordelen

  • Parallel clamping jaws
  • Variable span
  • for flat samples
  • for samples up to Ø 40 mm
  • Adapter Ø 50 mm

Sample Holder Parallel Clamping Vice (closed)

Productvoordelen

  • Parallel clamping jaws
  • Variable span
  • for flat samples
  • with fixed stop, depth 27 mm
  • for samples up to Ø 40 mm
  • Adapter Ø 50 mm

Drop Shape Sample Holder

Productvoordelen

  • For round or irregular samples (Ø 13 - Ø 40 mm)
  • 12 mm clamping depth
  • 3-point tension
  • Adapter Ø 50 mm

Universal clamping vice

Productvoordelen

  • For samples of any sample geometry, rings
  • Max. sample cross-section: 40 mm x 40 mm
  • 3-point tension
  • Adapter Ø 50 mm

Matrix clamping vice

Productvoordelen

  • For irregularly shaped samples
  • Max. clamping range: 0 - 40 mm
  • Adapter Ø 50 mm

Mini vice

Productvoordelen

  • Max. clamping range: 0 - 40 mm
  • Clamping range with prism jaw: 0 - 35 mm
  • Incl. prism jaw
  • Adapter Ø 50 mm

Double parallel vice

Productvoordelen

  • Parallel clamping jaws
  • Fixing a sample at two clamping points
  • Components remain clamped even after cutting
  • for cutting wheels up to Ø 150 mm
  • Max. clamping range:  0 - 40 mm
  • Adapter Ø 50 mm

Adapter with ball joint

Productvoordelen

  • Swivel device for aligning the sample to the cutting wheel
  • Can be combined with all clamping devices
  • Swivel range ±18°
  • Adapter Ø 50 mm

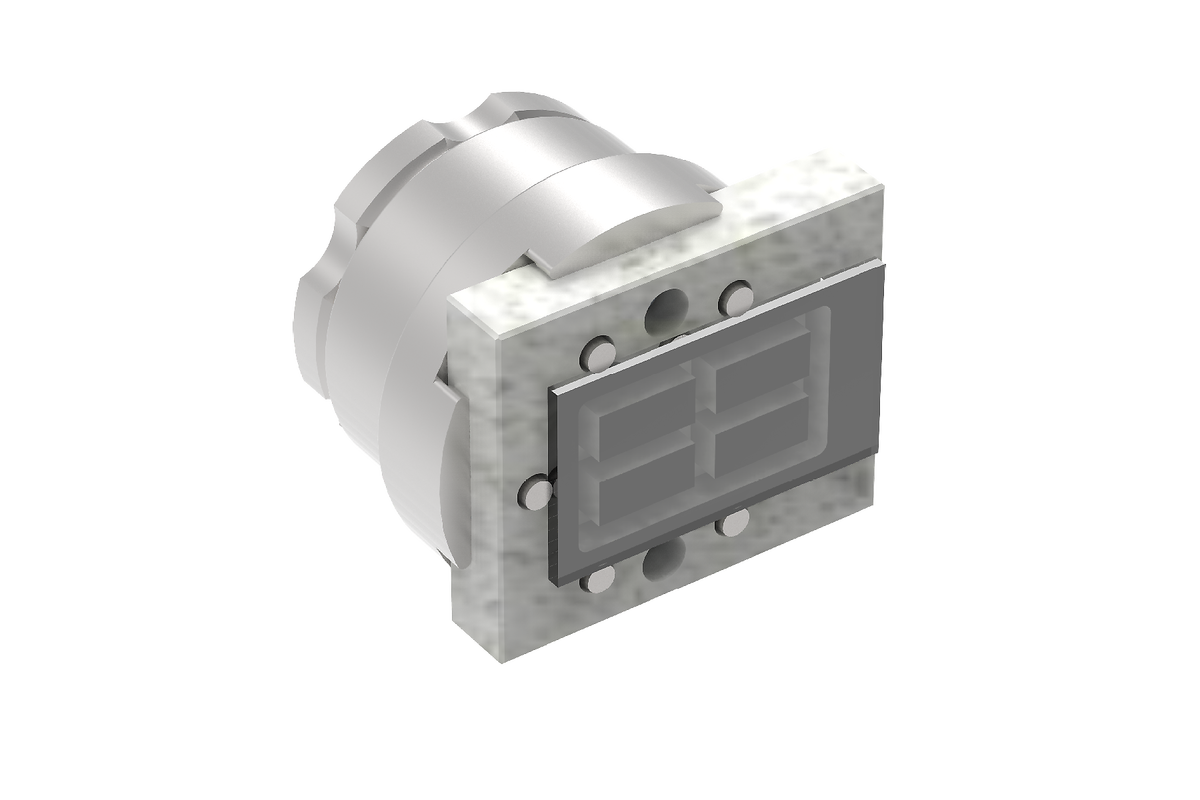

Vacuum clamping unit

Productvoordelen

  • For the preparation of plane-parallel sample surfaces
  • Suitable for clamping glass slides 28 mm x 48 mm
  • Stops can be recessed via an integrated handwheel for plan-parallel grinding of the ceramic stone.
  • A vacuum pump is required to generate the vacuum

  • For use on:
    • Qcut 150 A/M
      (clamping arm L required)
    • Qcut 200 A
      (Easy adaption vertical required)

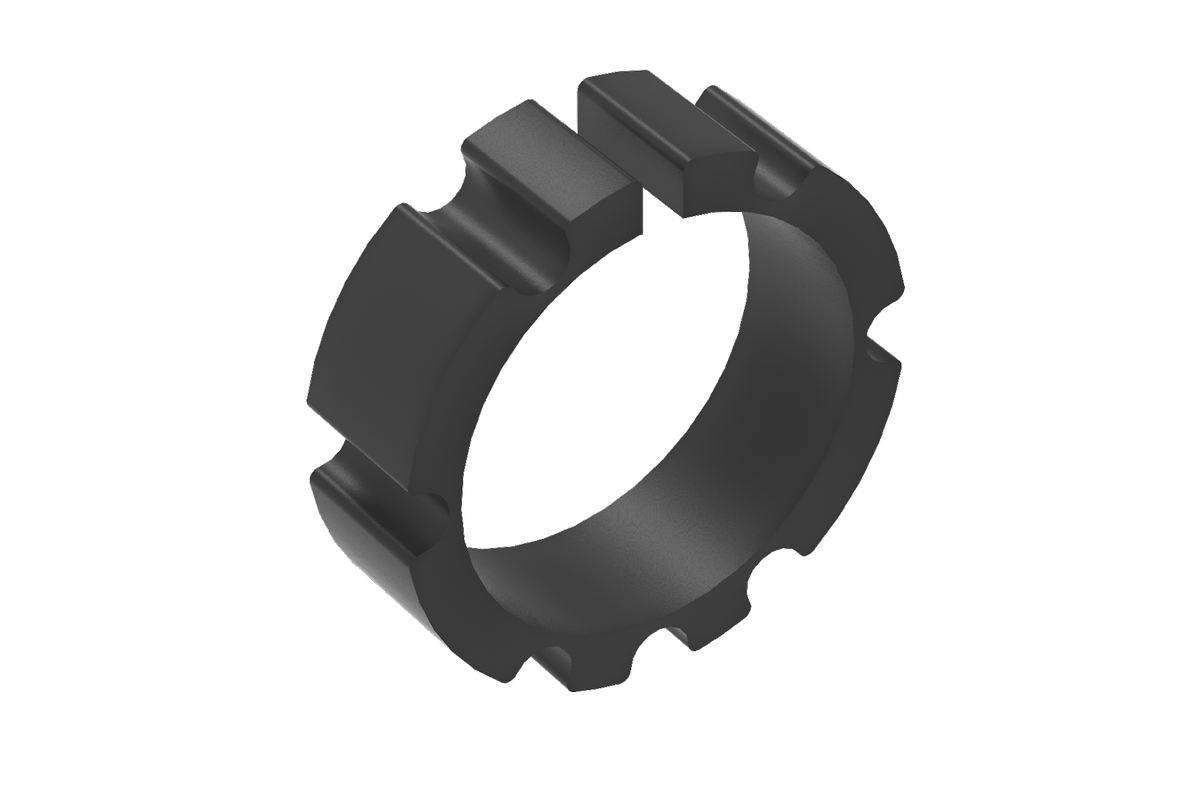

Reducer Ring

Productvoordelen

  • Reducer ring for direct clamping of mounted samples
  • Outer diameter Ø 50 mm
  • For mounted samples with Ø 25 mm, 30 mm, 40 mm, 1", 1 ¼", 1 ½
  • Can be used in rotary device and Easy adaption vertically / horizontally

  • For use on:
    • Qcut 150 A/M (clamping arm L required)
    • Qcut 200 A (Easy Adaption vertical required)



Hand Chuck

Productvoordelen

  • Available in 3 sizes
  • Clamping jaws can be used on both sides

  • Clamping range Ø 32 mm:
    - on the inner diameter of the component: 11 - 23 mm
    - on the outer diameter of the component: 1 - 32 mm

  • Clamping range Ø 44 mm:
    - on the inner diameter of the component: 13 - 48 mm
    - on the outer diameter of the component: 1 - 44 mm

  • Clamping range Ø 56 mm:
    - on the inner diameter of the component: 12 - 56 mm
    - on the outer diameter of the component: 1 - 56 mm


Precision clamping devices Toebehoren

Easy clamping plate S

Easy clamping plate S with rotating function

Easy adaption vertical

Easy adaption vertical

Easy adaption horizontal

Easy adaption horizontal

Rotation devices

Rotation devices

Perfect cutting – Instruments by QATM

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

Do you already know which clamping unit you need? Then request a quote here!
