Clamping range | Jaw width | Jaw height | Clamping force | |
Universal power clamping system 100/540 | 0 - 365 mm | 100 mm | 30 mm | 28 kN |
Compatible with cut-off machine | Qcut 400 A | Qcut 500 A | Qcut 600 A/BOT | Qcut 800 A |
Direct mounting via T-slot nut | ✓ | ✓ | ✓ | ✓ |

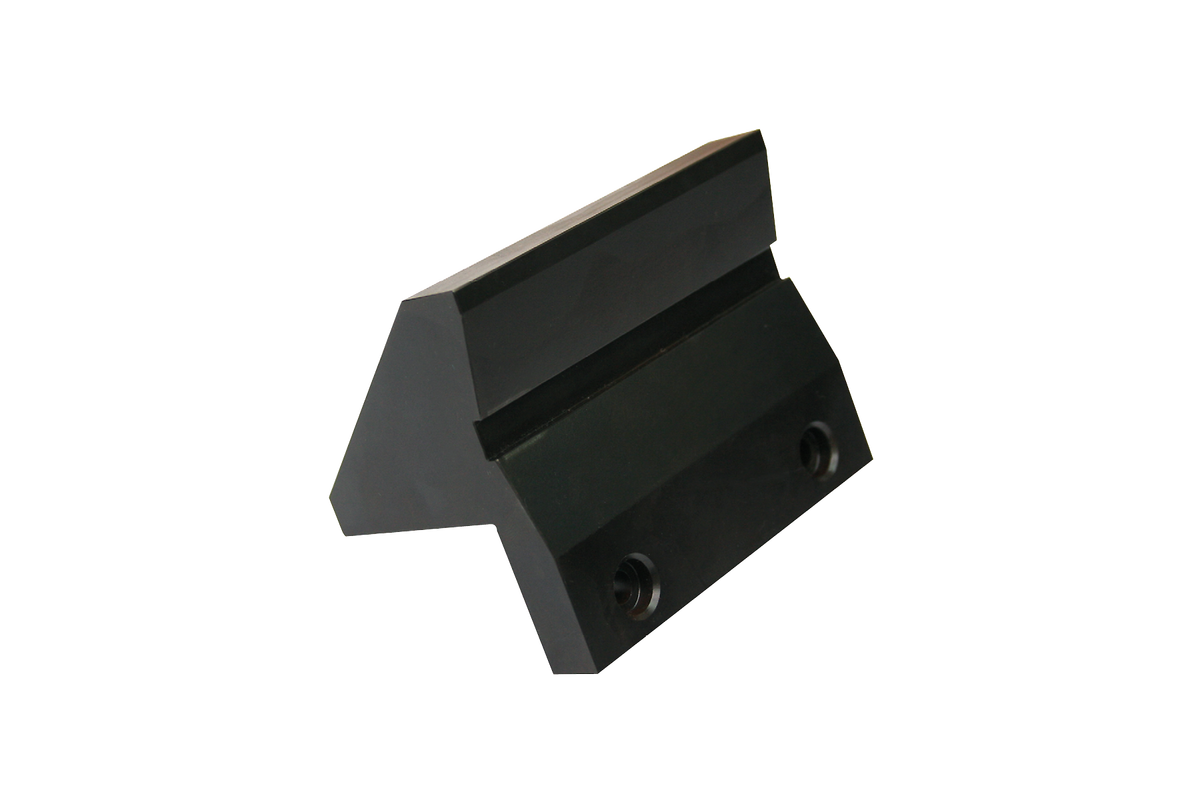

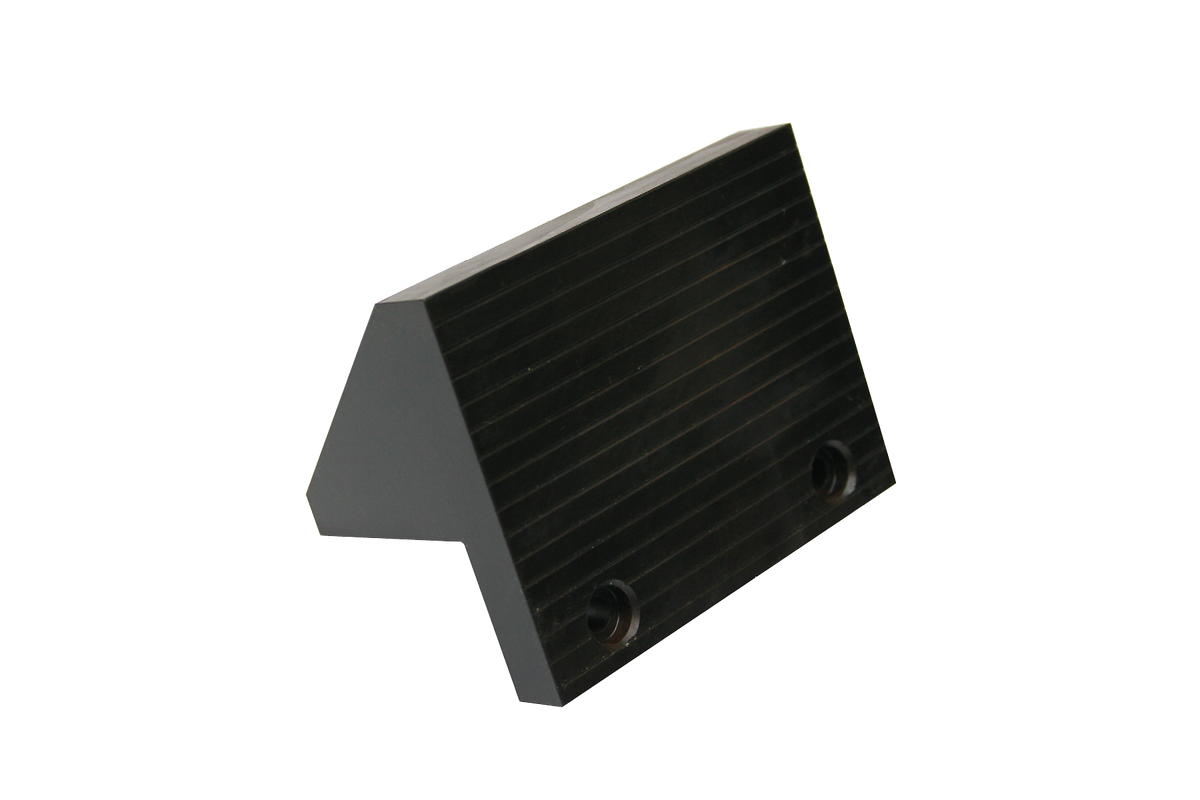

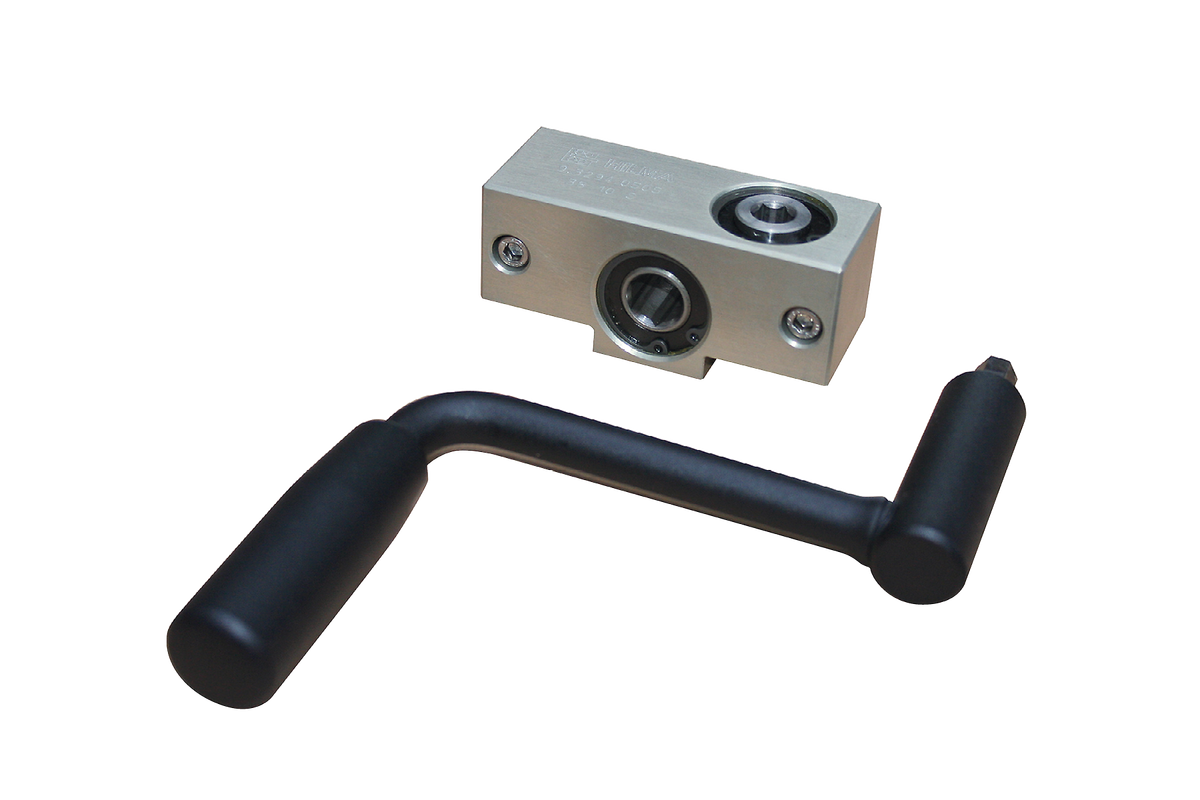

With the accessories, the power clamp can be individually modified to suit the components to be cut and the clamping situation.
Clamping range | Jaw width | Jaw height | Clamping force | |
Universal power clamping system LC 90 | 0 - 217 mm | 100 mm | 70 mm | 25 kN |
Compatible with cut-off machine | Qcut 400 A | Qcut 500 A | Qcut 600 A/BOT | Qcut 800 A |
Direct mounting via T-slot nut | ✓ | ✓ | ✓ | ✓ |

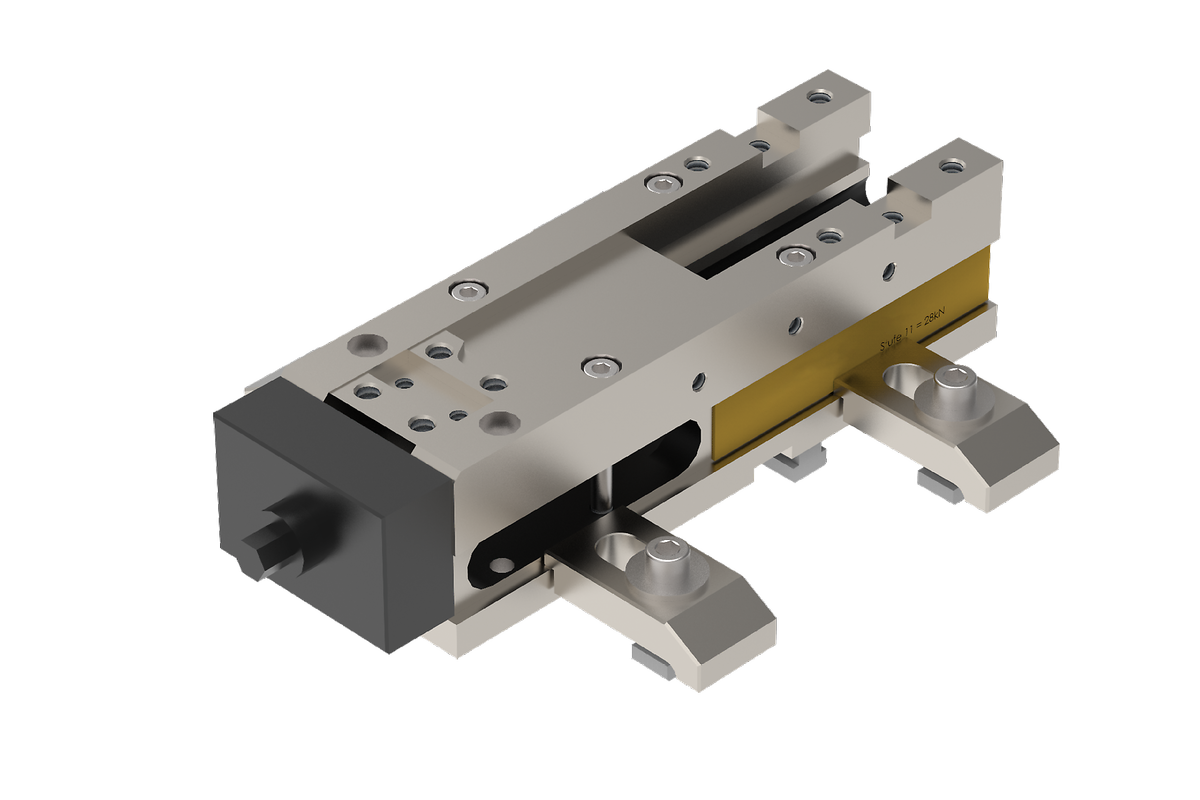

The LC 90 power clamp builds the basis of the clamping system. Depending on the application, it is supplemented with one of the following modules. It can be used to powerfully and securely clamp a wide range of irregularly shaped components
Wilt u meer weten over de verschillende procedures, bezoek dan onze uitgebreide Knowledge Base.
Ons Knowledge Base artikel over doorslijpen bevat:
Onder voorbehoud van technische wijzigingen en eventuele fouten
