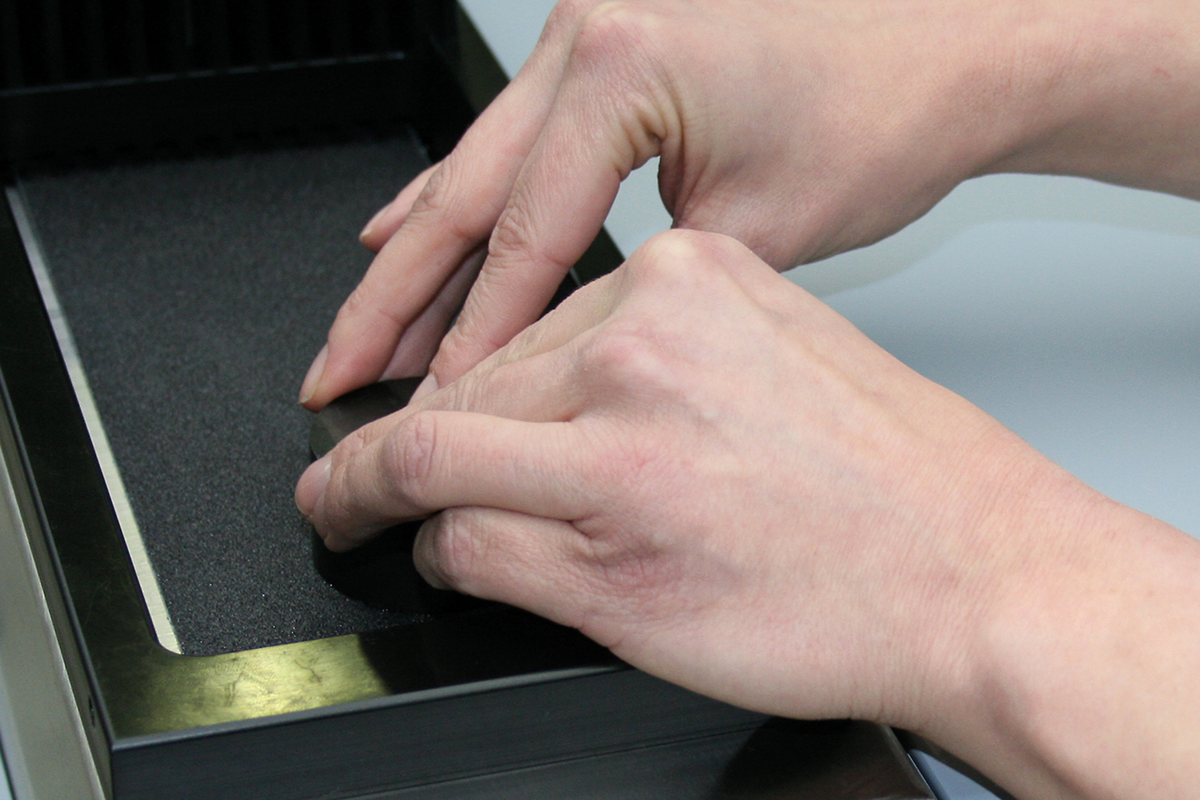

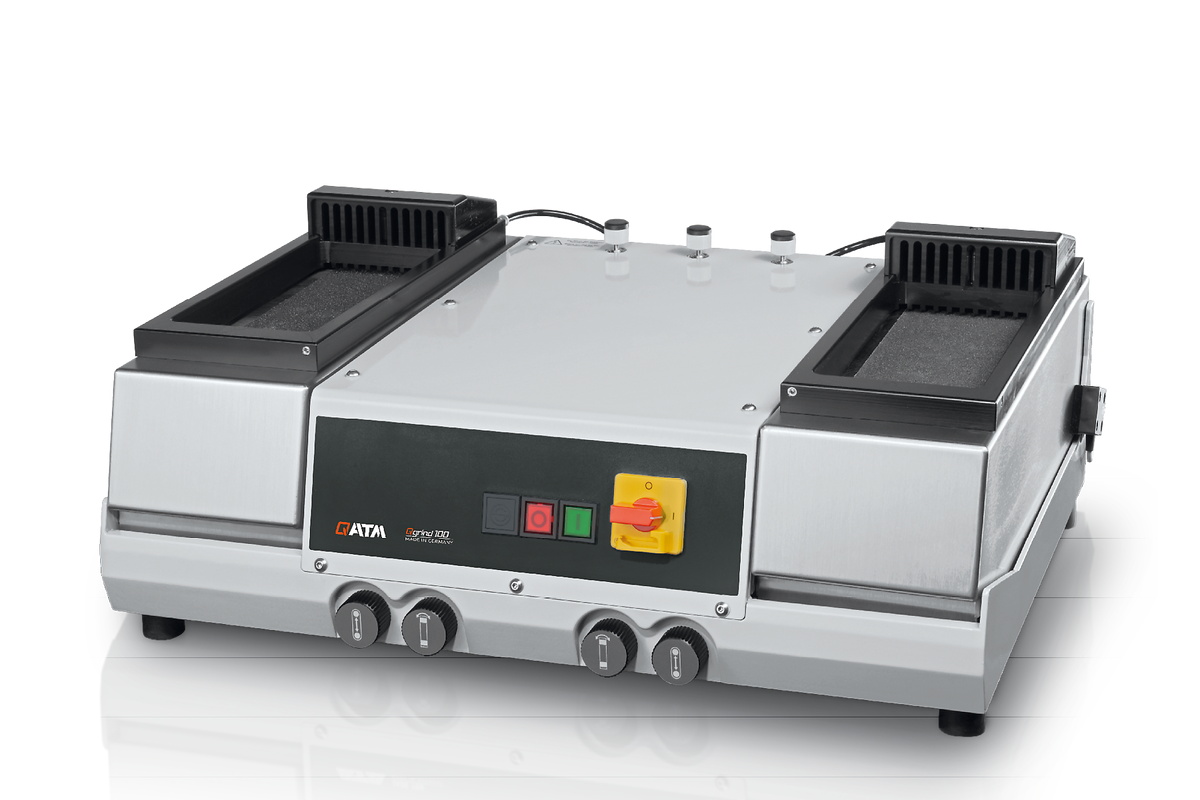

De Qgrind 100 is een stabiele dubbele bandslijpmachine voor het ontbramen en voorslijpen van samples of andere materialen.
Het is mogelijk om gelijktijdig banden met 2 verschillende korrelgroottes te gebruiken. Het geproduceerde afvalmateriaal wordt afgevoerd door de watertoevoer.

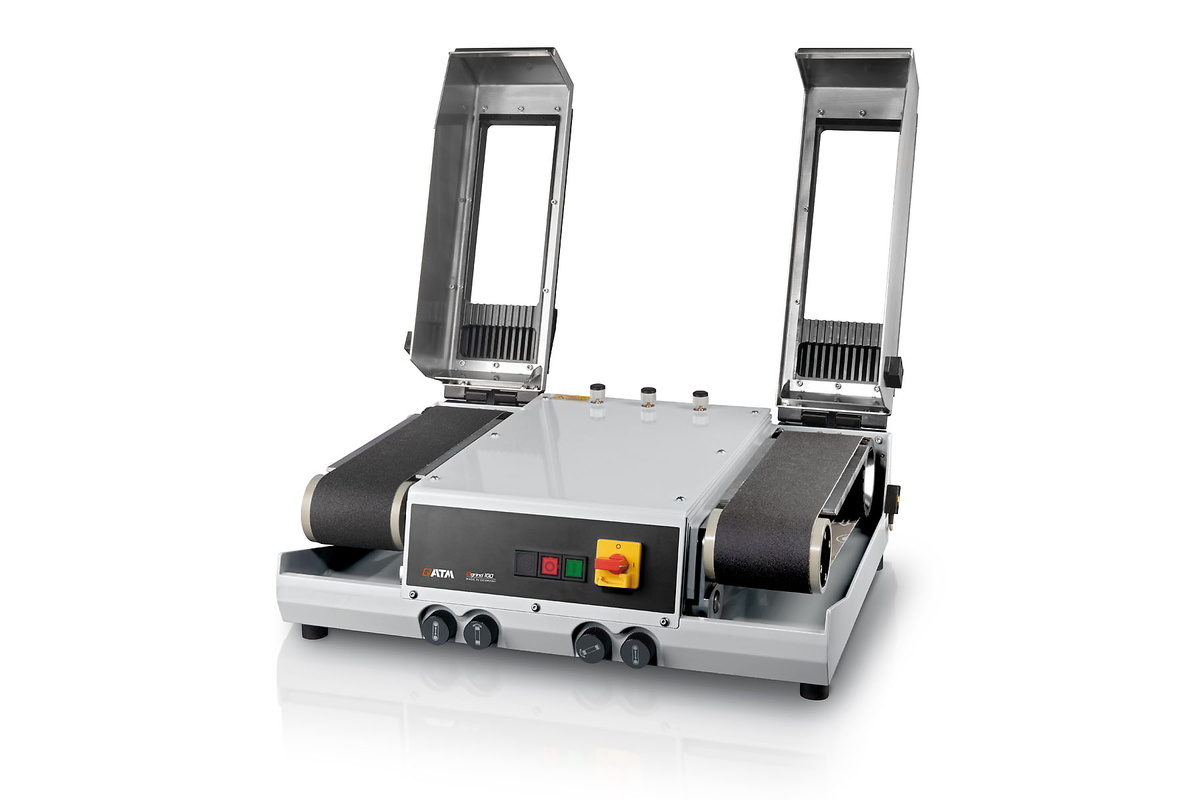

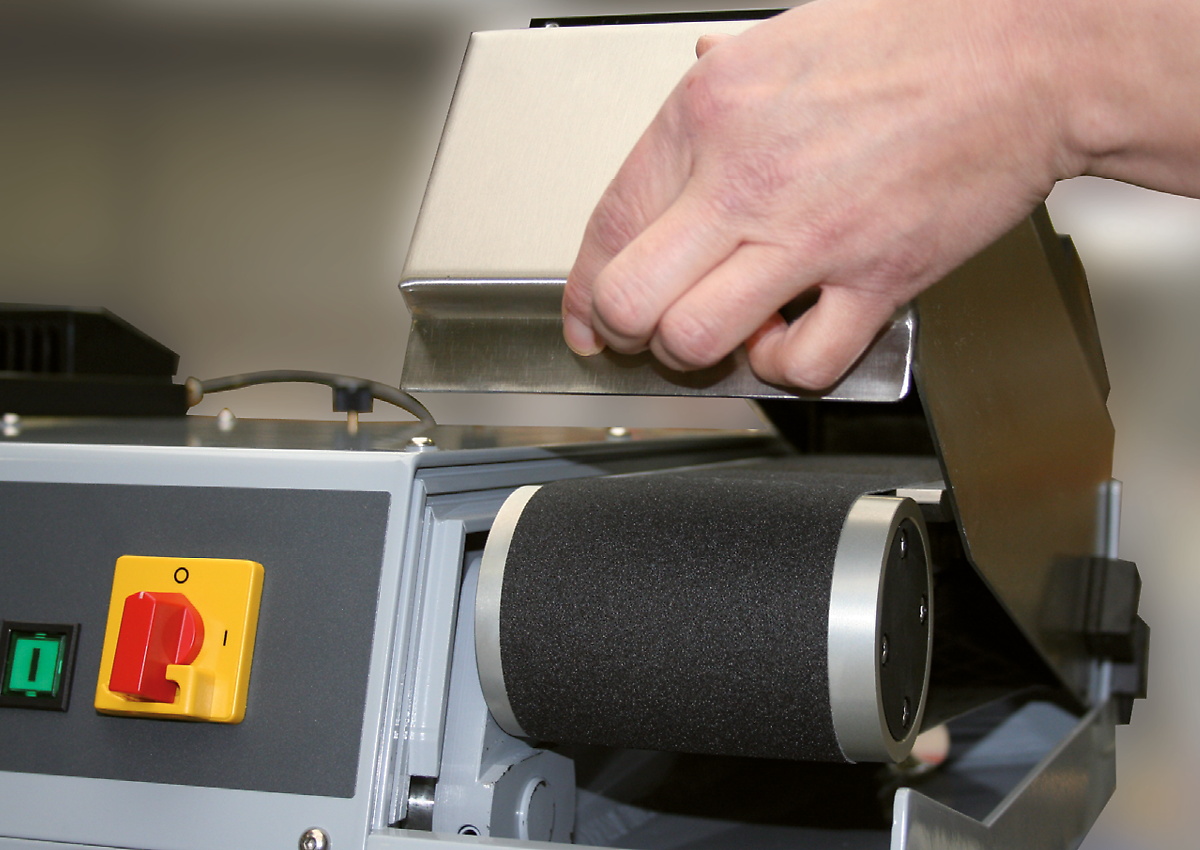

Both shroud covers are made of stainless steel and are simply opened backwards. This allows free access to the individual belts. Rotate the front tension wheel to loosen the belt which can then be removed from the side. Similarly, by rotating the adjustment wheel, the new belt can be centred onto the middle of the working surface.
A water film is created over the whole width of the front end of the belt. Waste material generated is carried to the back with the water and both are drained-off into the machine. Drain-offs are separated, one to the left, one to the right

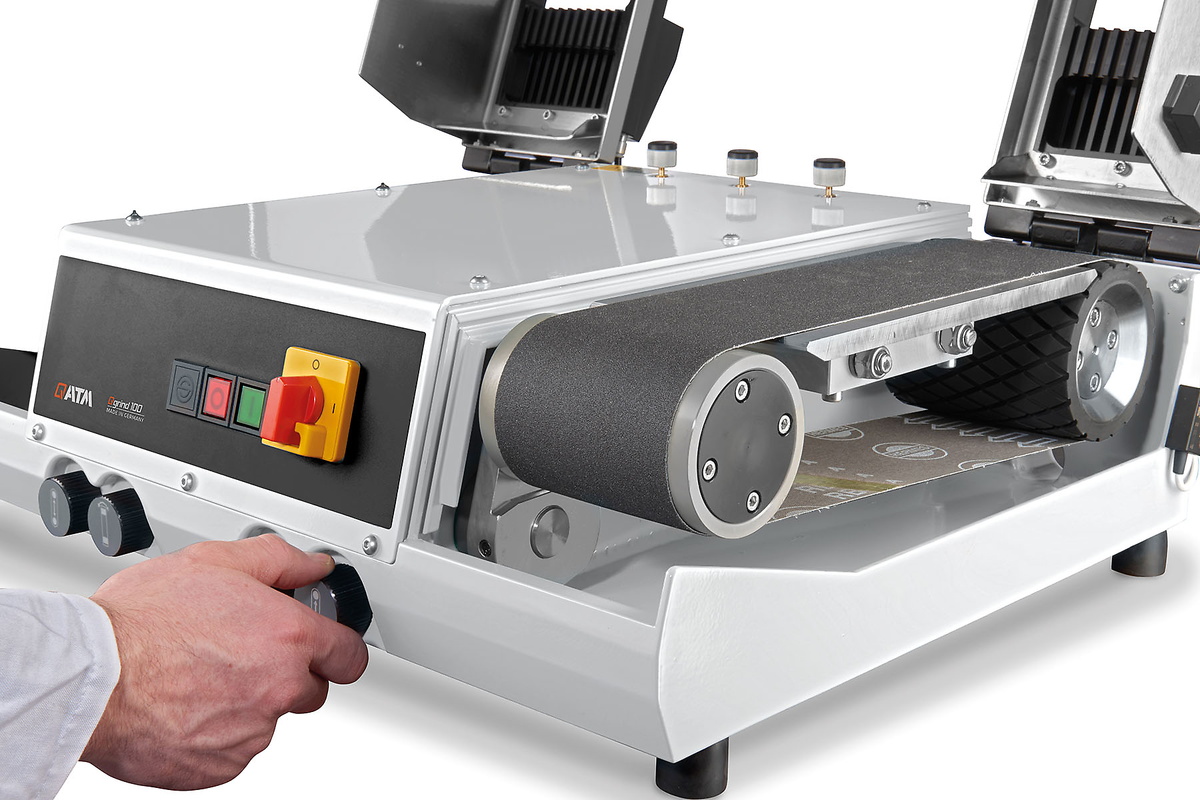

A powerful motor drives both belts at the same time. The rubber coated drive wheels, which are fitted with a special tread, prevent the belt from slipping.
Grinding is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
| Grinding belts | endless grinding belts 100 x 920 / 100 x 915 mm |
| Belt speed | 7 m/ sec |
| Water connectie | 1x fresh water connection R½" max. 6 bars |
| Water uitlaat | right and left, ø 40 mm |
| Water valve | right and left |
| Aansluitvermogen | 1.4 kVA |
| Vermogen aanfrijving (hoofdaandrijving) | 0.75 kW S6/60% |
| B x H x D | 630 x 250 x520 mm |
| Gewicht | ~ 55 kg |
Onder voorbehoud van technische wijzigingen en eventuele fouten
