Slijp- en polijstmachine Qpol 250 M1 / M2

Offerte-aanvraag
Gegevensblad

Taal:

The Qpol 250 M1 and Qpol 250 M2 are manual, single-wheel and double-wheel grinding and polishing machines for working wheels Ø 200/250 mm.

The start / stop button with illuminated status display and the rotary switch with scale and integrated boost button allow for intuitive operation. A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds and then turns off the device.

The particularly strong, speed-controlled drive makes this model suitable for all preparation steps and materials. In addition, the working disc can be operated in clockwise / counter-clockwise rotation. The impact-resistant plastic bowl, the powder-coated aluminium housing and the high-quality components inside the device are the basis for smooth running and best preparation results.

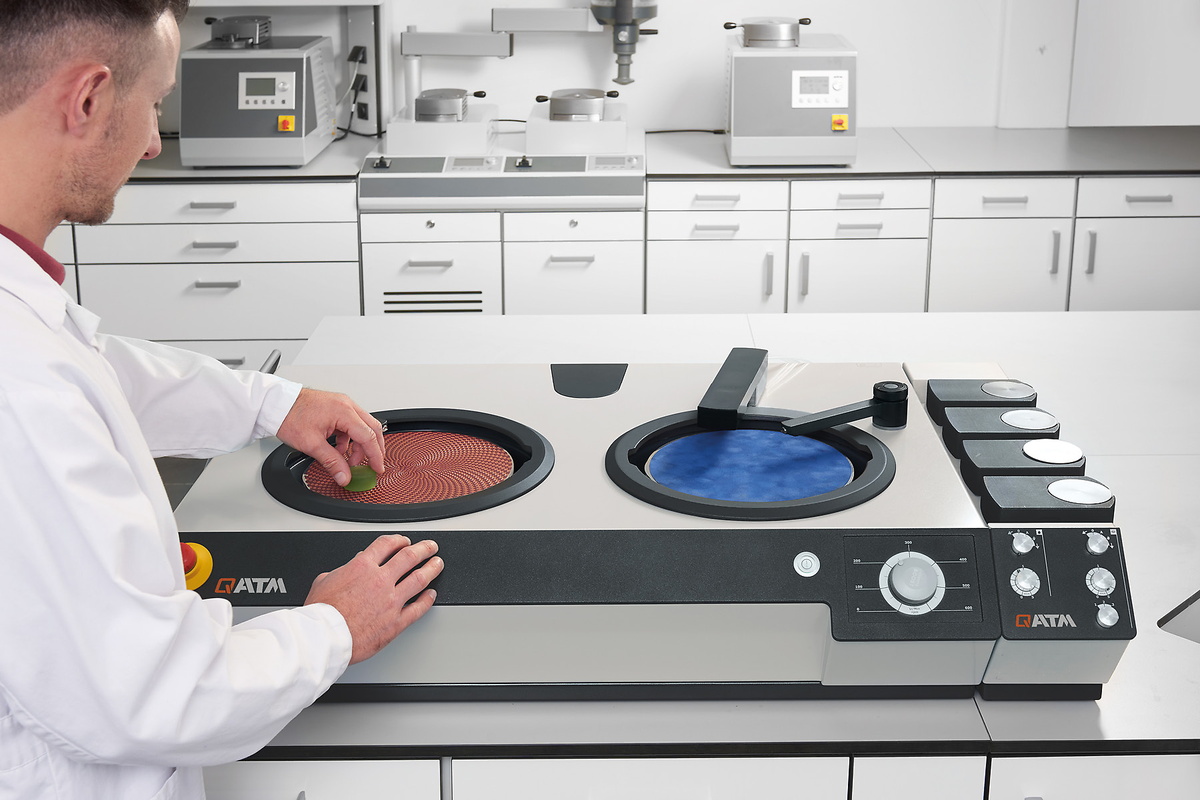

The robust device can be combined with the manual dosing system Qdoser GO or Qdoser ONE and thus offers a high degree of flexibility for sample preparation and operating convenience.

Productvoordelen

  • Robust and durable: Powerful drives, impact-resistant plastic trough and powder-coated aluminum housing
  • Flexibility: Single-spindle (M1) or twin-spindle (M2) machine variant with adjustable direction of rotation
  • Simple operation: large rotary knob for setting the speed
  • Convenient cleaning: Cleaning boost function and easily accessible sanding trough
  • Automation: Can be retrofitted with Qpol GO polishing head and Qdoser GO dosing system

Slijp- en polijstmachine Qpol 250 M1 / M2 Overtuigende voordelen

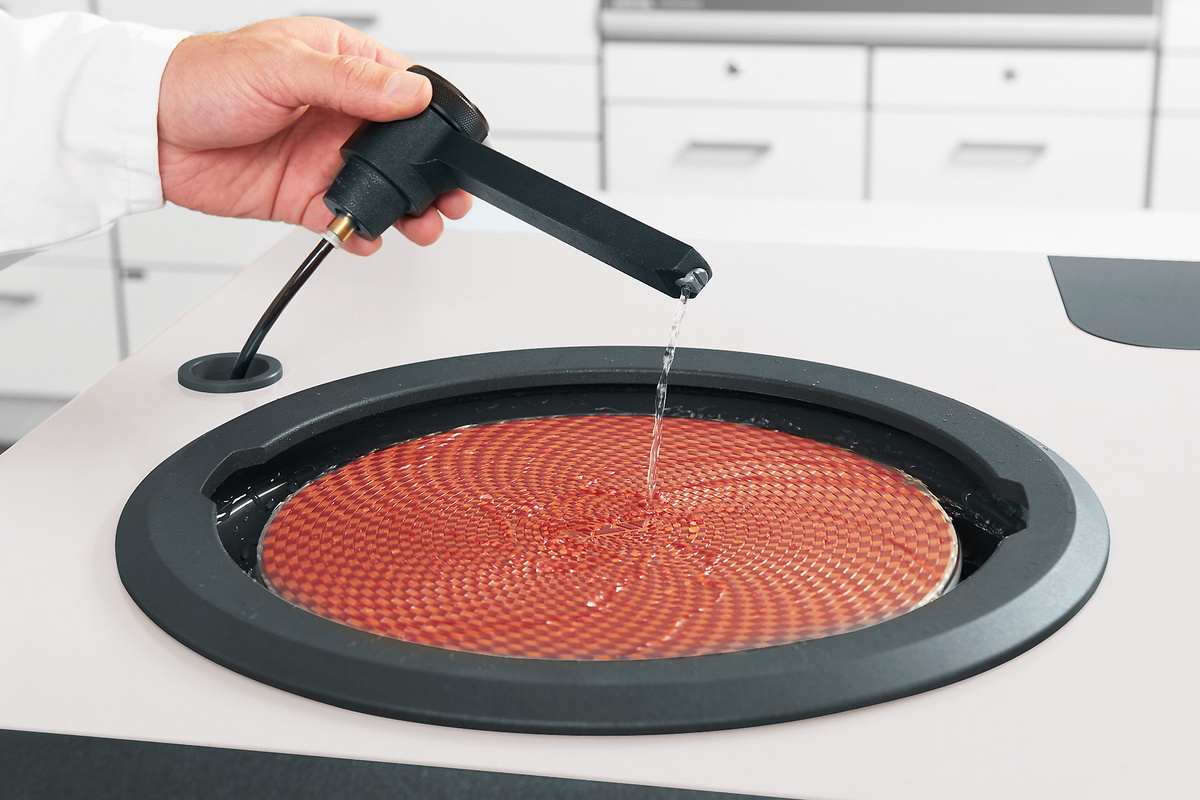

Robust pullout water hose

Robust pullout water hose

The pull-out flexible hose extension allows the tap to be used for cleaning the entire working area and the basin. It can be conveniently operated with one hand.

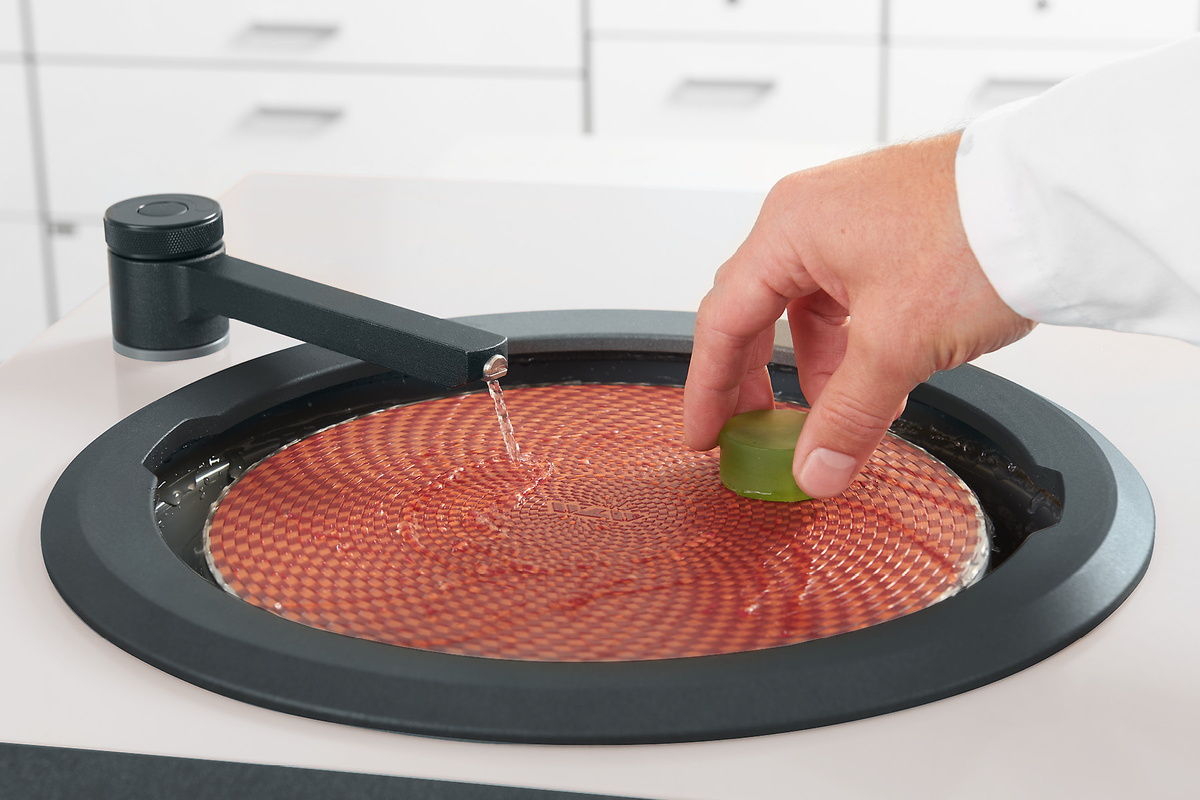

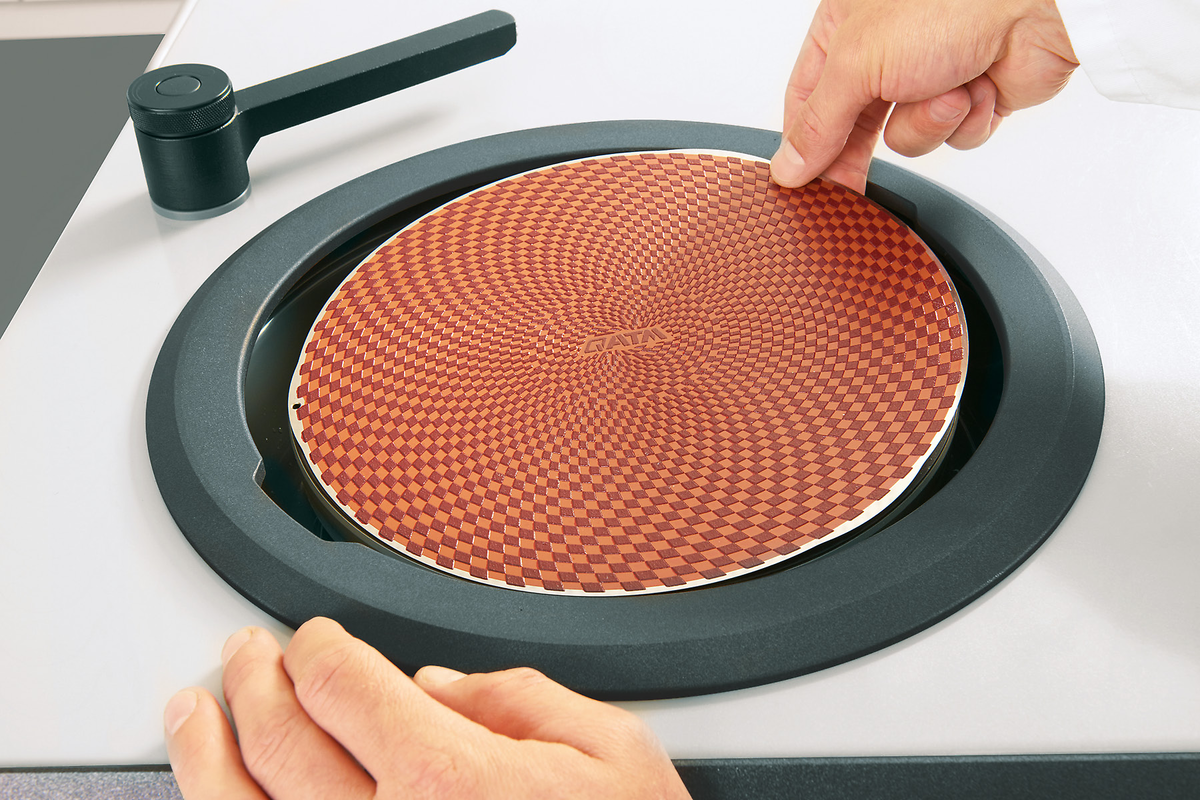

Ergonomically shaped splash guard ring

Ergonomically shaped splash guard ring

The ergonomically shaped splash guard ring significantly reduces splashing. It may also be used as a hand rest for longer preparations. The recessed grips allow the grinding and polishing medium to be changed while the ring is still attached. The modified working wheel, the generously designed basin and a loosely fitted splash guard ring ensure a high degree of operator safety.

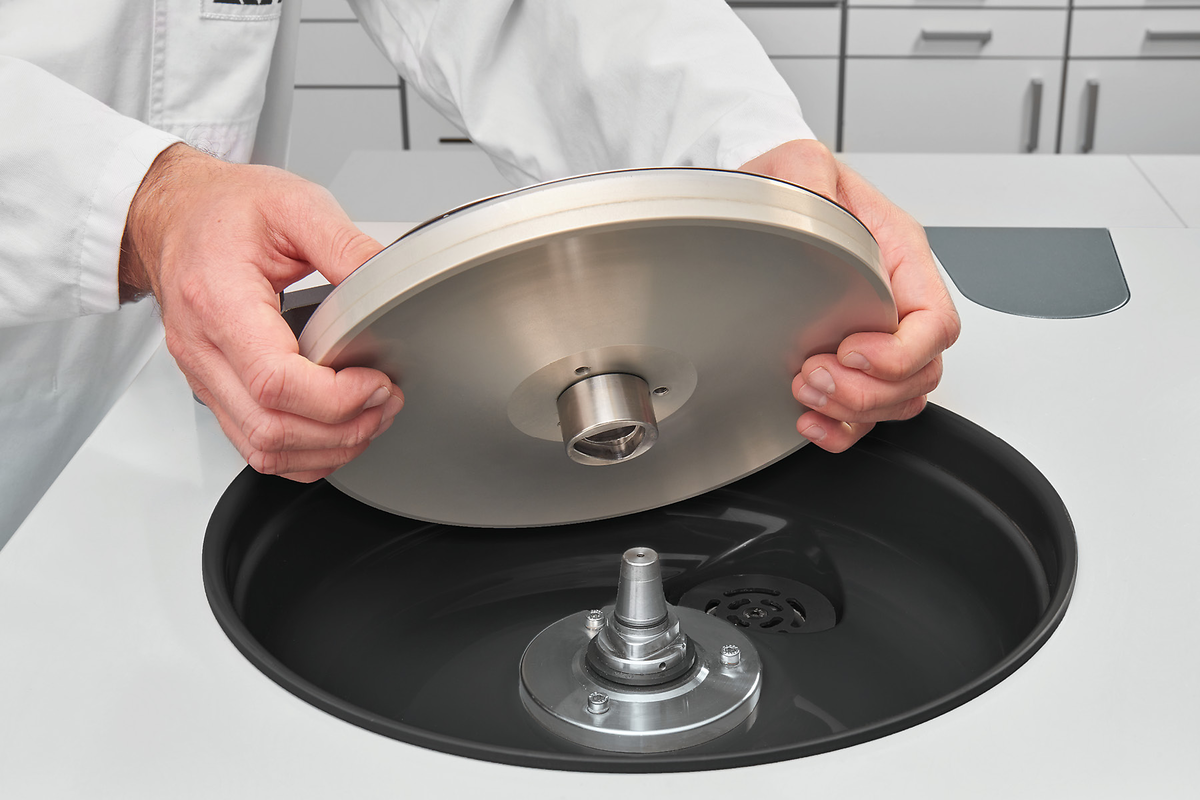

Single disc design

Single disc design

Thanks to the innovative mounting system, it locks itself automatically. After lifting it off, all parts underneath are readily accessible for easy and time-saving cleaning of the machine.

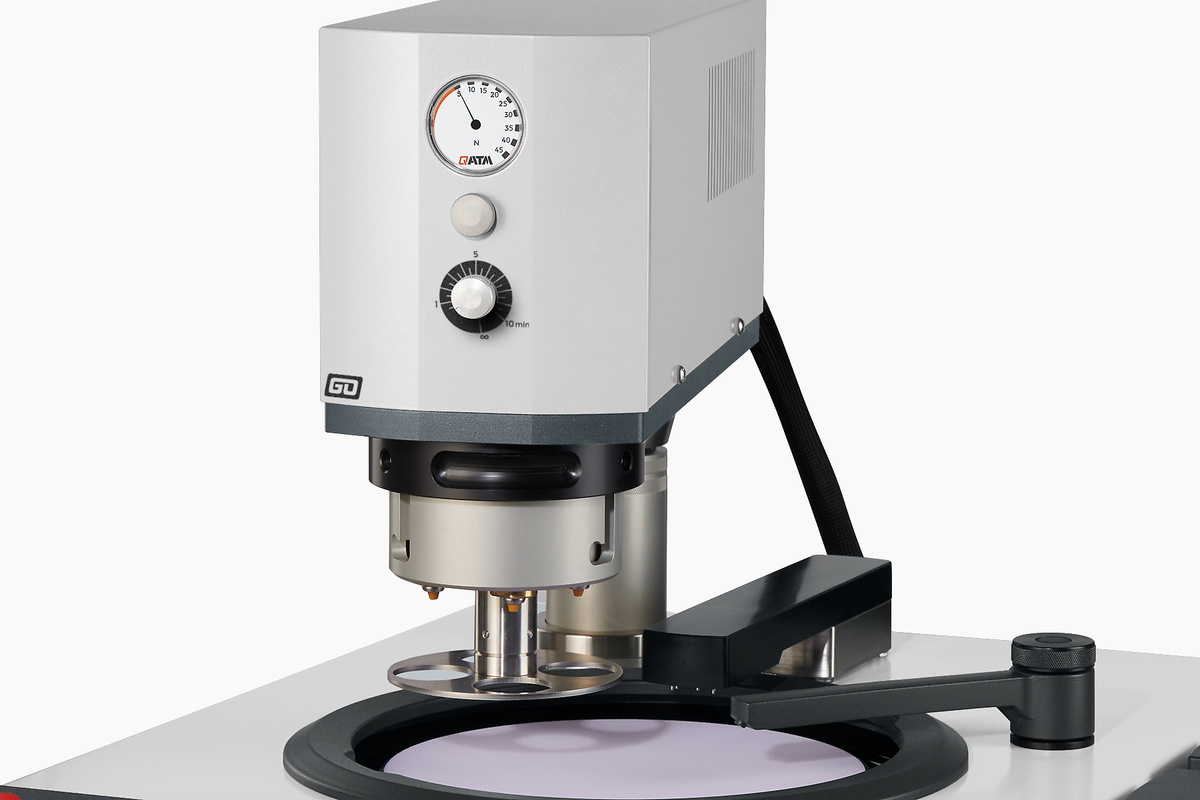

Optional grinding/polishing head Qpol Go

Optional grinding/polishing head Qpol Go

The perfect solution for automated sample preparation. The Qpol 250 M machines can be equipped with the optional Qpol Go grinding/polishing head.

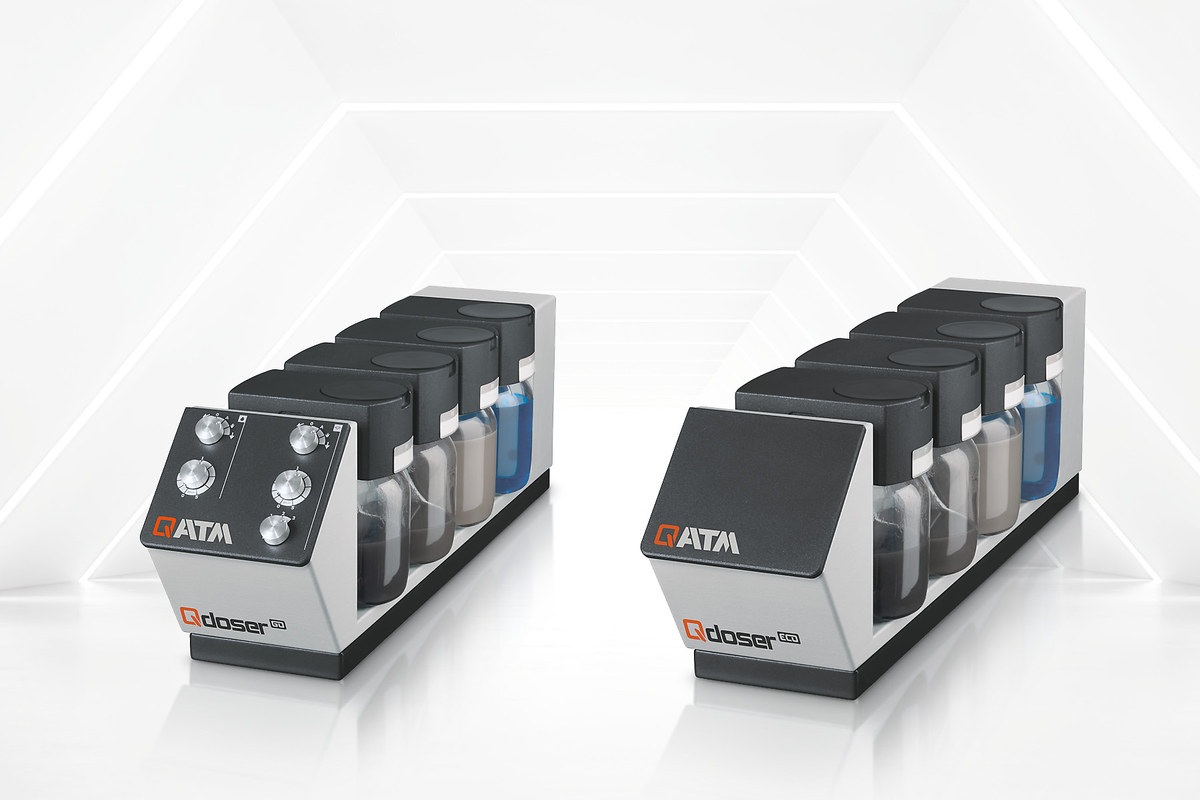

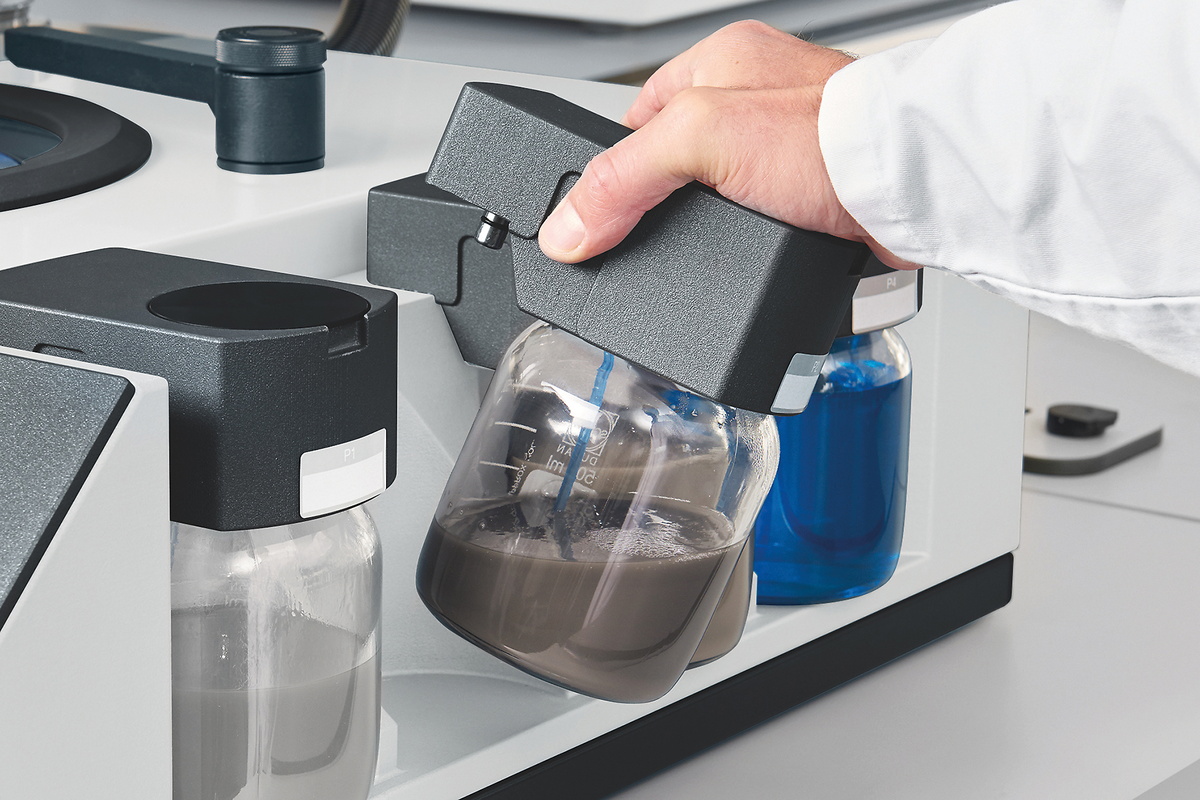

Optional dosing unit Qdoser Go and Qdoser One

Optional dosing unit Qdoser Go and Qdoser One

The manual grinders and polishers can be combined with the automatic dosing system Qdoser Go or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.

Dry in the blink of an eye Boost function

At the end of the preparation procedure, the boost function may be activated to discharge any liquid left on the grinding and polishing medium in 3 seconds at 750 rpm.

Perfect grinding and polishing – Consumables by QATM

Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

Slijp- en polijstmachine Qpol 250 M1 / M2 Technische Gegevens

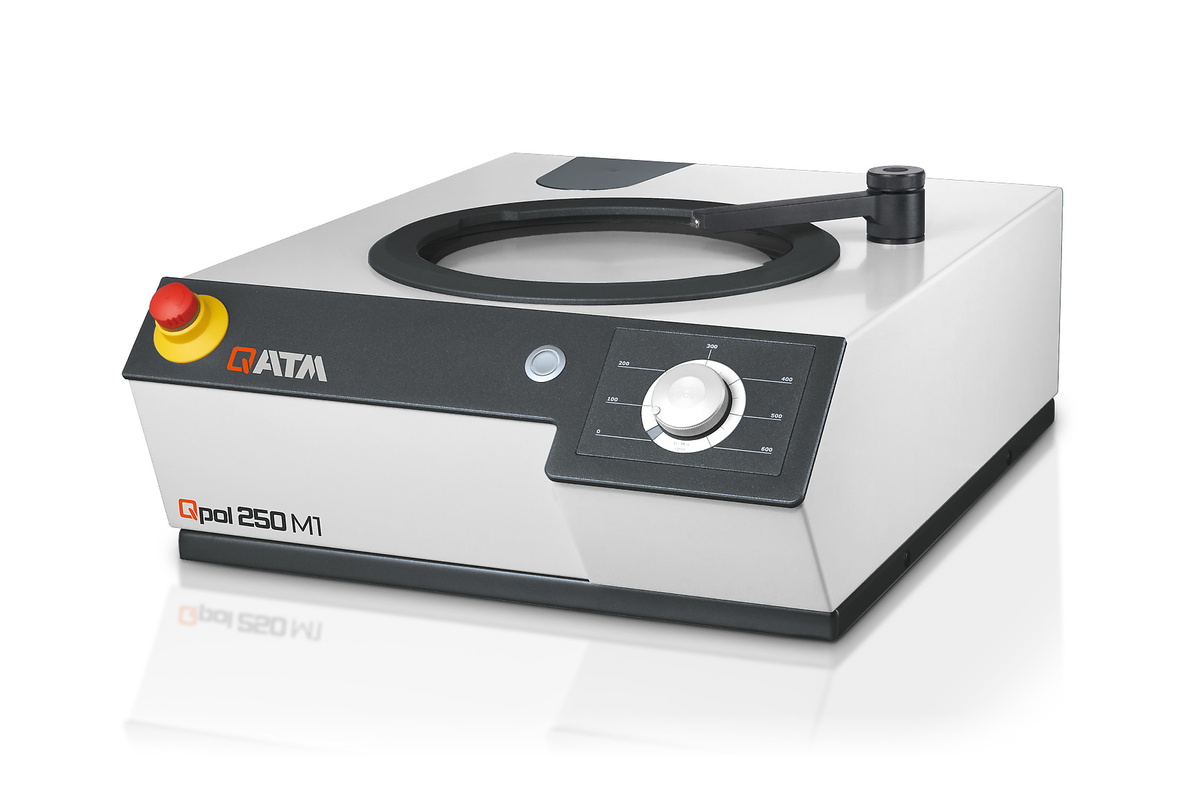

Slijp- en polijstmachine Qpol 250 M1

Draaischijvenø 200/250 mm
Snelheid30 - 600 rpm, traploos instelbaar
Aansluitvermogen1.0 kVA
Vermogen aanfrijving (hoofdaandrijving)0.55 kW (S1)
B x H x D511 x 265 x 710 mm
Gewicht~ 25 - 30 kg
Water connectie1x fresh water connection R½" max. 6 bars
Doseersysteem (optie)Qdoser GO or Qdoser ONE

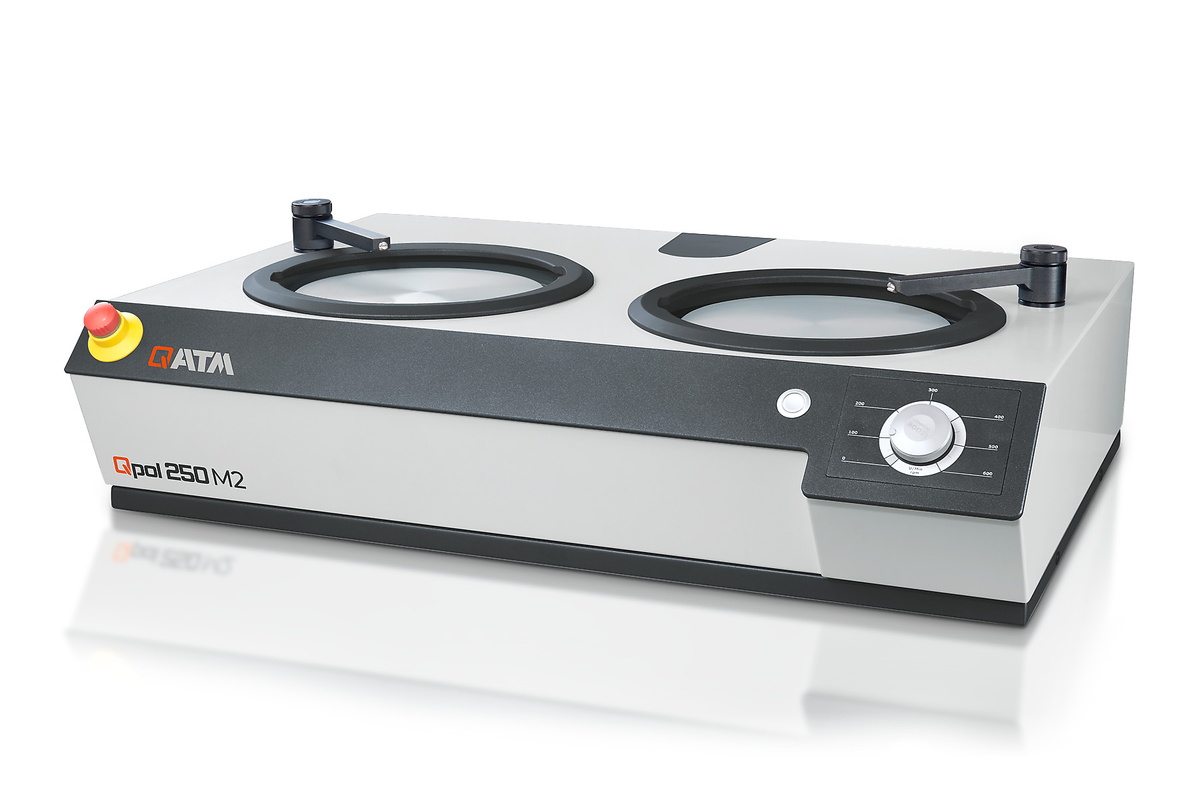

Slijp- en polijstmachine Qpol 250 M2

Draaischijvenø 200/250 mm
Snelheid30 - 600 rpm, traploos instelbaar
Aansluitvermogen1.0 kVA
Vermogen aanfrijving (hoofdaandrijving)0.55 kW (S1)
B x H x D901 x 265 x 710 mm
Gewicht~ 45 - 49 kg
Water connectie1x fresh water connection R½" max. 6 bars
Doseersysteem (optie)Qdoser GO or Qdoser ONE

Onder voorbehoud van technische wijzigingen en eventuele fouten
