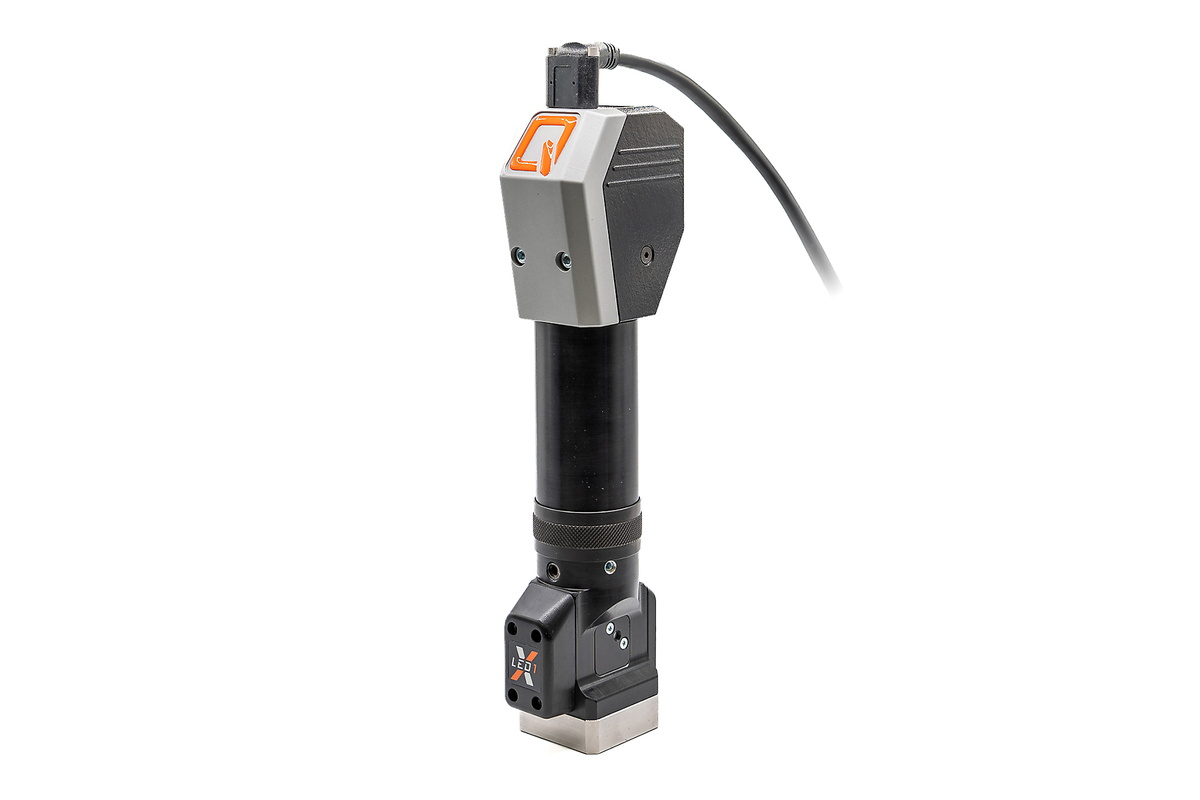

Mobile Image Evaluation Qmobile EVO Efficient & Precise One-Click Evaluation

Quick and easy Brinell hardness determination of existing indentations.

The Qmobile EVO is a mobile image evaluation unit, allowing for standard-compliant, portable Brinell evaluations in accordance with DIN EN ISO 6506 and ASTM E-10.

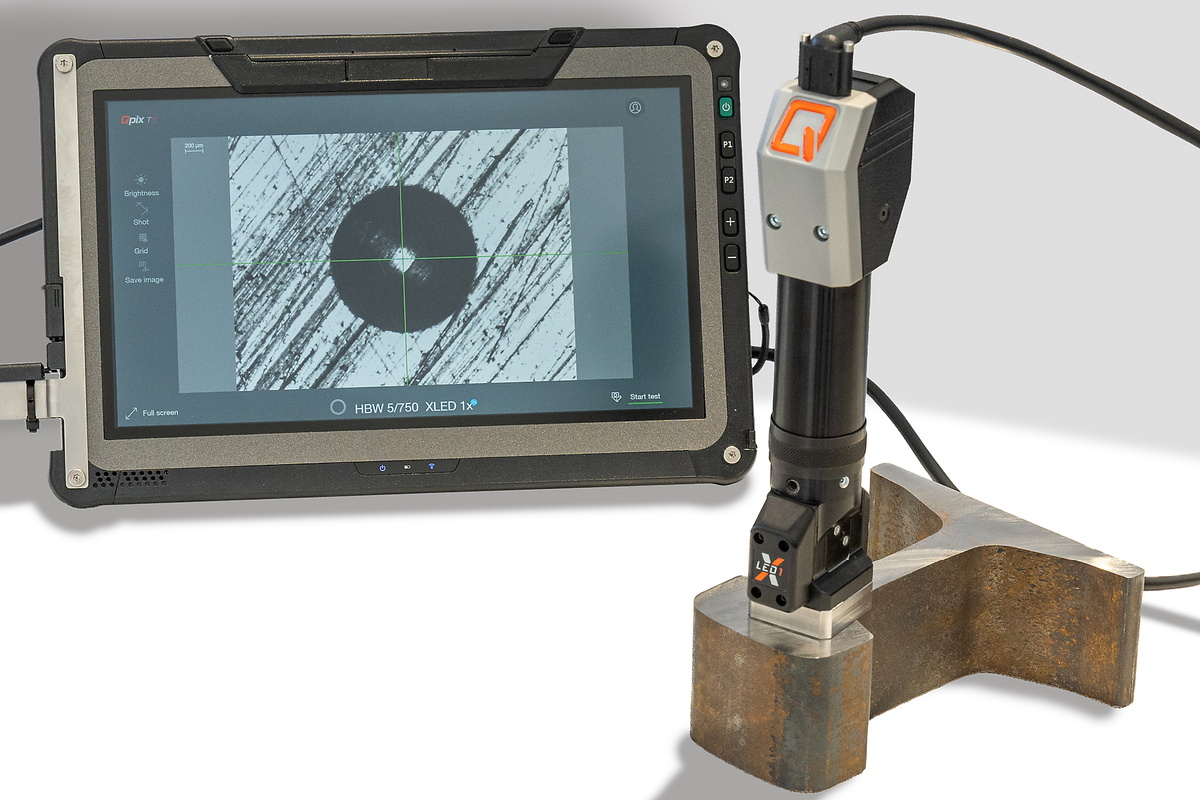

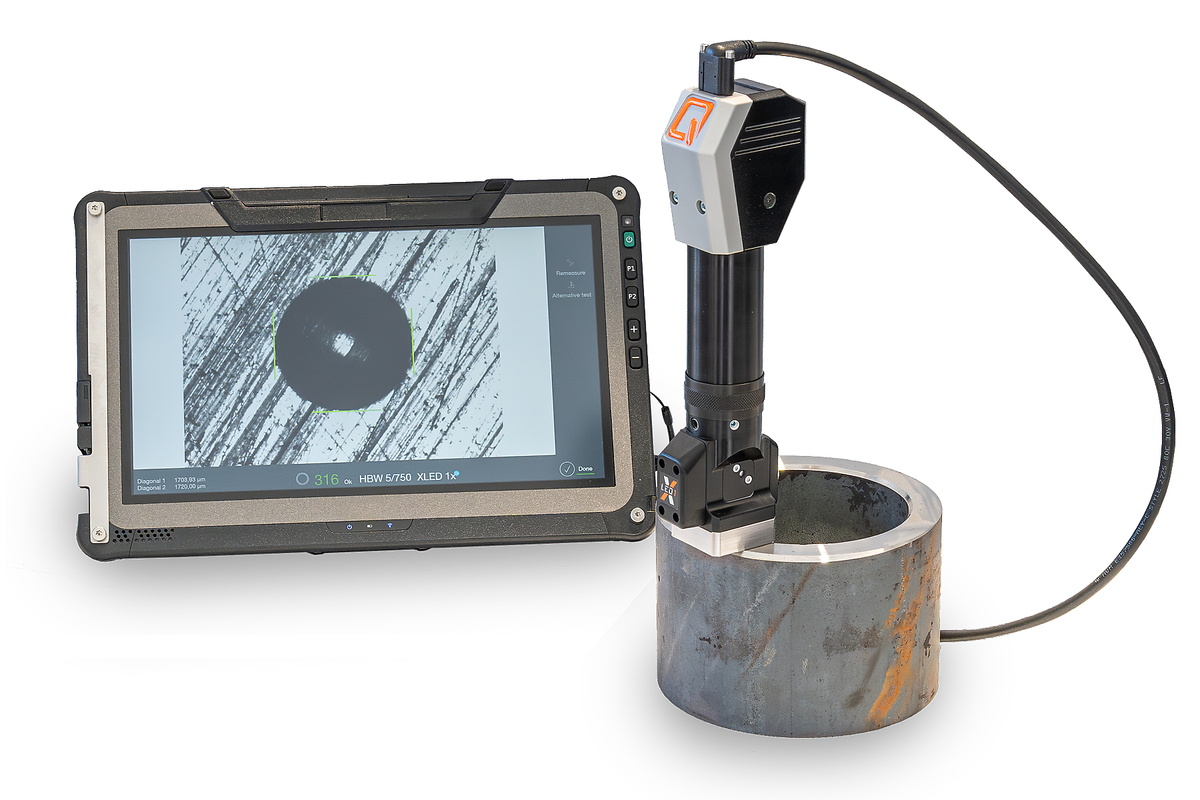

The user-friendly Qpix T2 software runs on an industrial tablet and enables testing directly in the field for fast data acquisition and excellent quality control.

For Portable Evaluation of Brinell Hardness Testing Indentations

Consignment includes case
Ultra-modern technology
Image evaluation via built-in microscope with direct light module

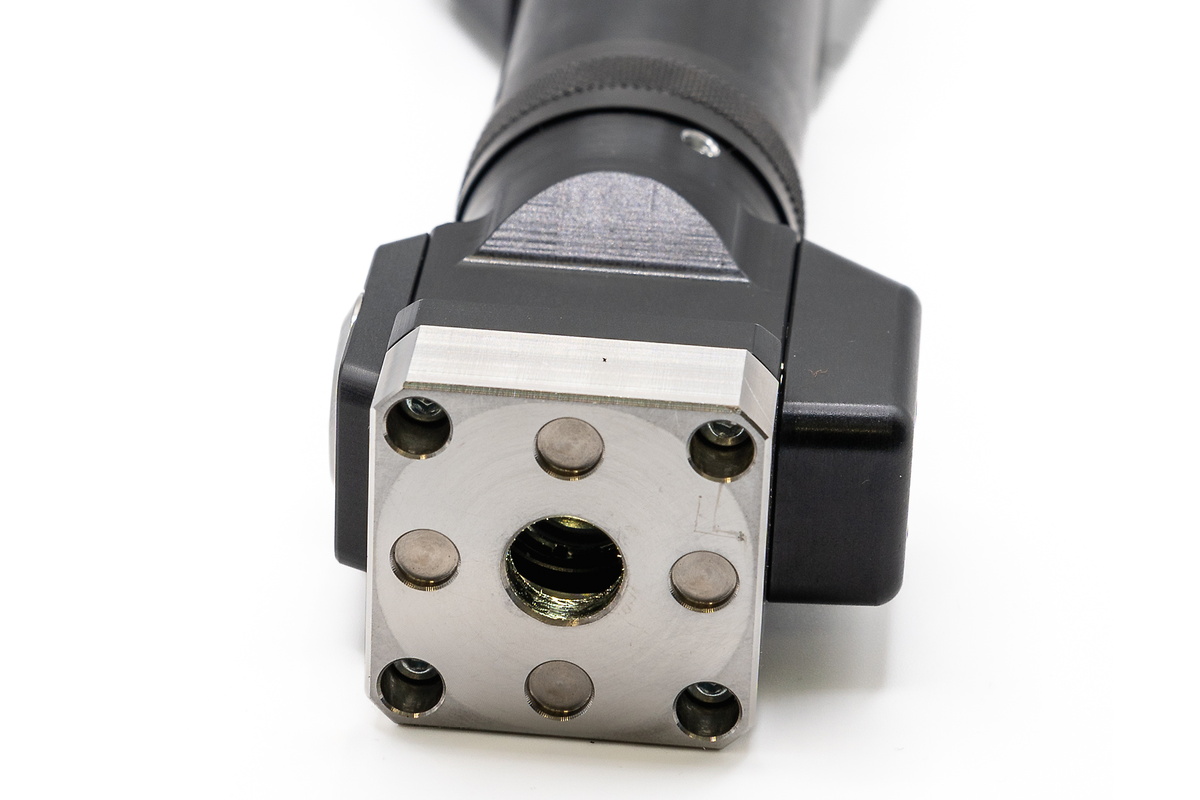

Replaceable head for customer-determined applications
Innovative QATM controls – Qpix T12
Industry compatible tablet PC
Data output via interfaces (USB 2.0)
Ergonomic system design

Mobile Image Evaluation Qmobile EVO Kenmerken

^{Standard evaluation}

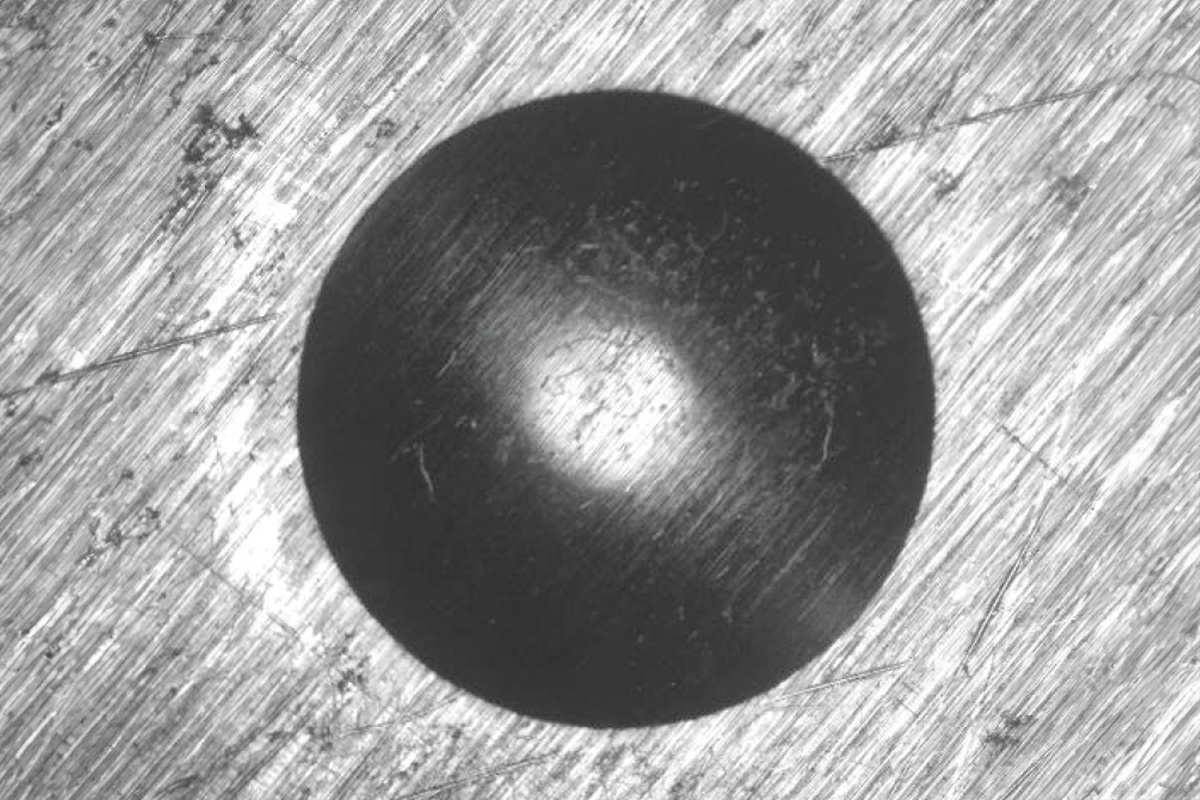

^{Evaluation with Brinell XLED technology}

^{Replaceable support}

^{Indirect calibration using a hardness test block}

Mobile Image Evaluation Qmobile EVO Technische Gegevens

Hardness test evaluation	Brinell: HBW 10/3000, HBW 5/750, HBW 2.5/187.5
Gezichtsveld	7.9 x 5.9 mm
Camera	5 Megapixel
Interfaces	1 x USB 3.0
Weight of Qmobile EVO	0.7 kg
Tablet screen	11.6”
Opties	Operation via external PC
